Features and Benefits:
- 180 lb. Capacity
- Offset Design with roller arms making it easy to position the wheel to line up with lug bolts
- 3″ Poly Casters

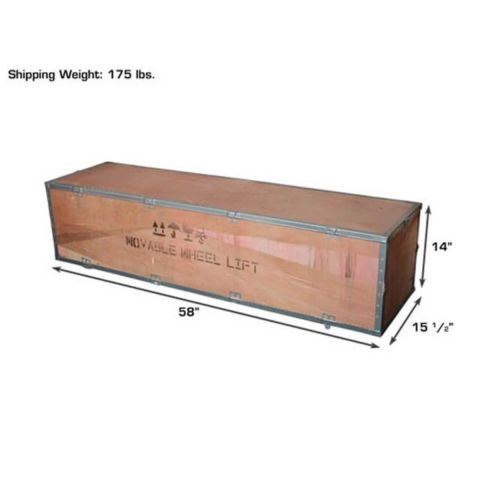

- Shipping Dimensions: 58″ x 14″ x 15 1/2″
- Shipping Weight: 175 LBS.
- 90 Day Parts Only Warranty
Atlas AEZWL-2 Pneumatic Portable Wheel Lift Specifications
- Capacity: 180 LBS.

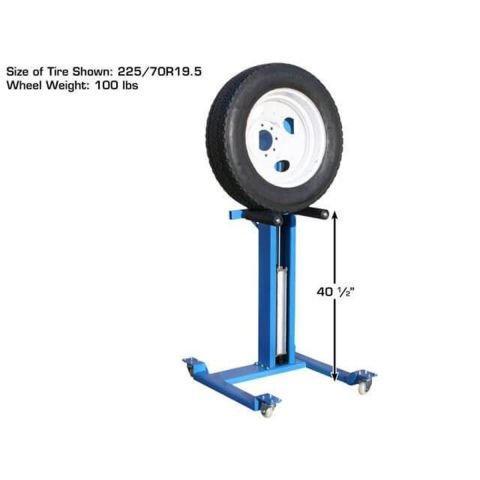

- Max. Lifting Height: 40 1/2″
- Min. Lifting Height: 5 1/2″
- Arm Length: 12″
- Distance Between Arms: 10″
- Overall Height: 67 3/4″
- Overall Width: 29″
- Overall Depth: 34 1/2″
- Required Air Pressure: 116-145 psi
- Shipping Weight: 175 LBS.
The Atlas Offset Pneumatic Portable Wheel Lift (AEZWL-2) is the perfect solution to prevent back injuries when lifting large wheel assemblies onto the shaft of a wheel balancer, onto a tire changer turntable, or even removing or installing tires on a car raised on a scissor or 2-Post lit. Today’s wheels and tires are getting bigger and heavier. Many wheels are expensive and can be easily scratched or damaged. The Atlas Offset air operated wheel lift will lift up to a 180 pound wheel easily and allow the operator to maneuver the wheel into the correct position without fear of wheel damage or back strain. The AEZWL-2’s smooth air operation requires only 116-145 PSI air pressure and the 4 swivel casters make it easy to move and position where needed.
