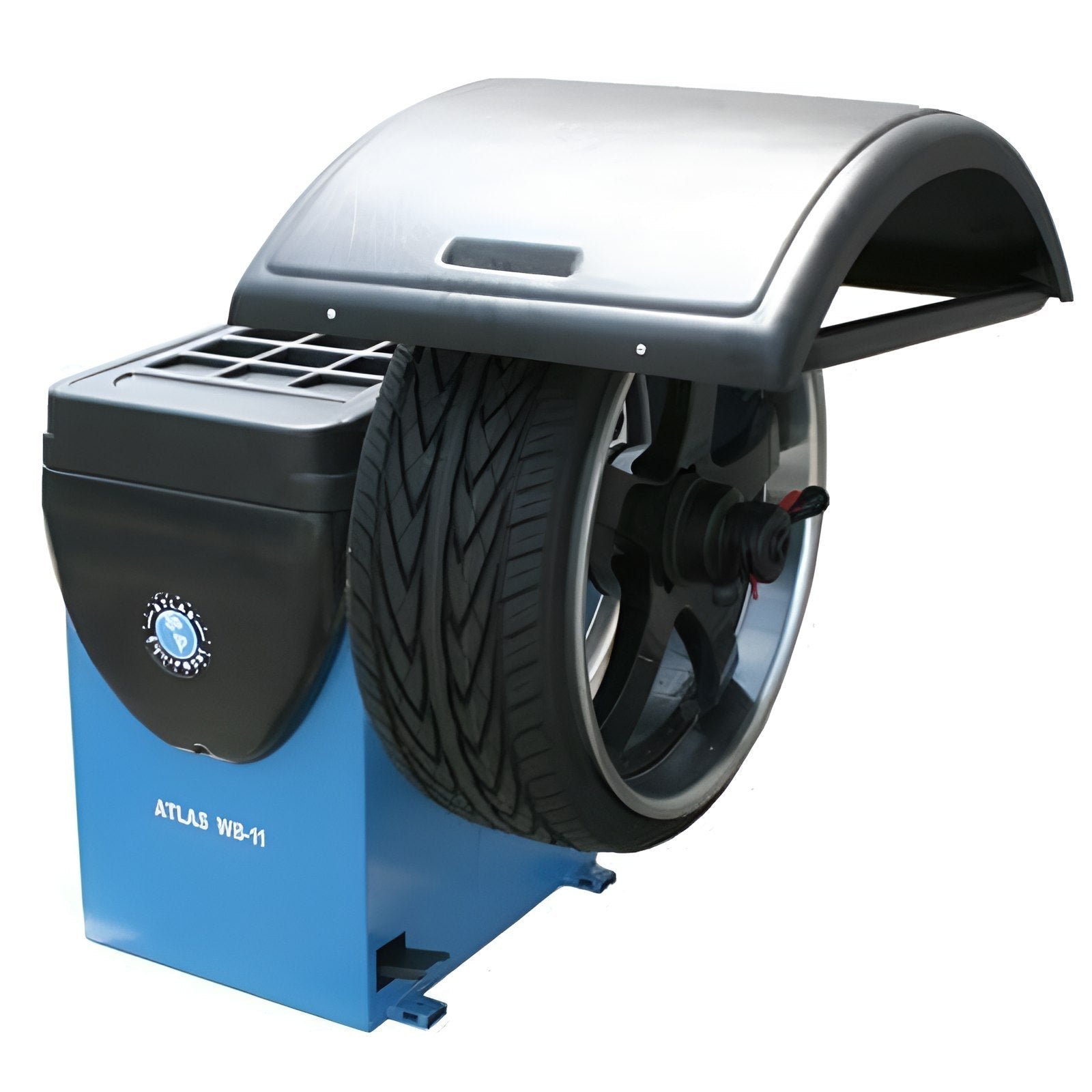

Atlas WB11 Computerized Wheel Balancer – 110V Motorized Spin Balancer

The Atlas WB11 Computerized Wheel Balancer is a professional motorized spin balancer designed for passenger-car and light-truck wheel service. Combining straightforward operation with computerized balancing technology, the WB11 is well suited for automotive repair shops, tire service centers, dealerships, farms, and home garages.

The WB11 supports wheels up to 39 inches in overall tire diameter, rims from 10 to 32 inches, and wheel assemblies weighing up to 150 lbs, providing versatility for a wide range of automotive applications.

Computer-Controlled Wheel Balancing

The WB11 uses a computer-controlled motorized spin system to identify wheel imbalance and guide the operator in proper wheel-weight placement.

It supports both static and dynamic balancing modes, allowing technicians to select the appropriate balancing method for different wheel applications.

Wheel dimensions are entered manually into the machine, while balancing results can be displayed in either grams or ounces and measurements in millimeters or inches.

Fast & Accurate Operation

With a balancing speed of approximately 150 RPM, the WB11 completes a balancing cycle in approximately 7 seconds.

The system provides balancing accuracy down to 1 gram with a weight-position resolution of 1.4 degrees, helping technicians achieve consistent balancing results.

Automatic Start & Stop

The WB11 features an automatic hood-operated start and stop system. Lowering the wheel guard starts the balancing cycle, while raising it stops operation.

An automatic and pedal-operated brake helps the technician position and secure the wheel during the balancing process.

Self-Diagnosis & Calibration

Built-in self-diagnosis and self-calibration functions simplify routine operation and maintenance.

The computerized system can display error codes when a problem is detected, helping operators identify potential issues without unnecessary troubleshooting.

Key Features

• Computer-controlled motorized spin wheel balancer

• Designed for passenger-car and light-truck wheels

• Static and dynamic balancing modes

• Rapid Optimization (OPT) function

• Automatic and pedal-operated brake

• Automatic start/stop with wheel guard

• Self-diagnosing system

• Self-calibrating design

• Manual wheel-dimension data entry

• Standard or metric measurements

• Displays weights in grams or ounces

• 1-gram balancing accuracy

• Approximately 7-second balancing cycle

• 150 RPM balancing speed

• Handles wheel assemblies up to 150 lbs

• 40 mm balancing shaft

• No anchor-down installation required

• 110V electrical operation

• 1-year parts-only warranty

Product Specifications

• Brand: Atlas Automotive Equipment

• Model: WB11

• Product Type: Computerized Motorized Spin Wheel Balancer

• Maximum Tire Diameter: 39 in.

• Rim Diameter Range: 10–32 in.

• Rim Width Range: 1.5–20 in.

• Maximum Wheel Weight: 150 lbs.

• Shaft Diameter: 40 mm

• Balancing Speed: 150 RPM

• Balancing Accuracy: 1 gram

• Weight Position Resolution: 1.4°

• Cycle Time: Approx. 7 Seconds

• Data Entry: Manual

• Measurements: Standard or Metric

• Self Calibration: Yes

• Motor: 1/4 HP

• Power Supply: 110V

• Shipping Weight: Approx. 355 lbs.

Included Accessories

• Plastic Quick-Release Nut

• 4 Centering Cones

• Wheel Weight Pliers

• Wheel Measuring Calipers

Optional Accessories

• Light Truck Adapter Kit

• Universal Lug-Centric Adapter

• Standard Motorcycle Adapter

• Large Motorcycle Adapter
