The Atlas TC229 Tire Changer with WB41 Wheel Balancer Combo 5 is a complete professional tire-service package designed for automotive repair shops, tire centers, farms, dealerships, home garages, and other vehicle service applications.
This package combines the Atlas TC229 Rim-Clamp Swing-Arm Tire Changer with the Atlas WB41 Computerized Spin Wheel Balancer, providing the equipment needed to remove, install, inflate, and balance a wide range of passenger-car and light-truck tires.
Both machines operate on 110V electrical power, making the combo convenient for shops with standard electrical service.

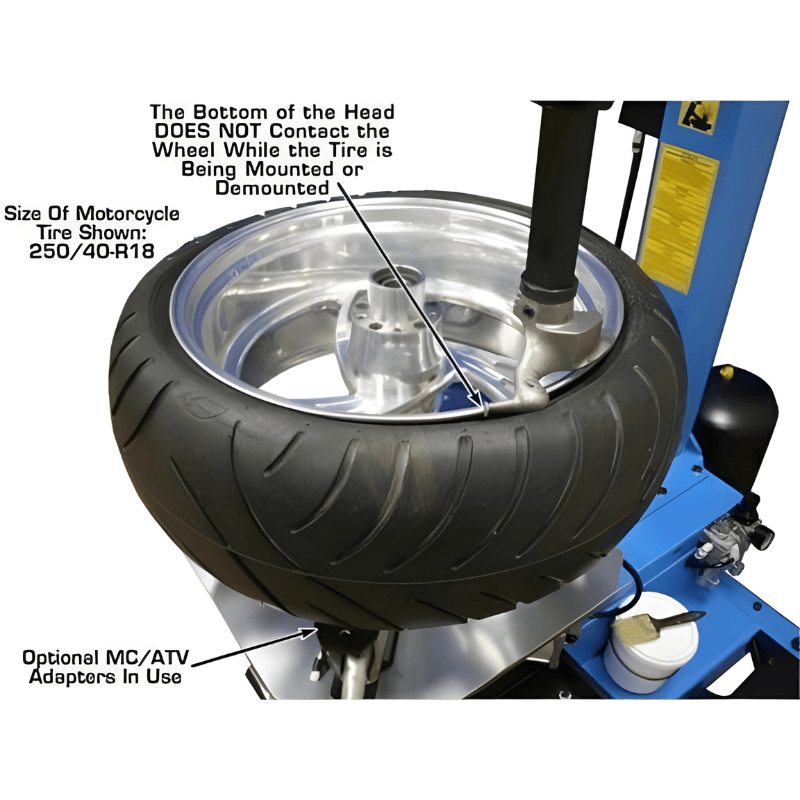

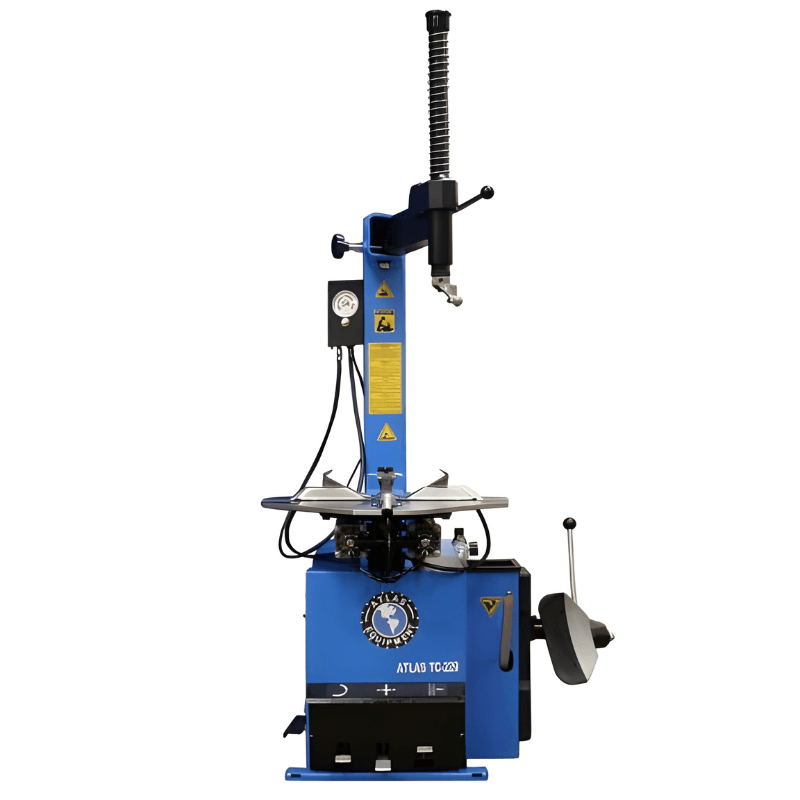

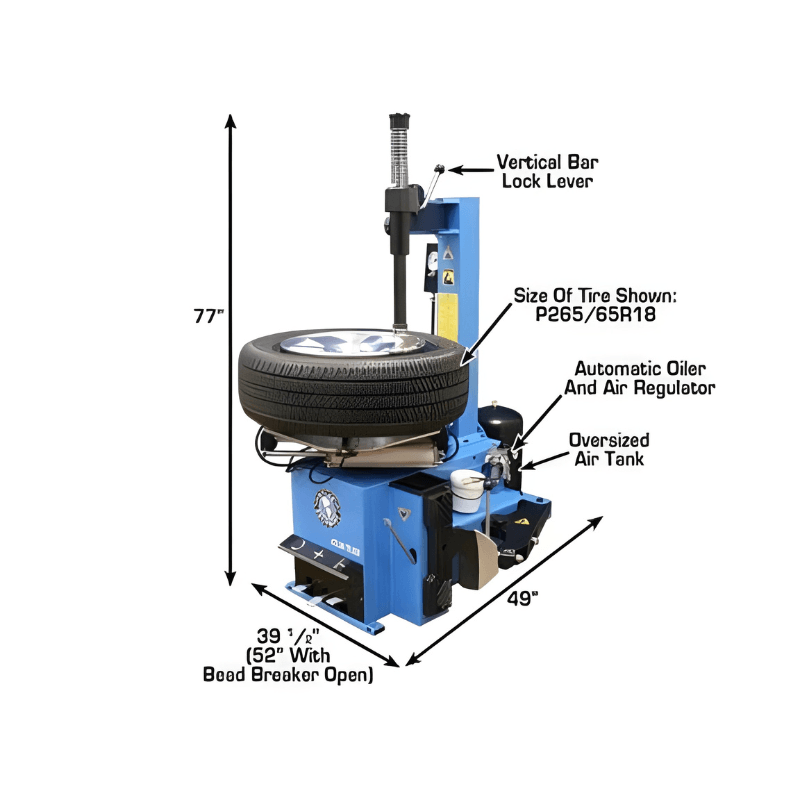

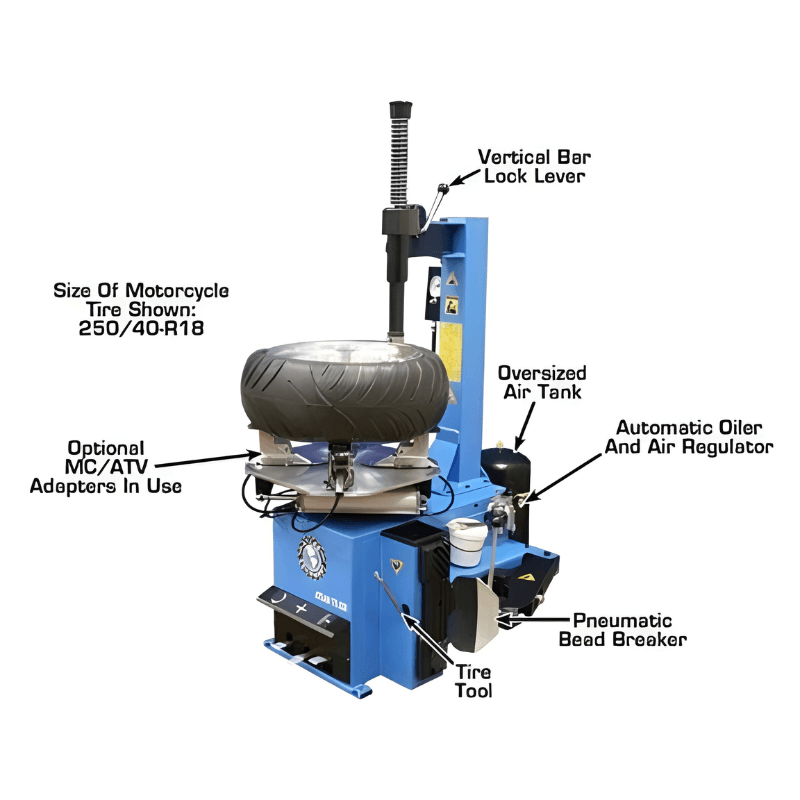

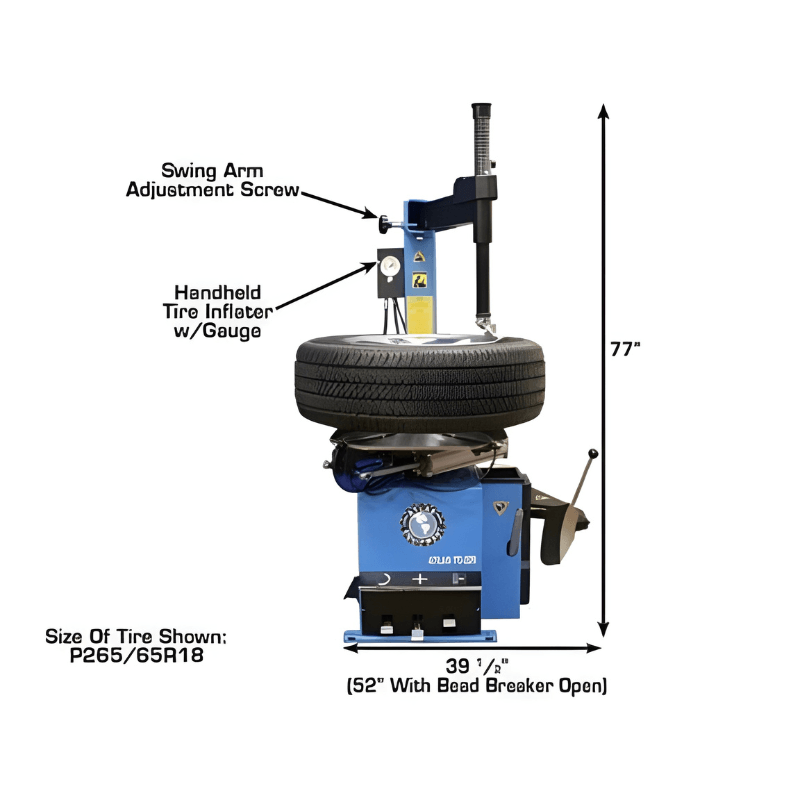

Atlas TC229 Rim-Clamp Tire Changer

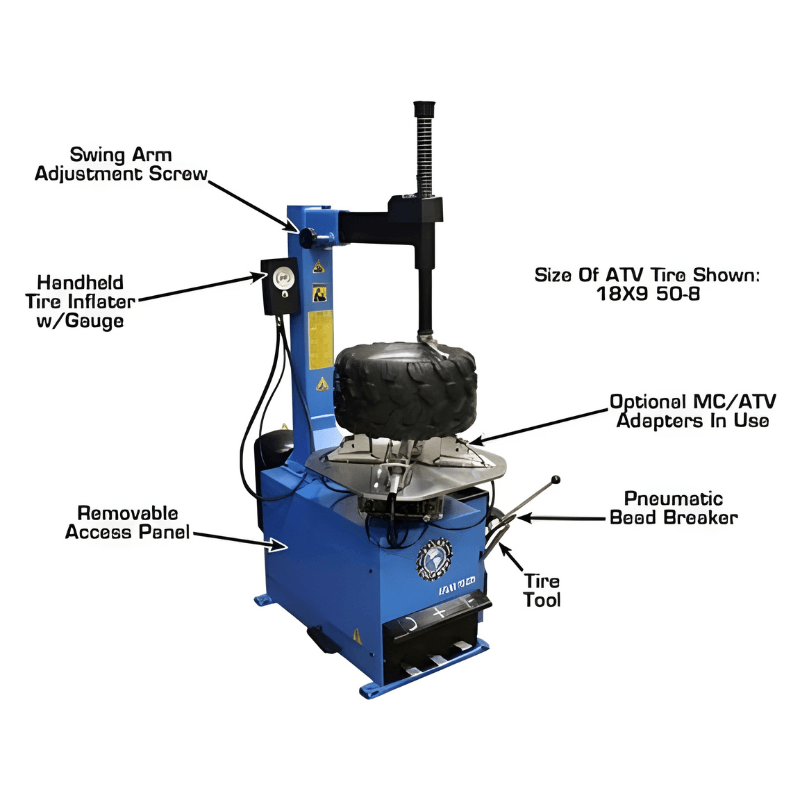

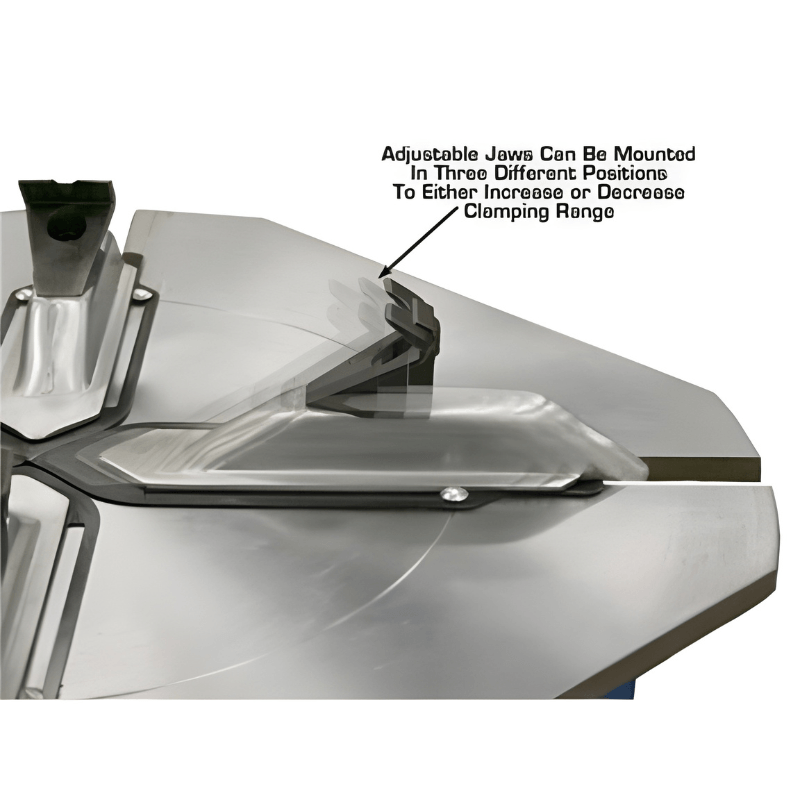

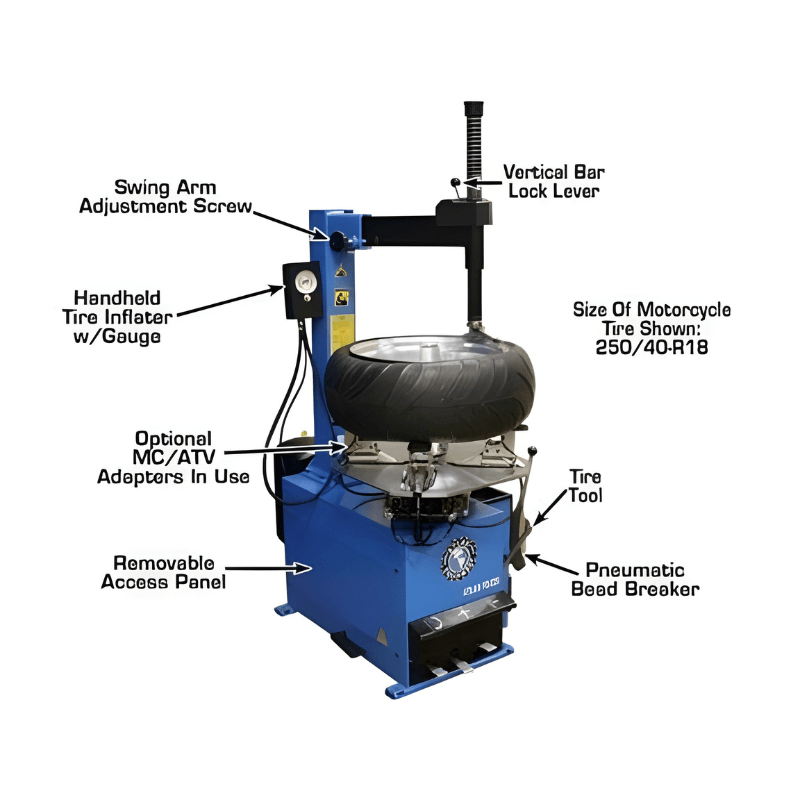

The TC229 features a rim-clamp, swing-arm design with adjustable clamping jaws that provide three mounting positions for handling different wheel sizes.

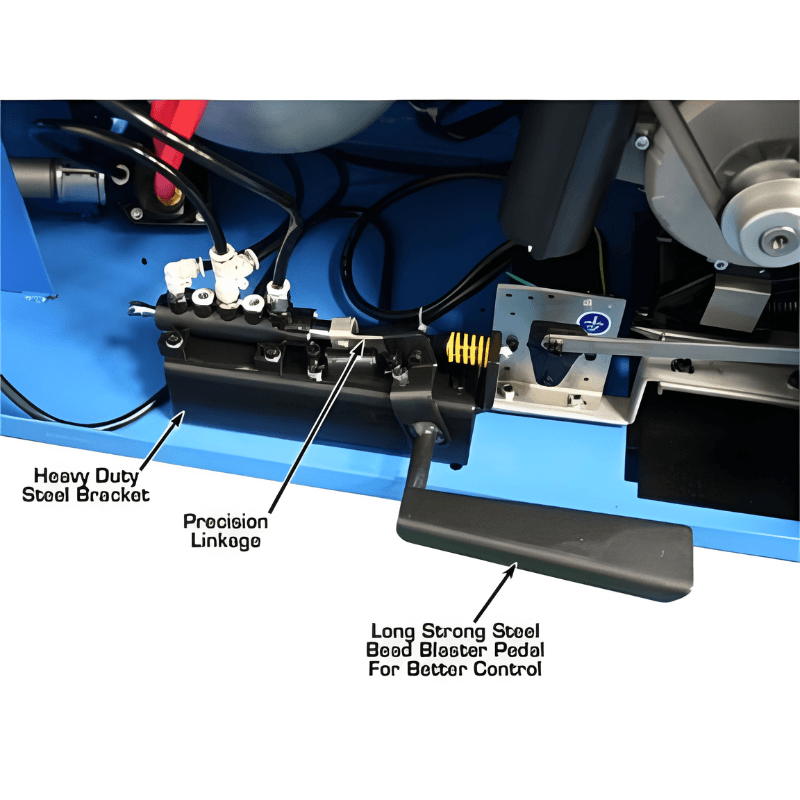

Its integrated Beadblaster system directs a powerful burst of air between the tire and rim to assist with seating difficult tire beads during inflation.

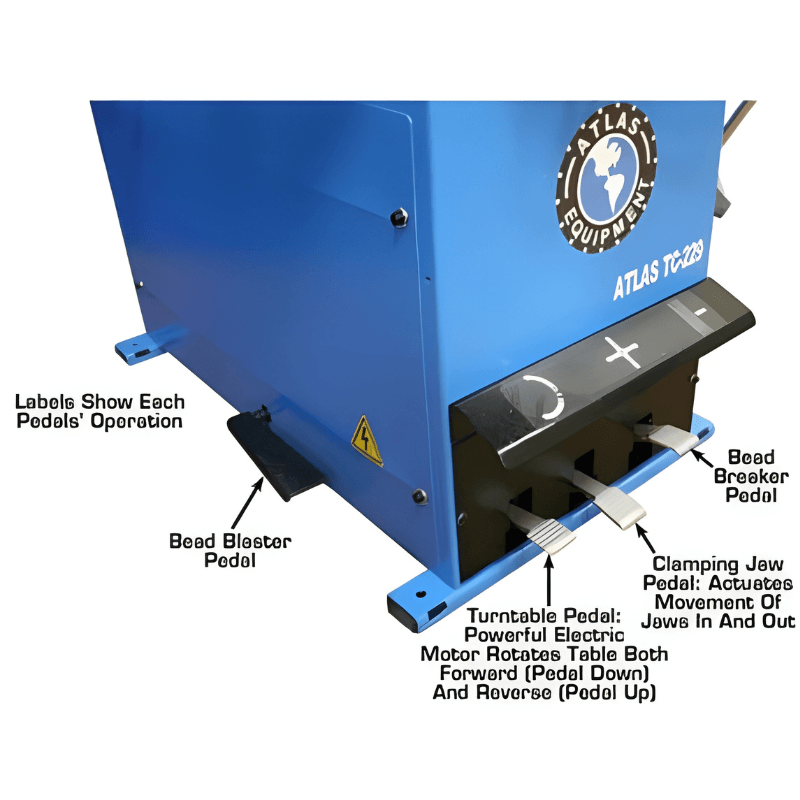

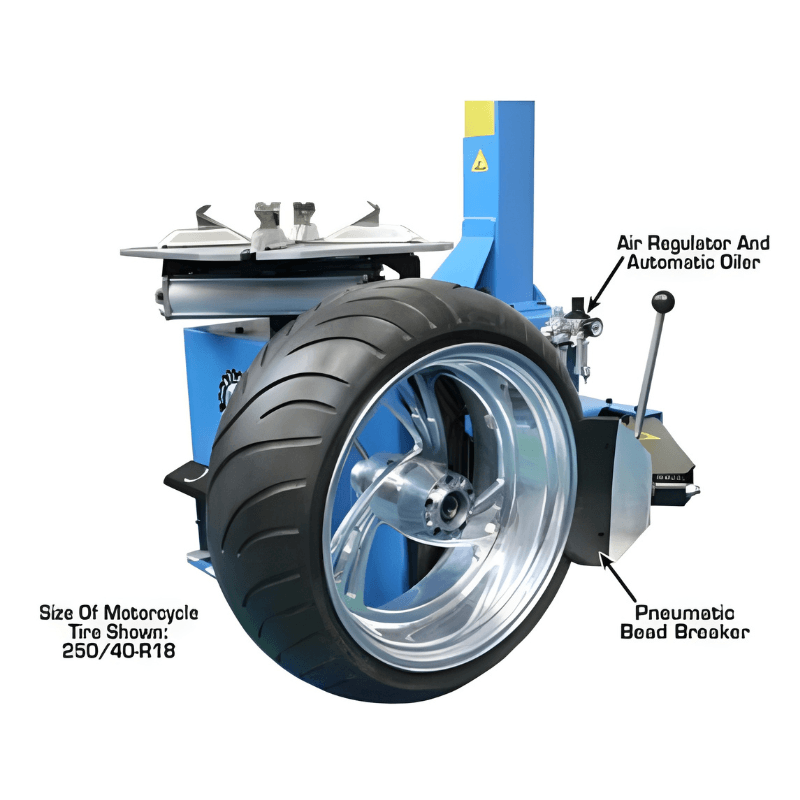

The pneumatic bead breaker produces up to 5,500 lbs of force, helping separate stubborn tire beads from the rim.

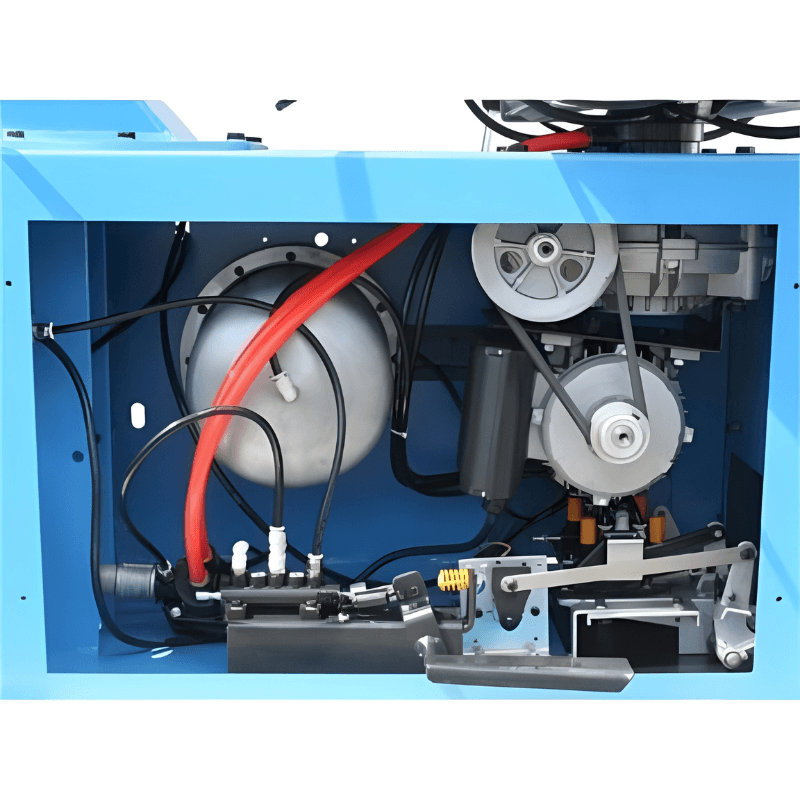

A 1 HP turntable motor produces approximately 885 ft-lbs of rotating torque, providing dependable performance for routine tire mounting and demounting.
TC229 Key Features
Rim-clamp / swing-arm tire changer
Built-in Beadblaster

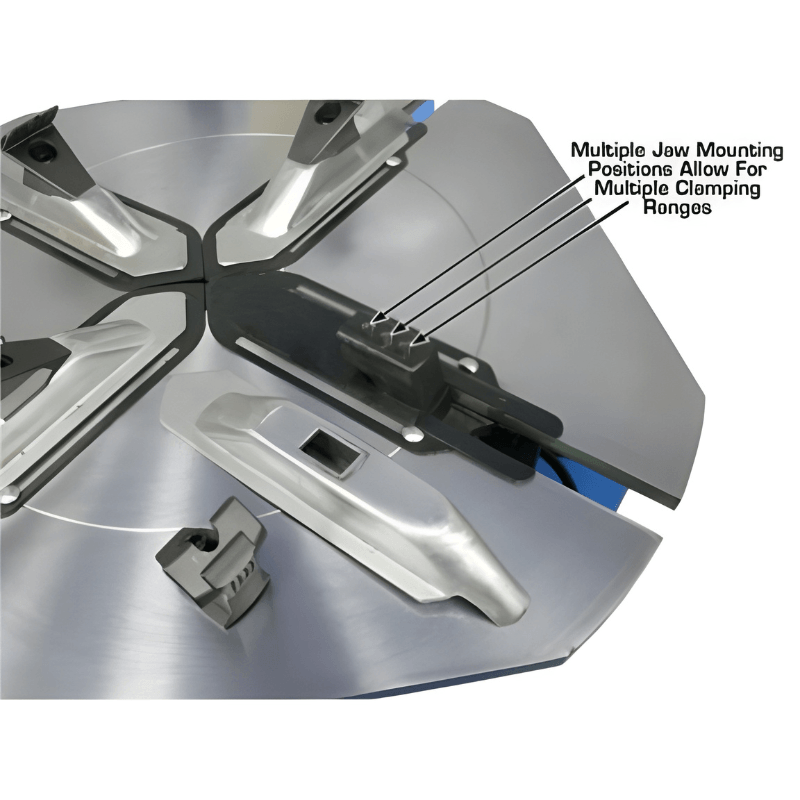

Adjustable jaws with 3 mounting positions
5,500-lb bead-breaker force
1 HP turntable motor
885 ft-lbs of turntable rotating torque
Handles tires up to 39 inches in diameter
Handles wheels up to 13 inches wide at the bead breaker

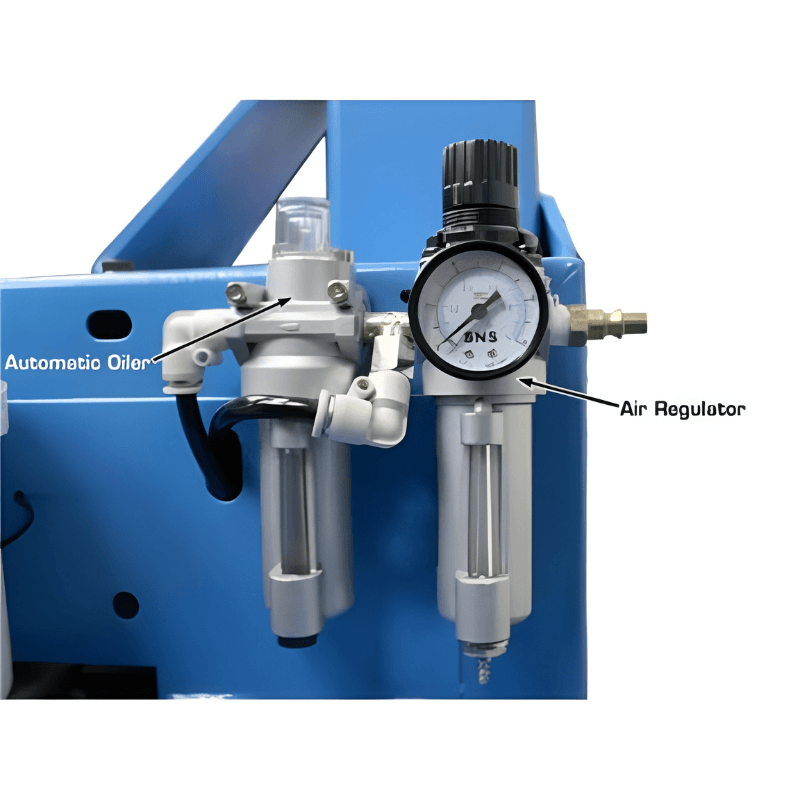

Oiler, filter, and regulator included
Inflation box with pressure gauge included

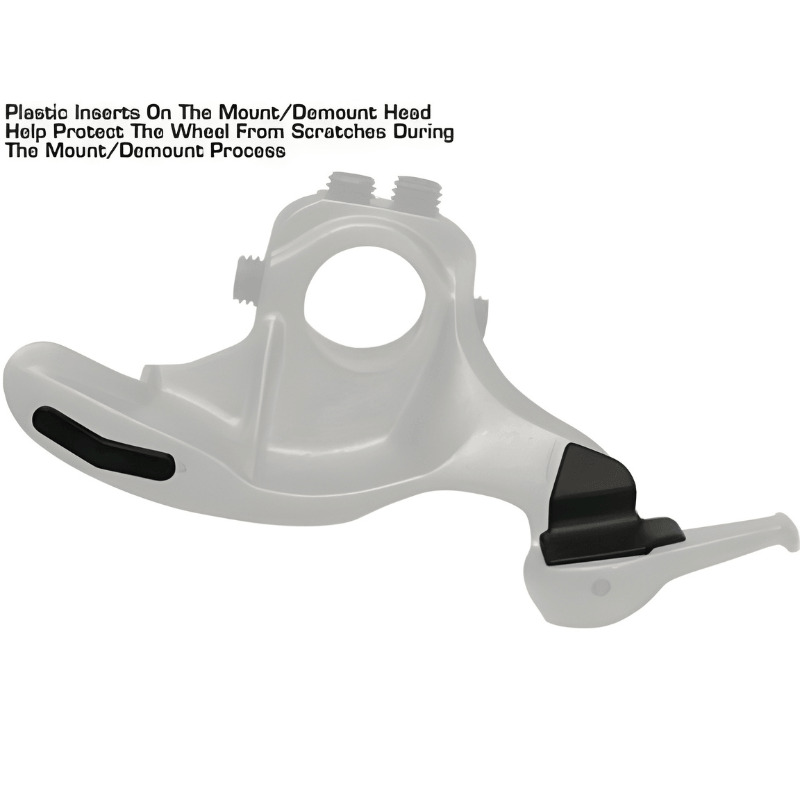

Plastic rim protectors included
Tire tool, lubricant bucket, and lubricant brush included
Requires external compressed-air supply
110V electrical operation

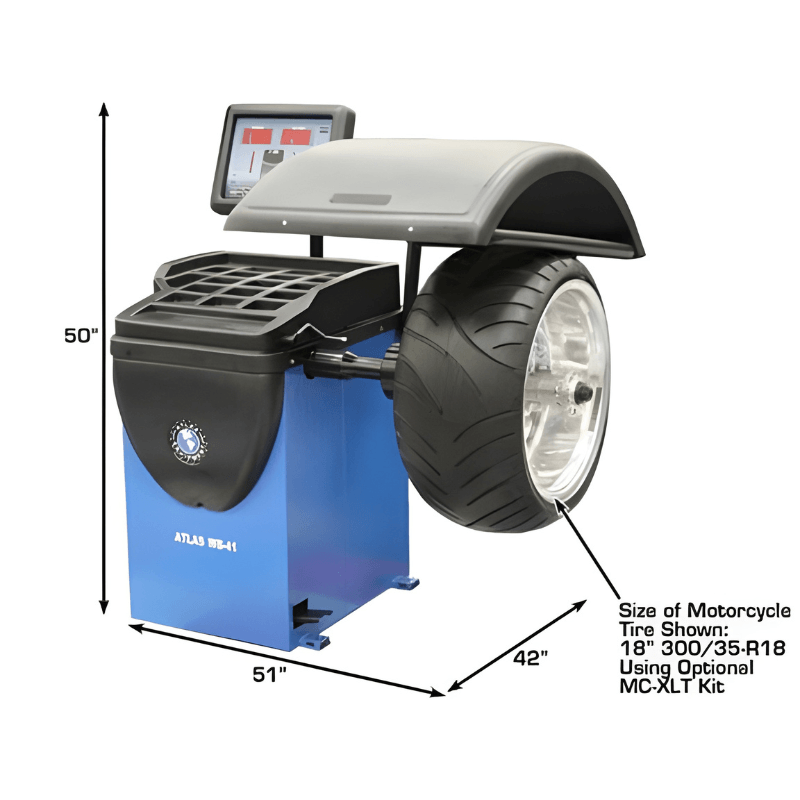

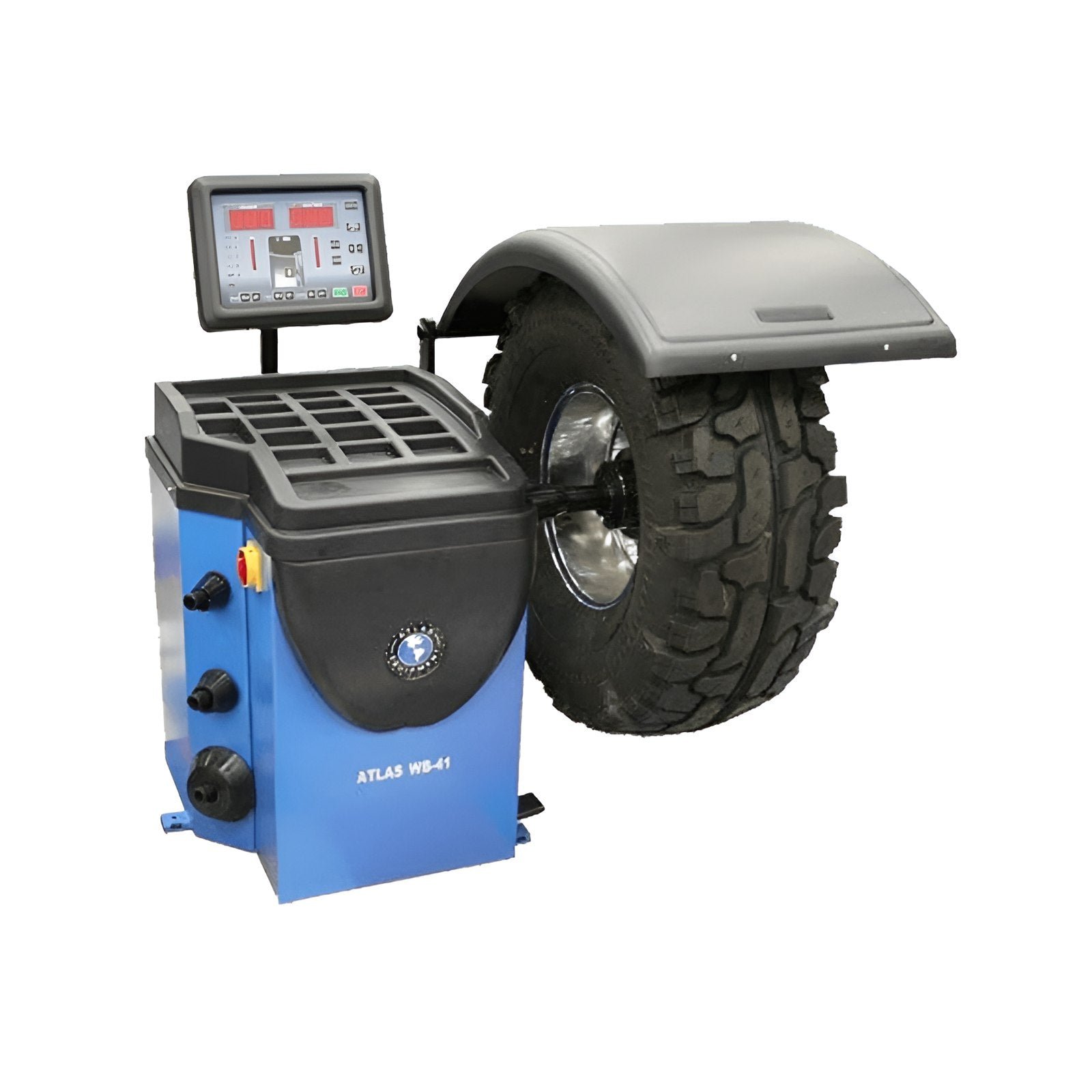

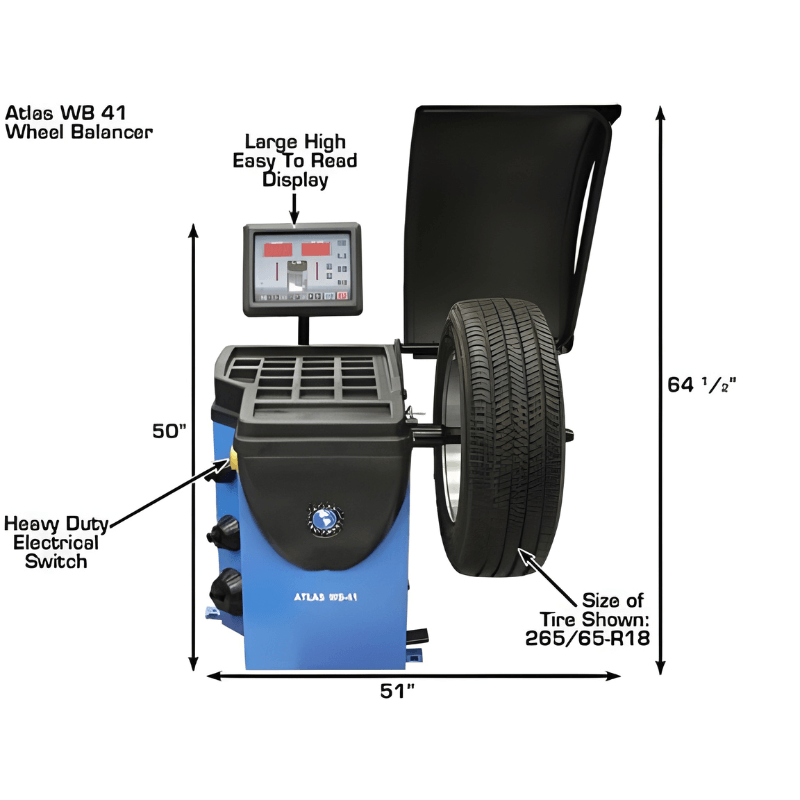

Atlas WB41 Computerized Wheel Balancer
The included Atlas WB41 is a computer-controlled spin wheel balancer designed for passenger-car and light-truck wheels.
It supports both static and dynamic balancing modes and features Rapid Optimization (OPT), self-diagnosis, and self-calibration functions.
The WB41 handles rim diameters from 10 to 32 inches, rim widths from 1.5 to 20 inches, and wheel assemblies weighing up to 150 lbs.
Balancing accuracy is rated at 1 gram, with a balancing speed of approximately 150 RPM.
WB41 Key Features
Computer-controlled spin wheel balancer

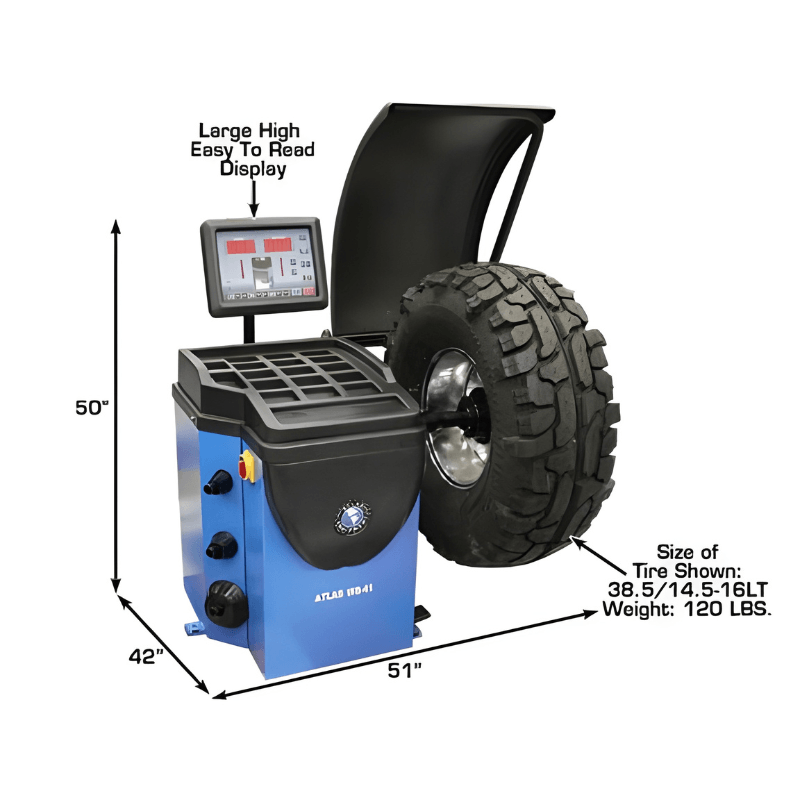

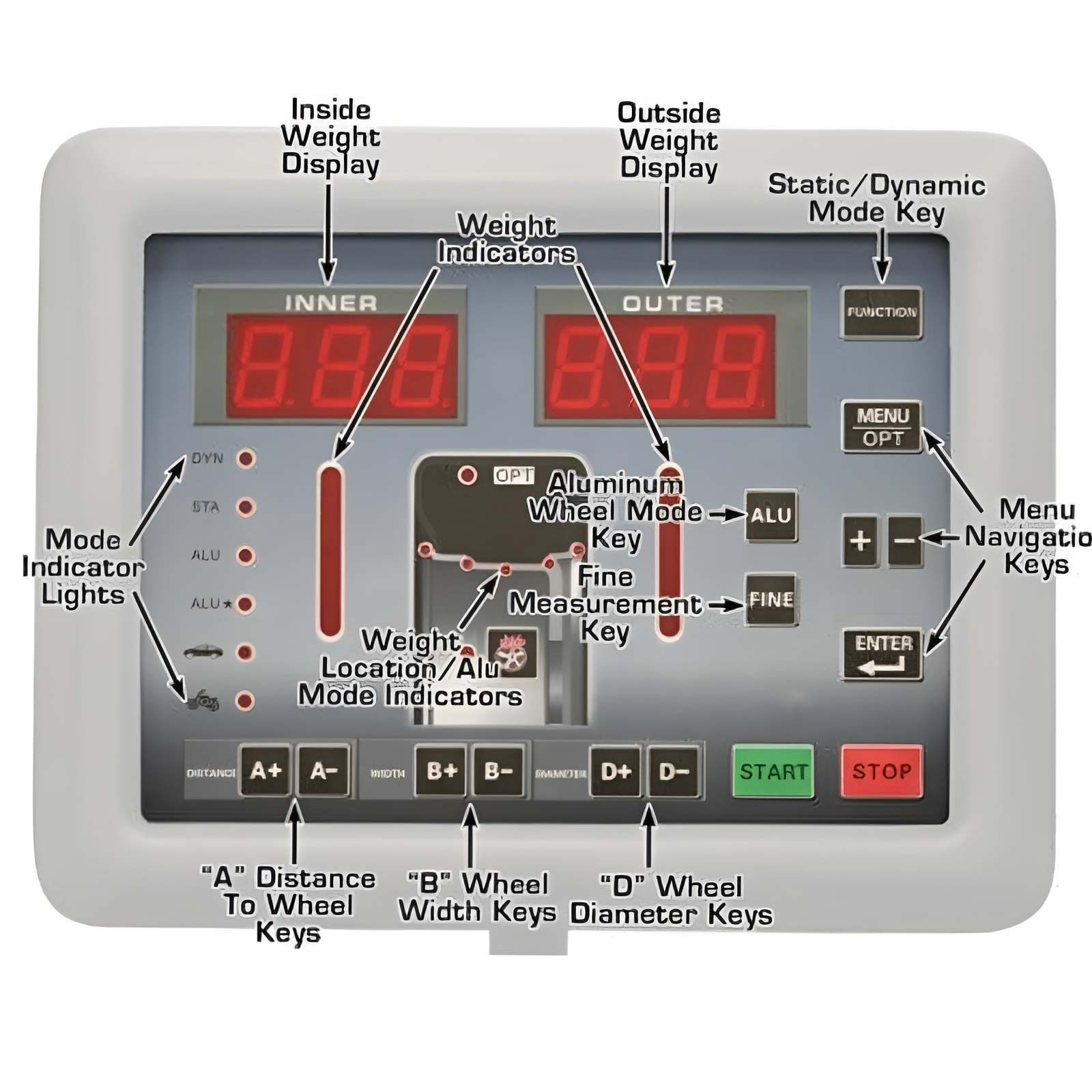

Raised, easy-to-read display
Static and dynamic balancing modes
Rapid Optimization (OPT)
Self-diagnosis system
Self-calibration
Standard or metric measurements
Displays weights in grams or ounces
Handles rims from 10–32 inches
Handles rim widths from 1.5–20 inches
Maximum tire diameter of 39 inches
Maximum wheel weight of 150 lbs
1-gram balancing accuracy
150 RPM balancing speed

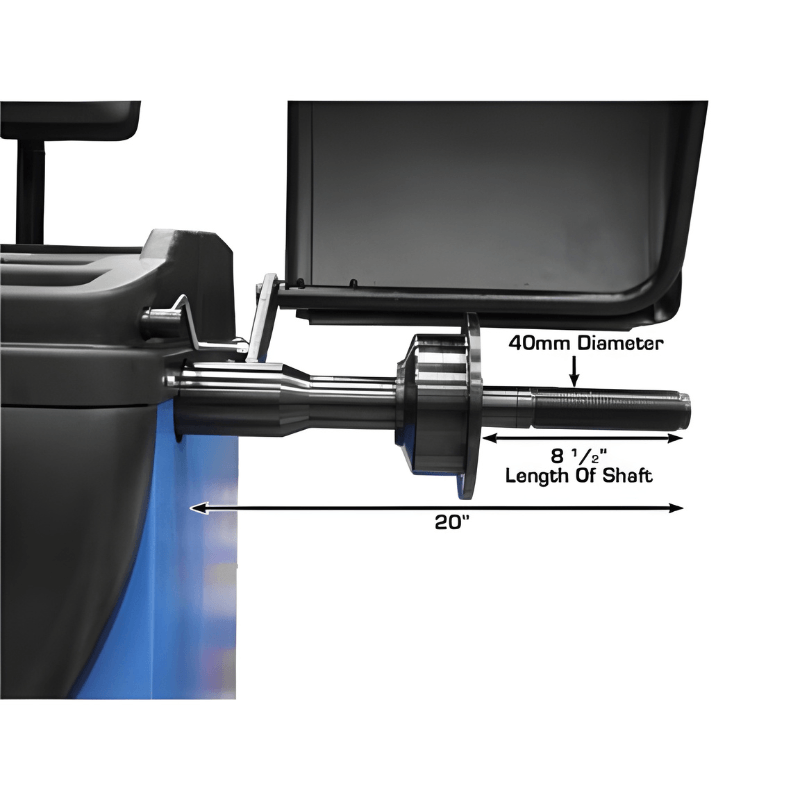

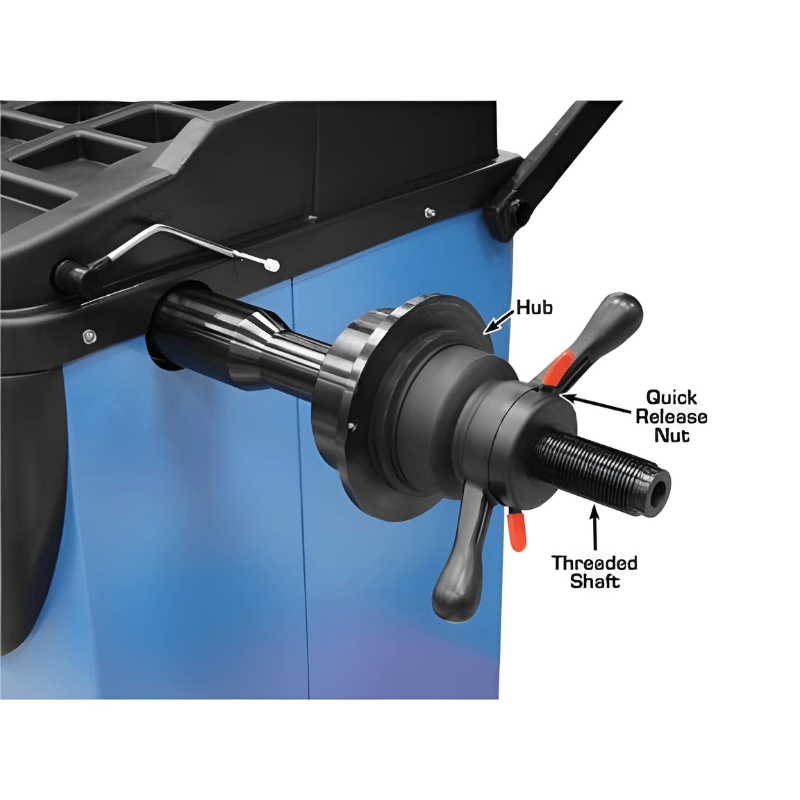

Heavy-duty 40 mm shaft
1/4 HP motor
110V electrical operation
Product Specifications
Atlas TC229
Model: TC229
Type: Rim-Clamp / Swing-Arm Tire Changer

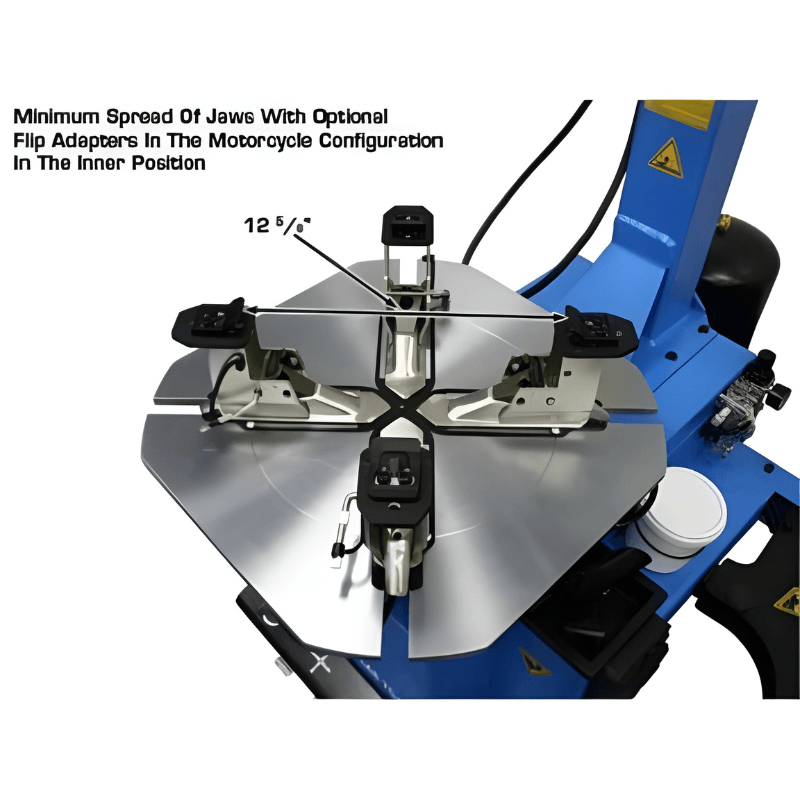

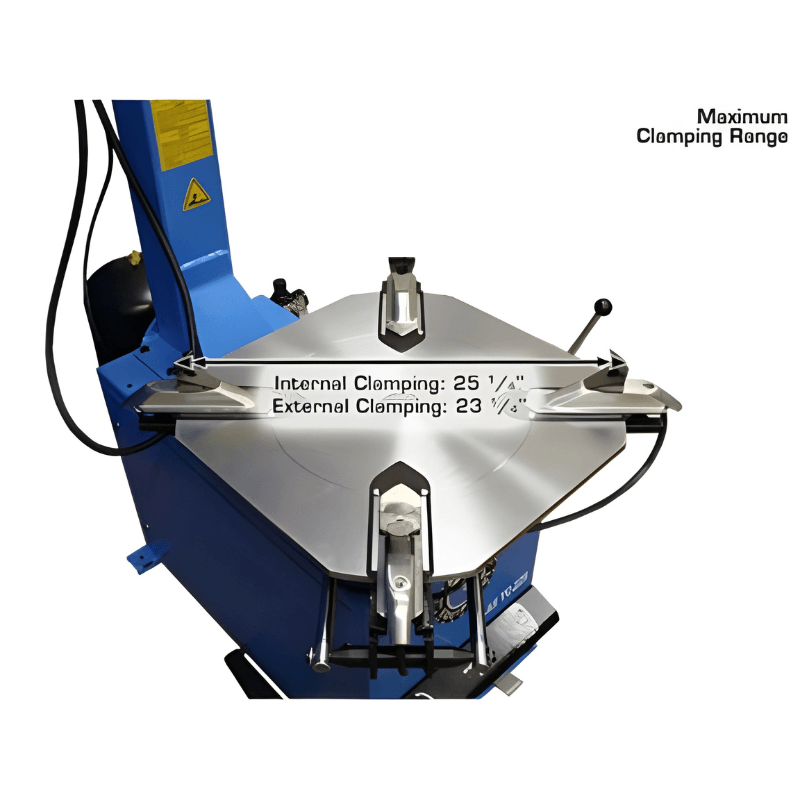

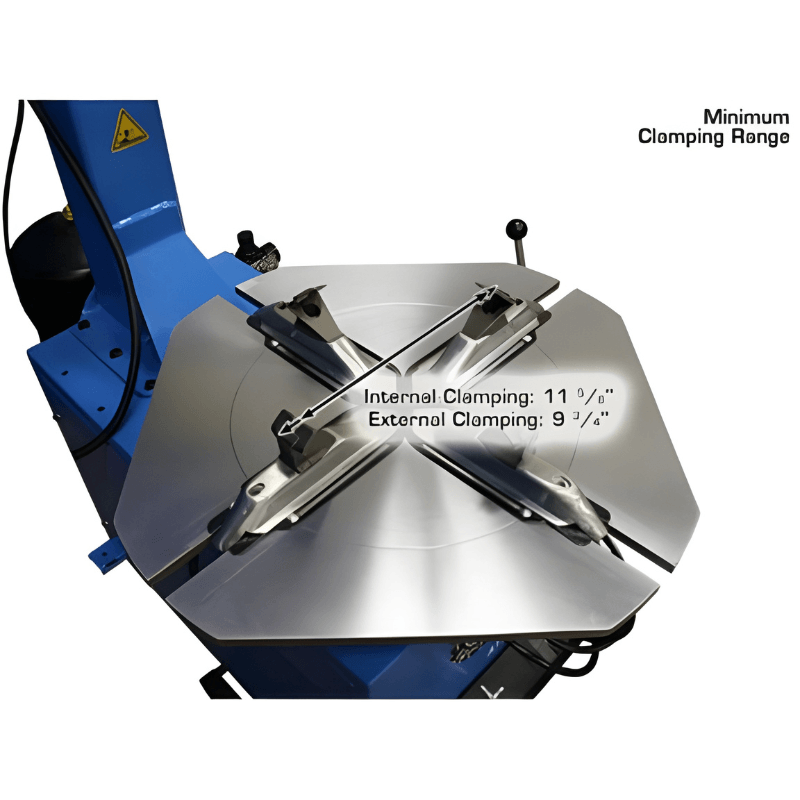

External Rim Clamping Range: 9-3/4 – 23-1/4 in.

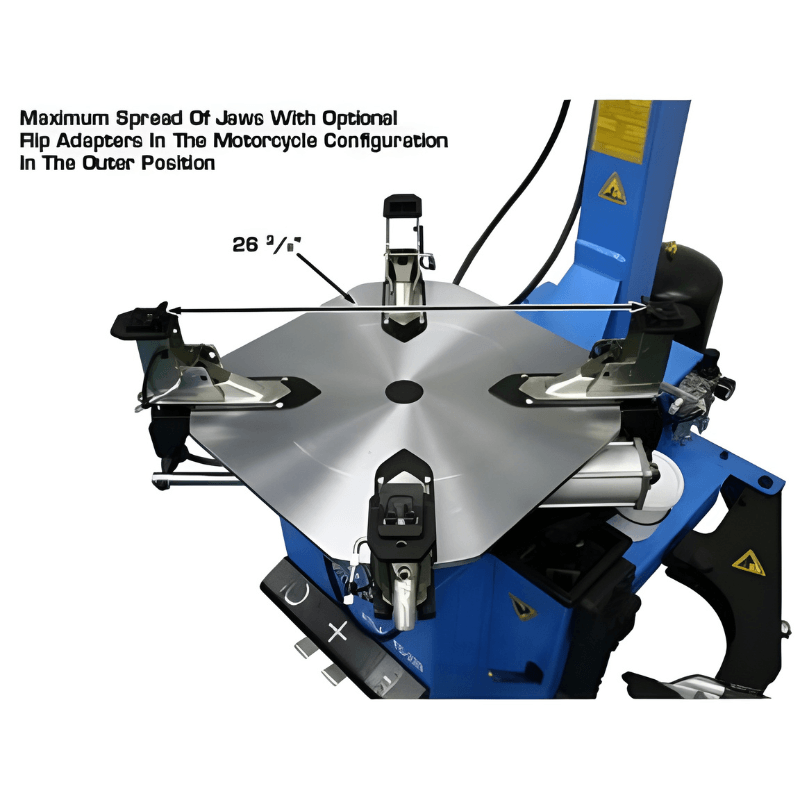

Internal Rim Clamping Range: 11-5/8 – 25-1/4 in.
Maximum Tire Diameter: 39 in.
Maximum Wheel Width: 13 in.
Motor: 1 HP
Turntable Torque: 885 ft-lbs
Bead-Breaker Force: 5,500 lbs
Air Requirement: 90–110 PSI
Maximum Air Pressure: 140 PSI
Electrical Requirement: 110V

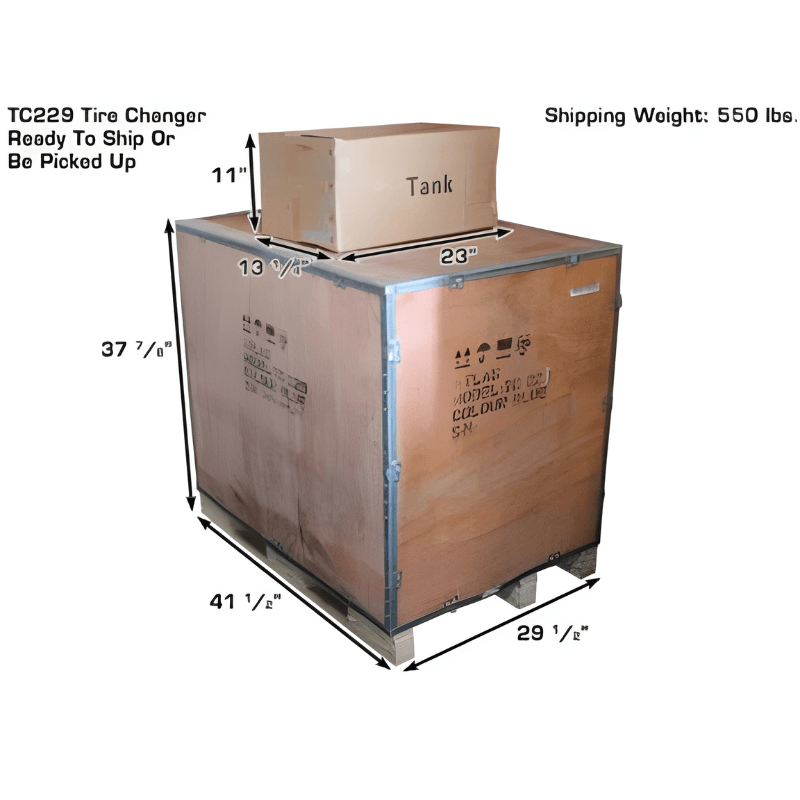

Shipping Weight: Approx. 550 lbs
Atlas WB41
Model: WB41
Type: Computerized Spin Wheel Balancer
Maximum Tire Diameter: 39 in.
Rim Diameter Range: 10–32 in.
Rim Width Range: 1.5–20 in.
Maximum Wheel Weight: 150 lbs
Shaft Diameter: 40 mm
Balancing Speed: 150 RPM
Data Entry: Manual
Measurement: Standard or Metric
Balancing Accuracy: 1 gram
Weight Position Resolution: 1.4°
Self Calibration: Yes
Motor: 1/4 HP
Electrical Requirement: 110V

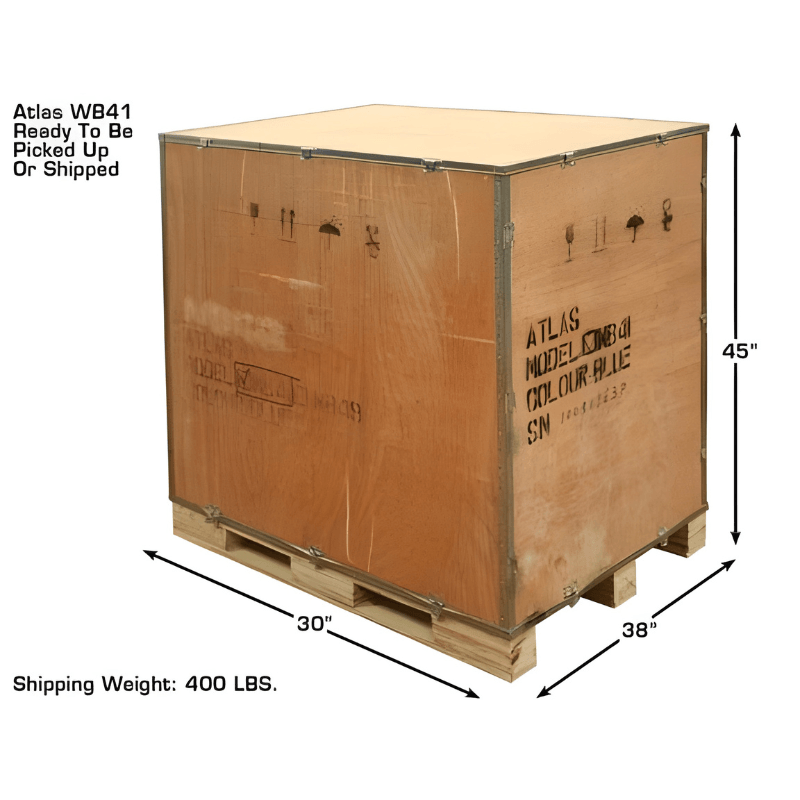

Shipping Weight: Approx. 400 lbs
Included Accessories

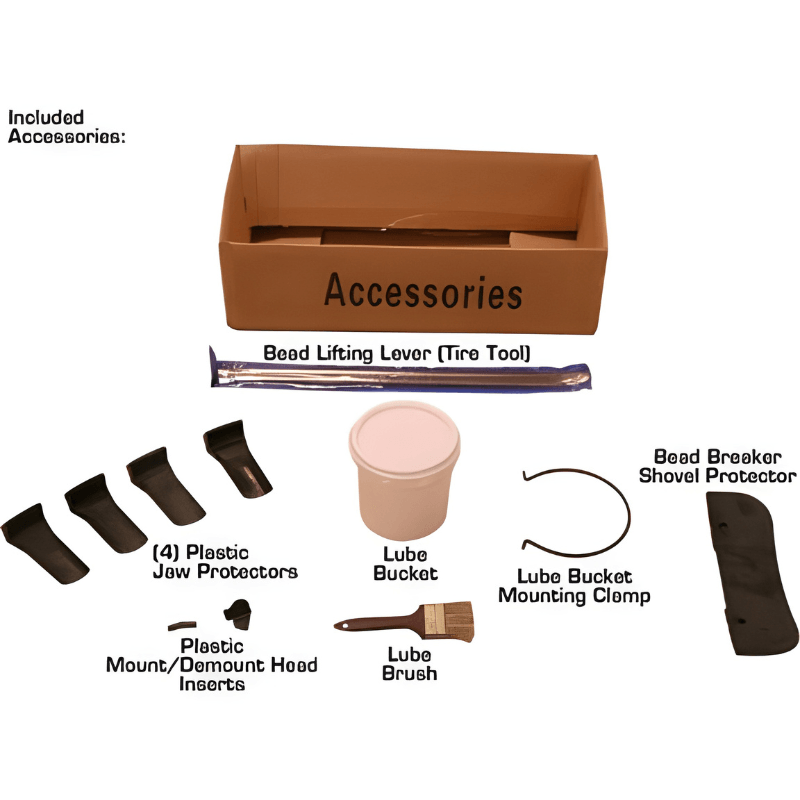

TC229 Accessories
Oiler, Filter & Regulator
Plastic Rim Protectors
Tire Tool
Lubricant Bucket
Lubricant Brush
Inflation Box with Gauge
WB41 Accessories

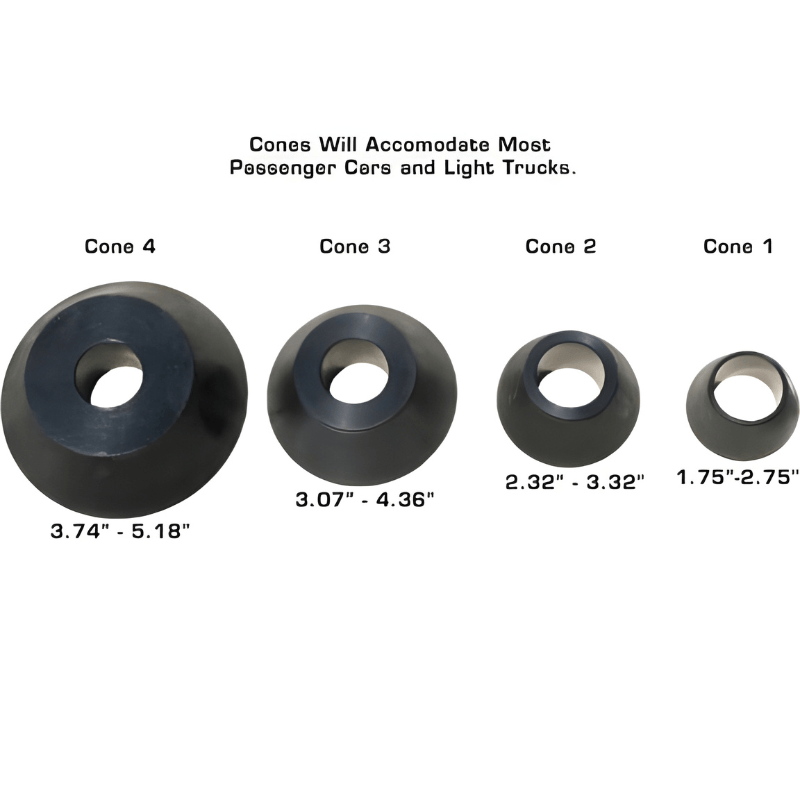

4 Centering Cones
Plastic Quick-Nut
Wheel Weight Pliers
Wheel Measuring Calipers
Warranty
Both the TC229 Tire Changer and WB41 Wheel Balancer are CE approved and backed by an Atlas 1-Year Parts-Only Warranty.
