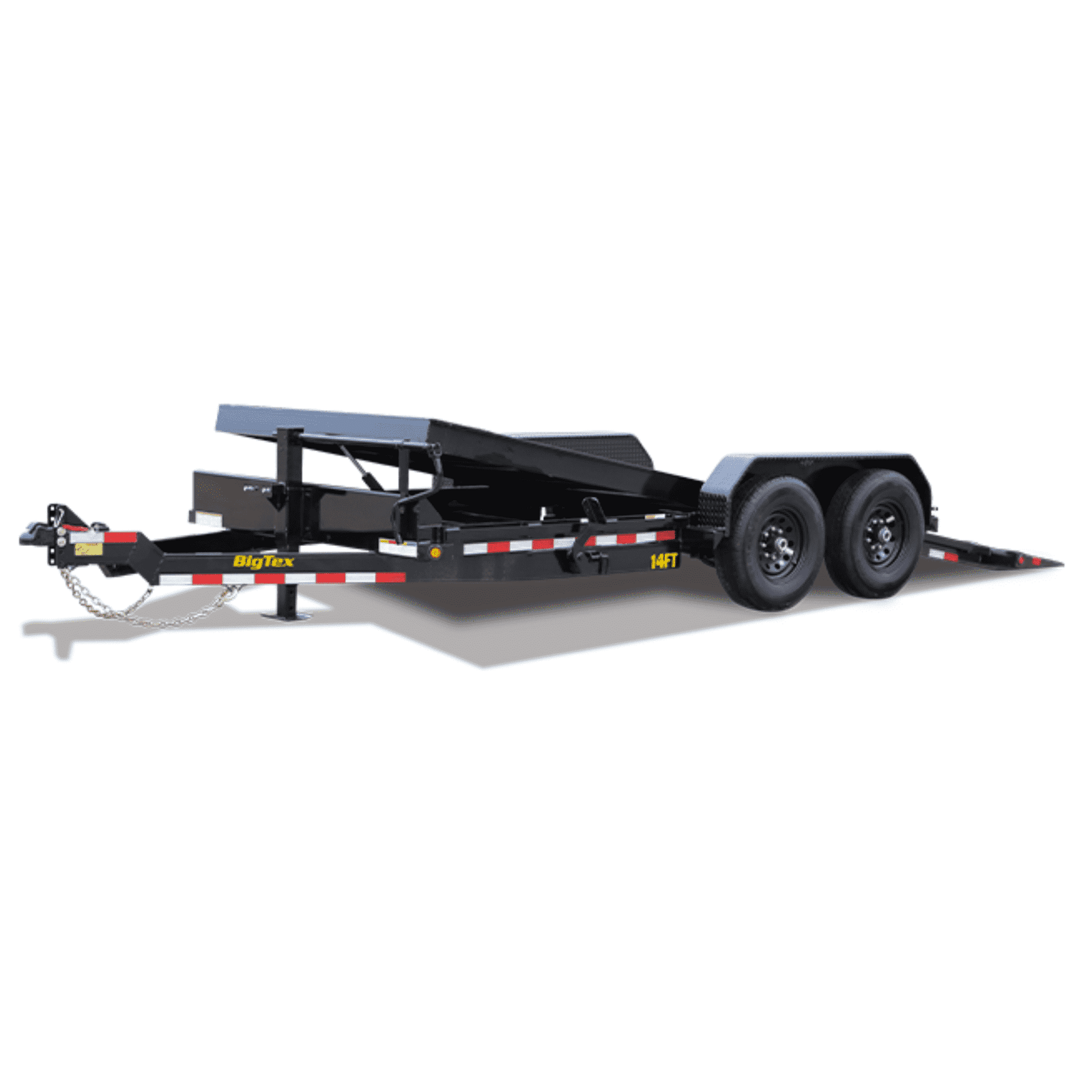

Big Tex Heavy Duty Full Tilt Bed Equipment Trailer | 14FT

  Make hauling light and medium duty equipment easy with our 14FT Heavy Duty Full Tilt Bed Equipment Trailer. Featuring a smooth hydraulic dampening system, an accessible 12 degree loading angle, and a slick, high traction rear knife edge, it has all the tools you need for a seamless hauling experience. And it’s built to last, with a 6” channel frame and two 7,000-pound axles, giving you a powerful combination of strength and stability. Standard Feature Available Options Axles 2 – 7,000# Premium, 4? Drop-Axles with Quick-Lubricating Hubs Brakes Forward Self-Adjusting Electric Brakes on Both Axles Suspension Multi-Leaf Slipper Spring w/ Equalizer Coupler Adjustable 2-5/16” Demco EZ Latch Adjustable Pintle in Channel in Lieu of Coupler Safety Chains 3/8? Grade 70 w/ Safety Latch Hook (2 ea) Jack 12,000# Drop-Leg Jack (Side Wind) Frame 6? Channel Cross-Members 3? Channel, 3? Square Tube Front Stop Rail 3/16? Fabricated Front Stop Rail Floor APEX Fortified Lumber Blackwood Pro- Outer Deck Only (X Length of Trailer) Blackwood Pro Rubber Infused Lumber Floor (per linear foot) 1/8” Diamond Plate Steel Floor (Per Square Foot) Fenders 9” x 72” 14 Ga. Diamond Plate Double Square Broke w/Back (Removable) Stake Pockets Stake Pockets Along Both Sides (Quantity Varies by Length) Trailer Plug 7-Way RV Lights Recessed, Grommet-Mounted L.E.D. Lighting Wiring Sealed, Modular Cold-Weather Wiring Harness Tires ST235/80 R-16 Load Range E Radial Tires Tire Upgrade (ST235/80 R-16 LR-G) Bolt Pattern 8 x 6.5 Spare Mount Front Spare Tire Mount Spare Tire Not Included Spare Tire & Wheel (ST235/80 R-16 LR-E) Spare Tire Upgrade (ST235/80 R-16 LR-G) Paint Type Professional Finish w/ Primer Standard Paint Color Black Red Grey White Desert Tan Jet Blue Slime Green Implement Green Equipment Orange Medium Yellow Tilt Deck Dimensions 75? Wide (83? Between Fenders) with 1/4? Diamond plate Knife Edge Tilt Deck Operation Hydraulic Dampening with Valve Control and Single Side, EZ Pedal Locking Mechanism Rubrail Rub Rail Along Both Sides Tie-Downs (6) 5/8? D-Rings Extra 5/8? D-Rings Recessed D-Ring in Floor (Steel Floor Only) Break-Away Kit Complete Breakaway System w/ Zip™ Breakaway Cable and Charger Tilt Deck Angle 12°   MODEL 14FT-16 PULL TYPE Bumperpull GVWR 14000 lbs GAWR (EA. AXLE) 7000 lbs EMPTY WEIGHT 3090 lbs CARGO CAPACITY 10910 lbs BED LENGTH 16 BED WIDTH 83? A 202-1/2? B 101? C 101-1/2? TONGUE LENGTH 48-1/2? MODEL 14FT-18 PULL TYPE Bumperpull GVWR 14000 lbs GAWR (EA. AXLE) 7000 lbs EMPTY WEIGHT 3290 lbs CARGO CAPACITY 10710 lbs BED LENGTH 18? BED WIDTH 83? A 225-1/2? B 113? C 112-1/2? TONGUE LENGTH 48-1/2?   MODEL 14FT-20 PULL TYPE Bumperpull GVWR 14000 lbs GAWR (EA. AXLE) 7000 lbs EMPTY WEIGHT 3490 lbs CARGO CAPACITY 10510 lbs BED LENGTH 20? BED WIDTH 83? A 249-1/2? B 128? C 121-1/2? TONGUE LENGTH 48-1/2?
