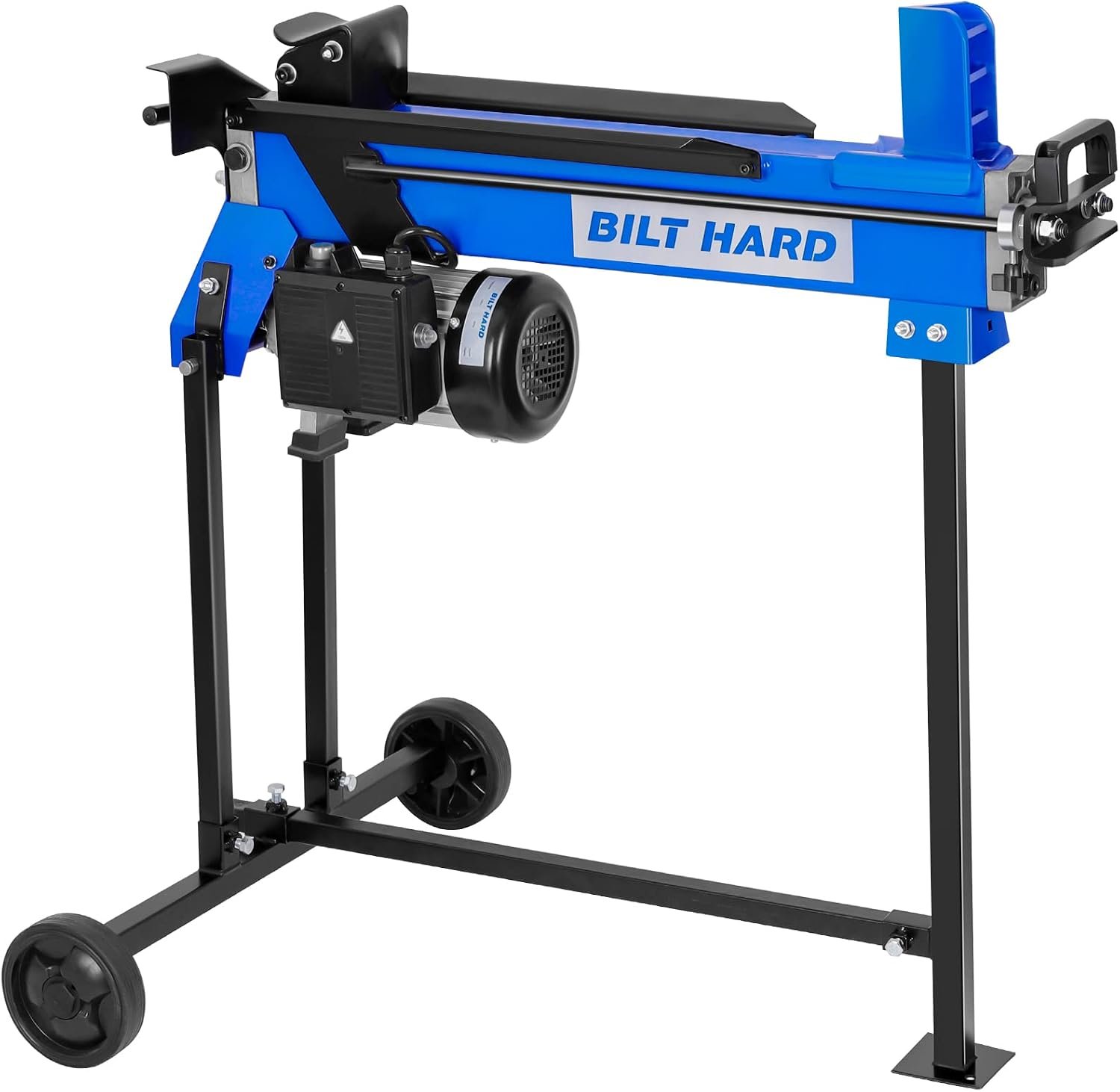

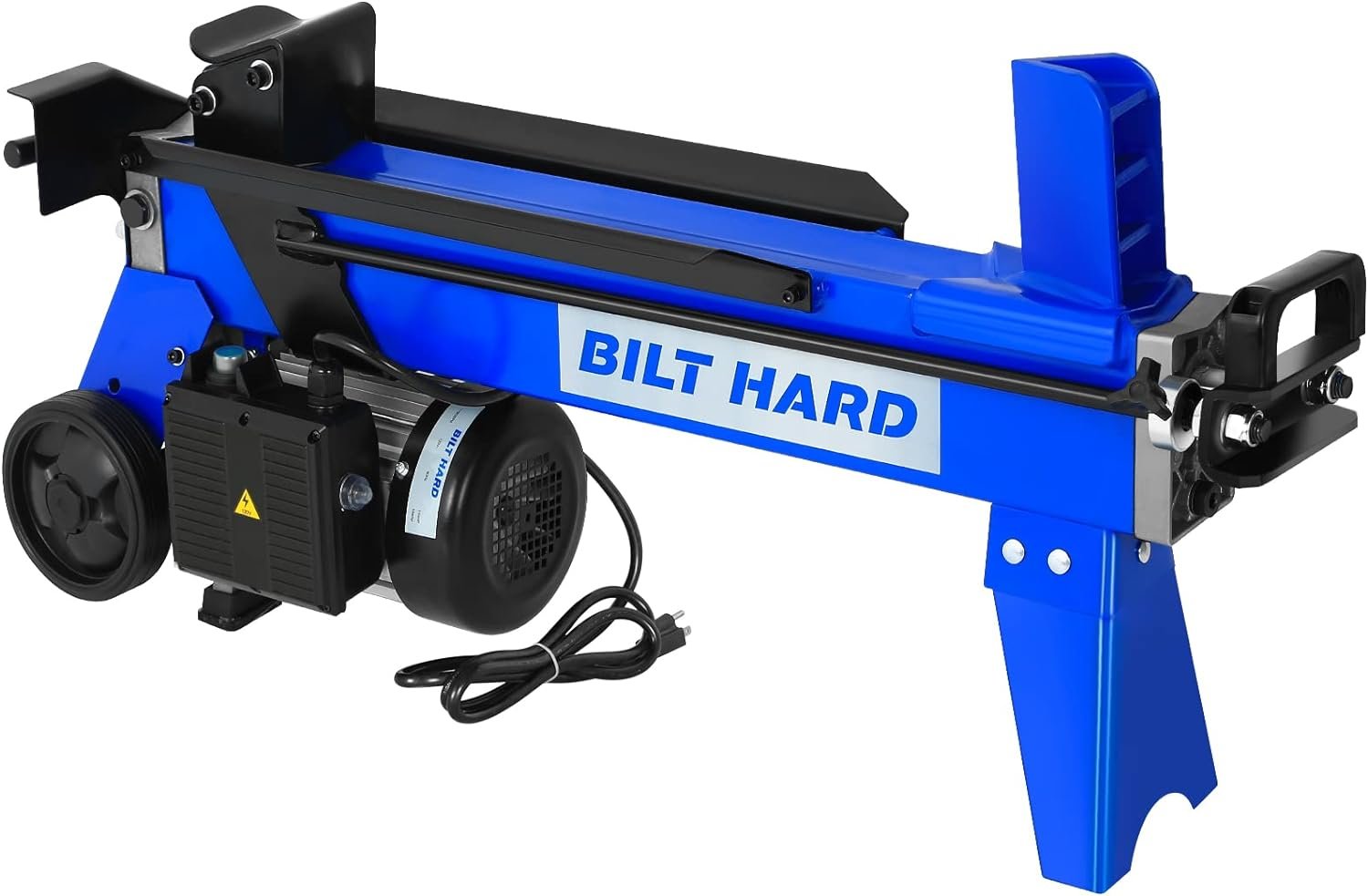

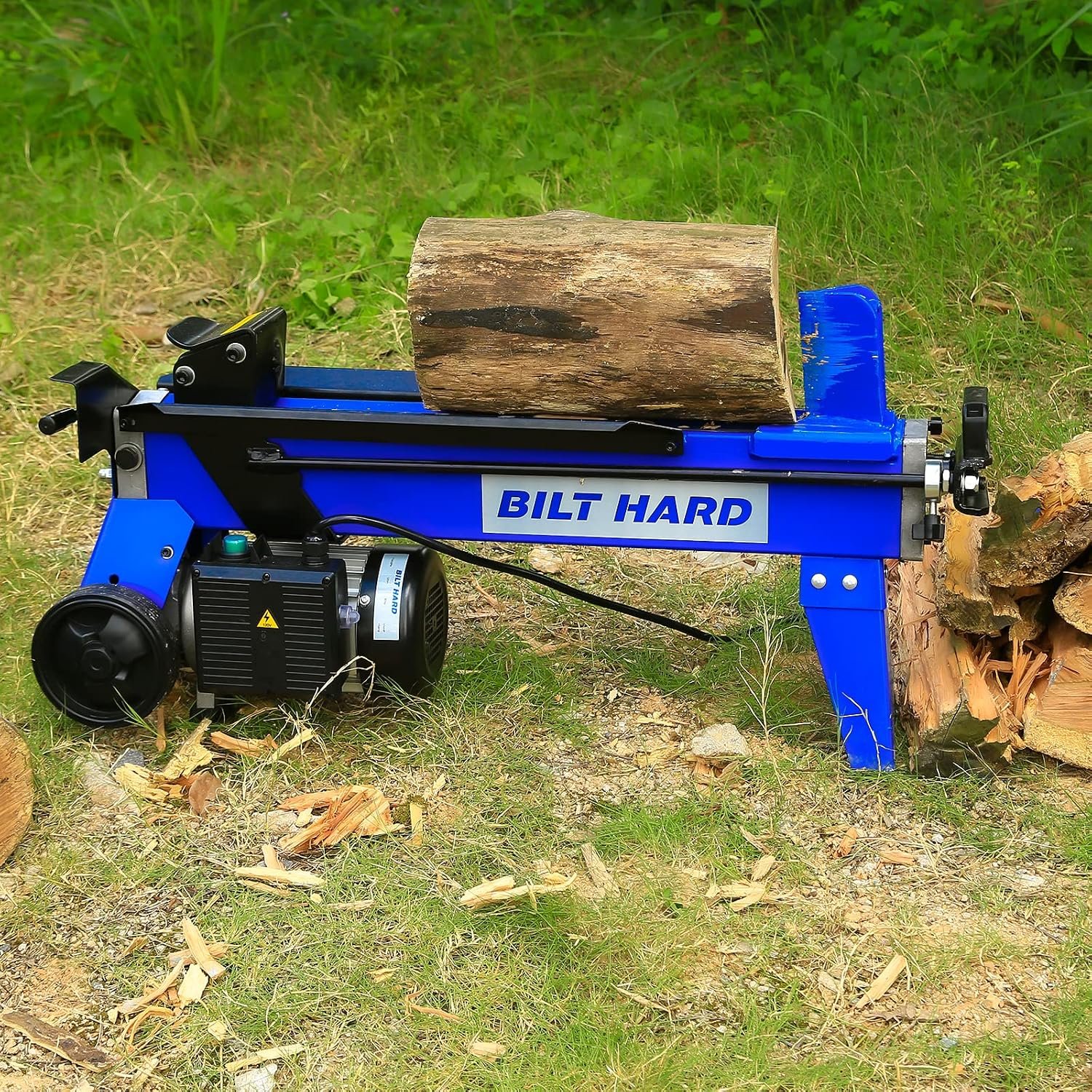

BILT HARD TLA-0101 6.5-Ton Electric Log Splitter
The BILT HARD 6.5-Ton Electric Log Splitter is a compact hydraulic wood splitter designed for home firewood processing and general property maintenance. Powered by a 15-amp, 1-3/4 HP electric motor, it delivers up to 6.5 tons of splitting force without the fuel and maintenance requirements of a gas engine.
Its horizontal full-beam design can handle logs up to 20.5 inches long and 9.8 inches in diameter. The hydraulic ram provides consistent splitting force with an approximately 18-second cycle time, while the compact design and built-in transport wheels make it easier to move and store.
Key Features

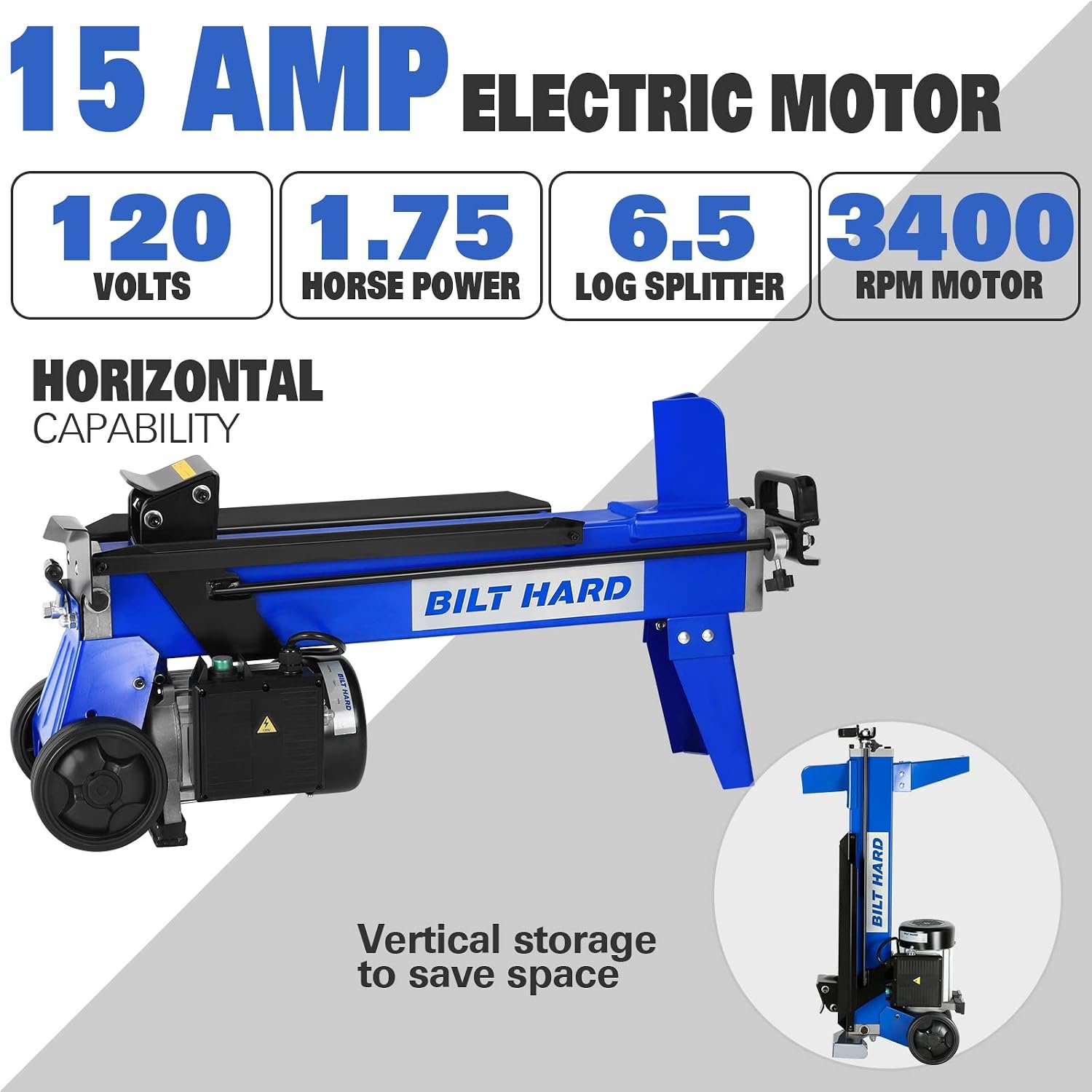

- 6.5-ton maximum splitting force
- Powerful 15-amp electric motor
- 1-3/4 HP motor
- 120V / 60Hz operation
- Up to 3,400 RPM motor speed
- Handles logs up to 20.5″ long
- Handles logs up to 9.8″ in diameter
- Approx. 18-second cycle time
- Hydraulic ram splitting system
- Horizontal full-beam design
- Durable steel construction

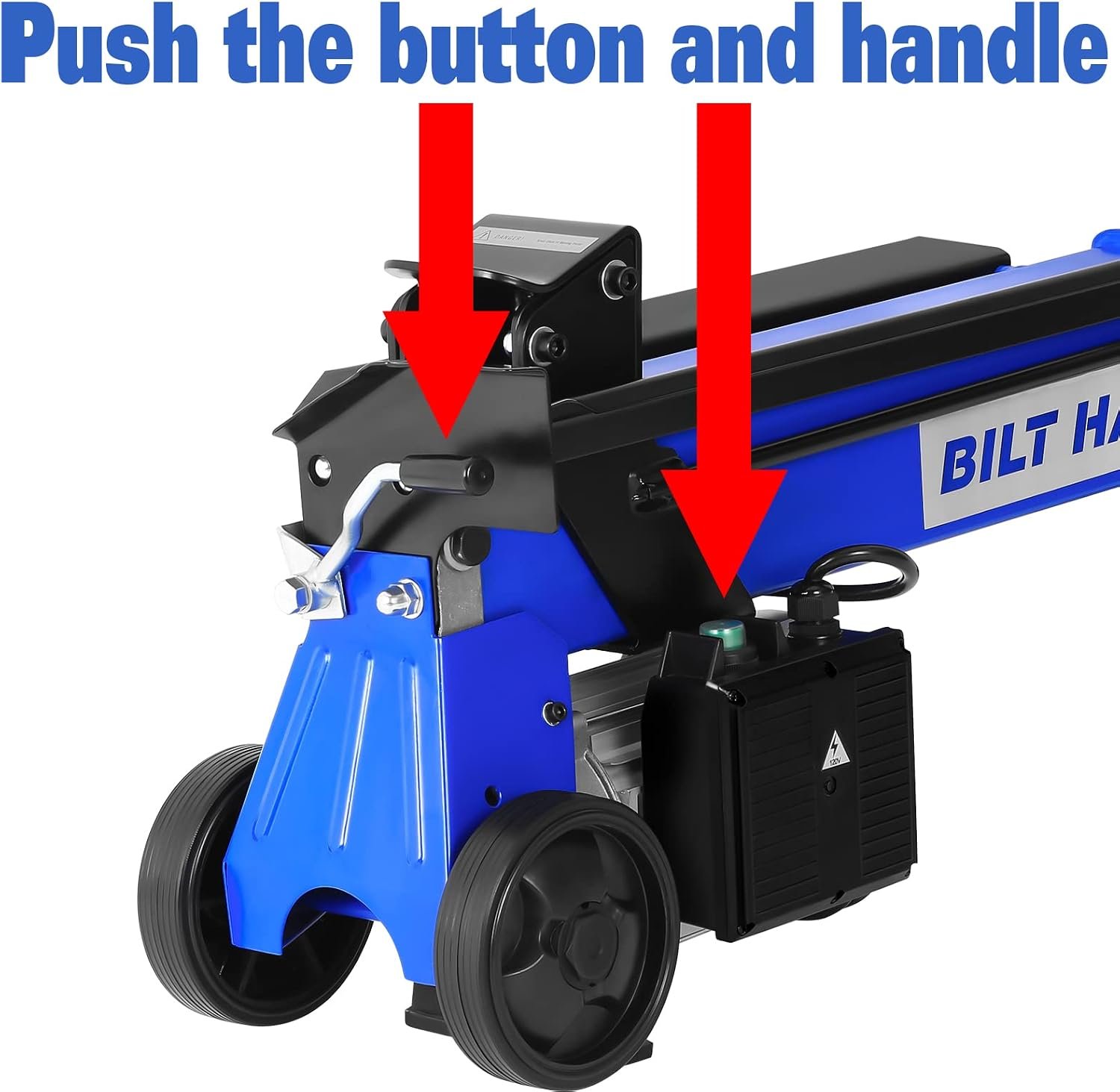

- Two-hand controls for operator safety

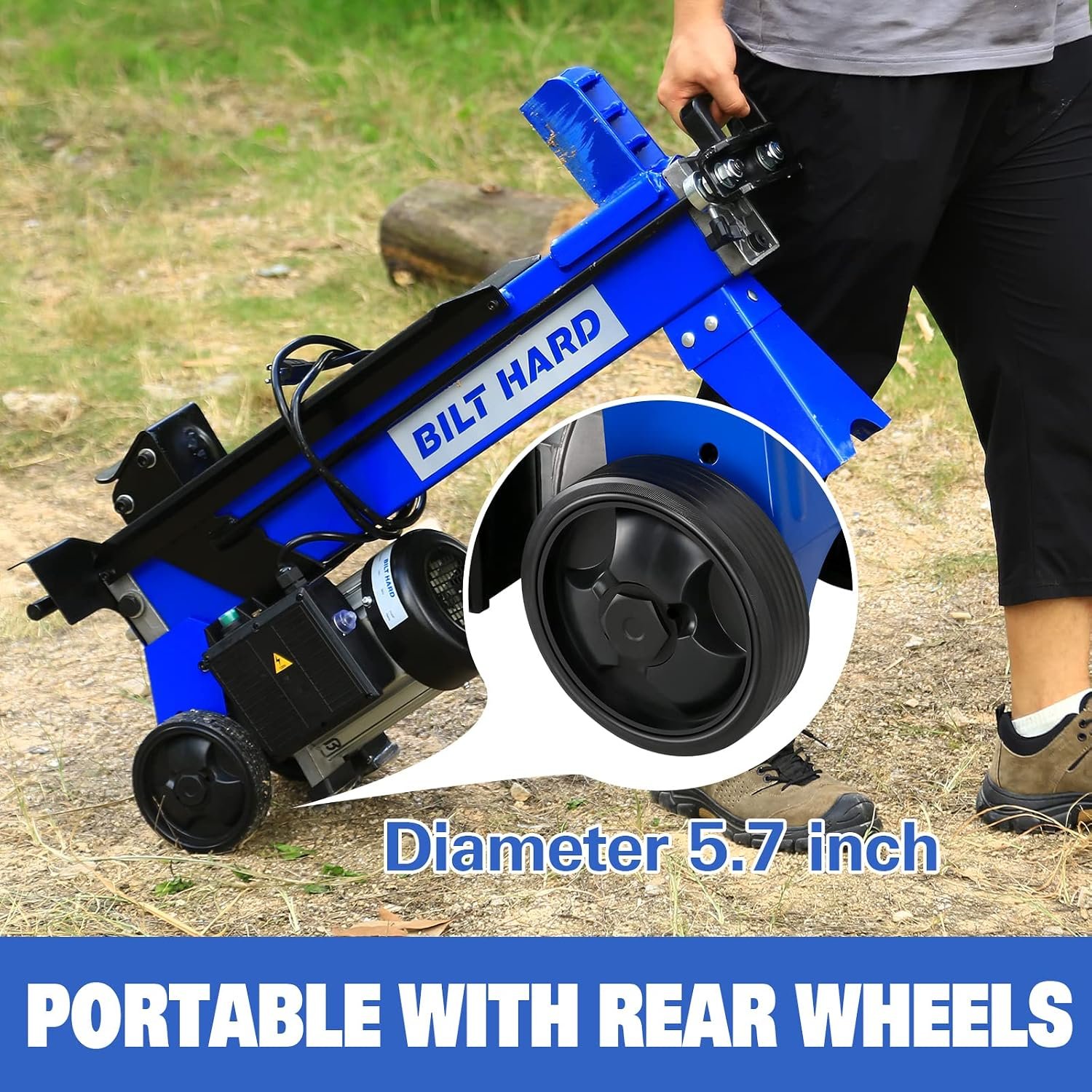

- 5.7″ transport wheels
- Fume-free electric operation
- Compact design for home firewood processing
Specifications
- Brand: BILT HARD
- Model: TLA-0101
- Type: Electric Hydraulic Log Splitter
- Splitting Force: 6.5 Ton
- Motor: 1-3/4 HP
- Current: 15 Amp
- Voltage: 120V
- Frequency: 60Hz
- Motor Speed: Up to 3,400 RPM
- Maximum Log Length: 20.5″
- Maximum Log Diameter: 9.8″
- Cycle Time: Approx. 18 Seconds
- Hydraulic Oil Capacity: 3.5L
- Operating Position: Horizontal
- Wheel Size: 5.7″
- Dimensions: 36.4″ L × 10.4″ W × 18.3″ H
- Weight: Approx. 98 lbs.
- Power Source: Corded Electric
