YARDMAX YU3666 35-Ton Full Beam Gas Log Splitter
The YARDMAX YU3666 35-Ton Gas Log Splitter is a heavy-duty hydraulic splitter designed for demanding residential firewood processing. Powered by a Briggs & Stratton CR950 engine, it delivers up to 35 tons of splitting force for handling large and difficult logs.
Its rugged full-beam U-Beam design provides excellent structural strength and supports both horizontal and vertical splitting positions. This allows smaller logs to be processed at working height while larger, heavier logs can be split vertically closer to ground level.
The hydraulic system features a 14 GPM pump with an approximately 16.5-second cycle time. An auto-return control valve helps streamline repetitive splitting, while the 7.5-inch two-way wedge and integrated log stripper make processing firewood easier.
Key Features
- Powerful 35-ton splitting force
- Briggs & Stratton CR950 gas engine
- Heavy-duty full-beam design
- Reinforced U-Beam construction

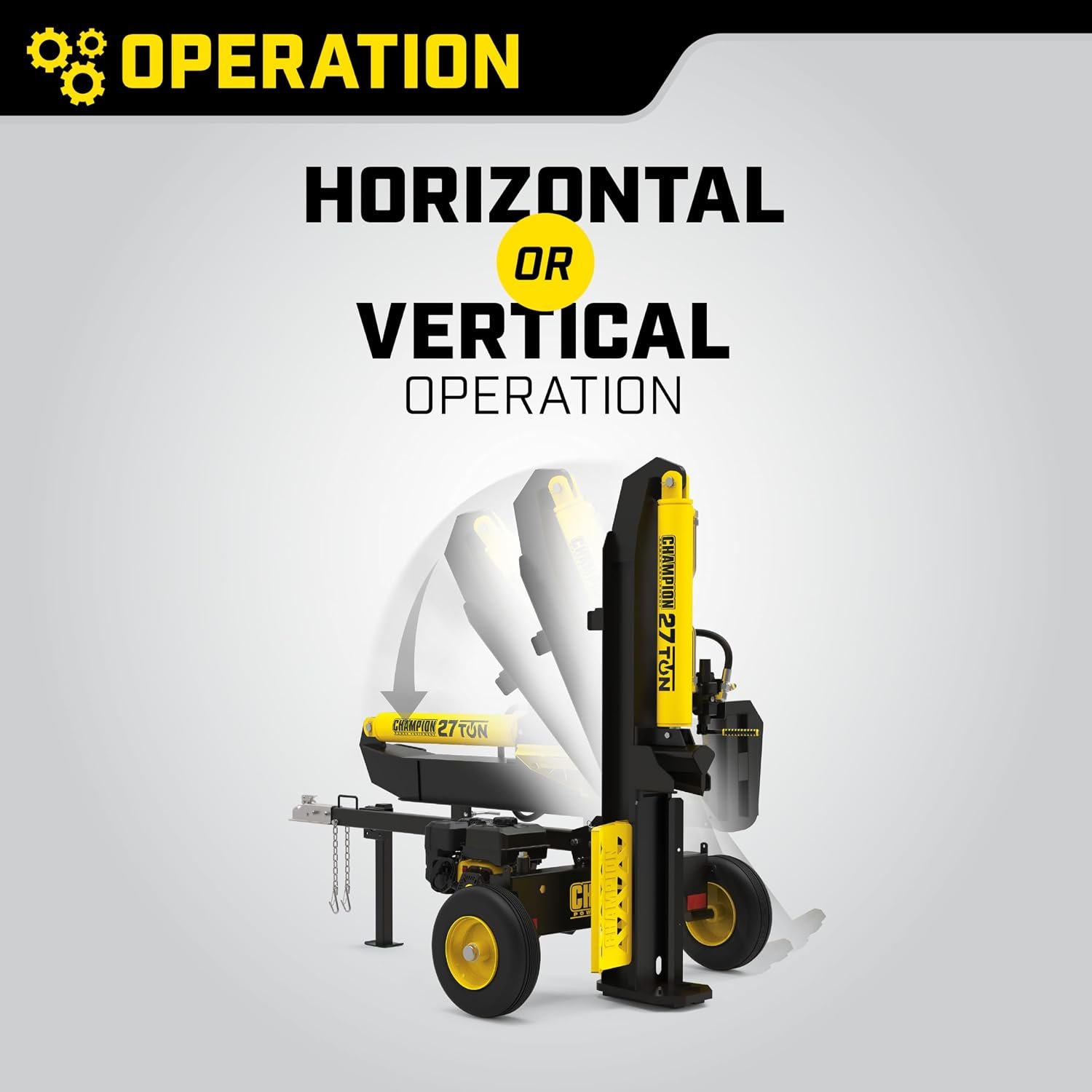

- Horizontal and vertical splitting positions
- 7.5-inch two-way splitting wedge
- Handles logs up to 26 inches long
- 14 GPM hydraulic pump
- Approximately 16.5-second cycle time
- Auto-return control valve with adjustable detent
- 6.2-gallon hydraulic capacity
- Hydraulic fluid included
- Adjustable log cradles
- Integrated log stripper
- Beam handle for easier position changes
- 16-inch DOT-approved road tires
- 2-inch ball coupler
- Flip-down support stand
- Maximum towing speed up to 45 MPH
Specifications
- Brand: YARDMAX
- Model: YU3666
- Type: Gas Hydraulic Log Splitter
- Splitting Force: 35 Tons
- Engine: Briggs & Stratton
- Engine Model: CR950
- Beam Type: Full Beam
- Splitting Positions: Horizontal / Vertical
- Maximum Log Length: 26″
- Wedge Size: 7.5″
- Wedge Type: 2-Way
- Hydraulic Pump: 14 GPM
- Cycle Time: 16.5 Seconds
- Hydraulic Capacity: 6.2 Gallons
- Control Valve: Auto Return with Adjustable Detent
- Rear Tires: 16″ O.D. DOT-Approved Road Tires
- Ball Coupler: 2″
- Log Cradle: Included
- Log Table: Sold Separately
- Hydraulic Fluid: Pre-Filled
- Maximum Towing Speed: 45 MPH
- Commercial Warranty: 90 Days
