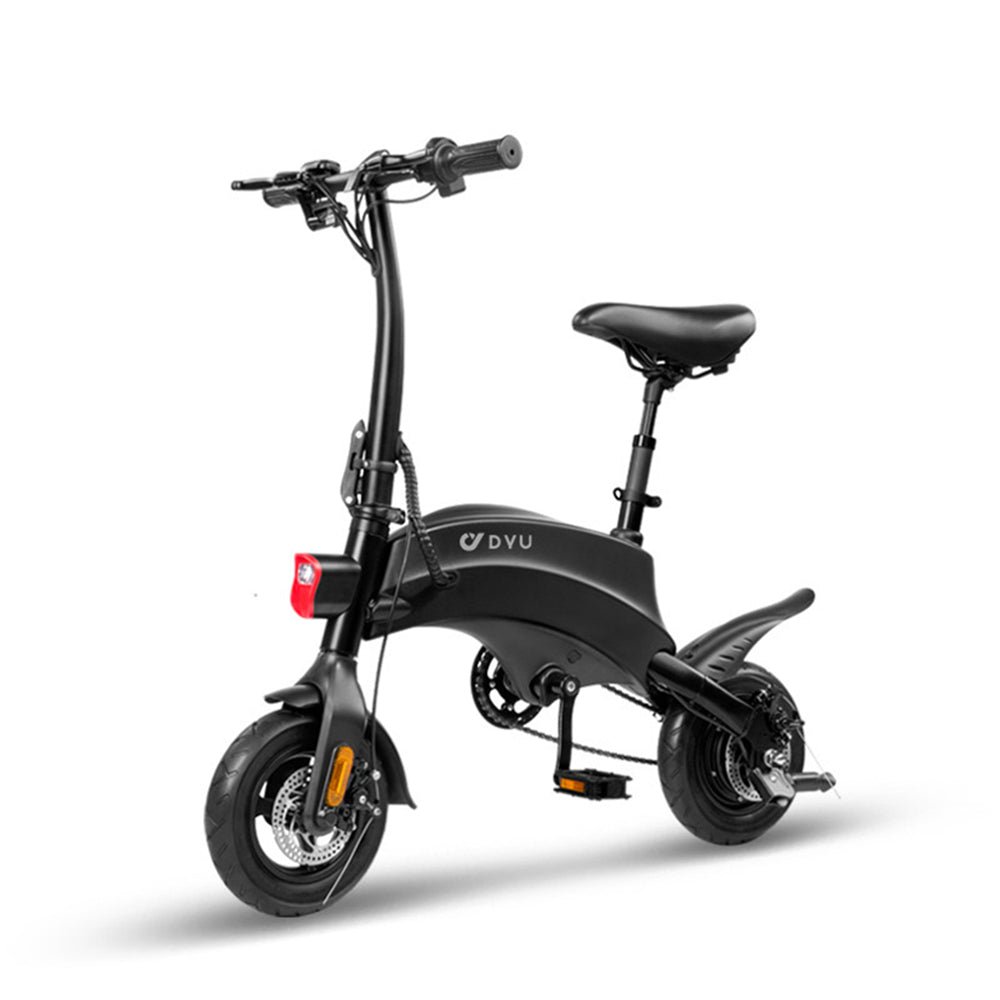

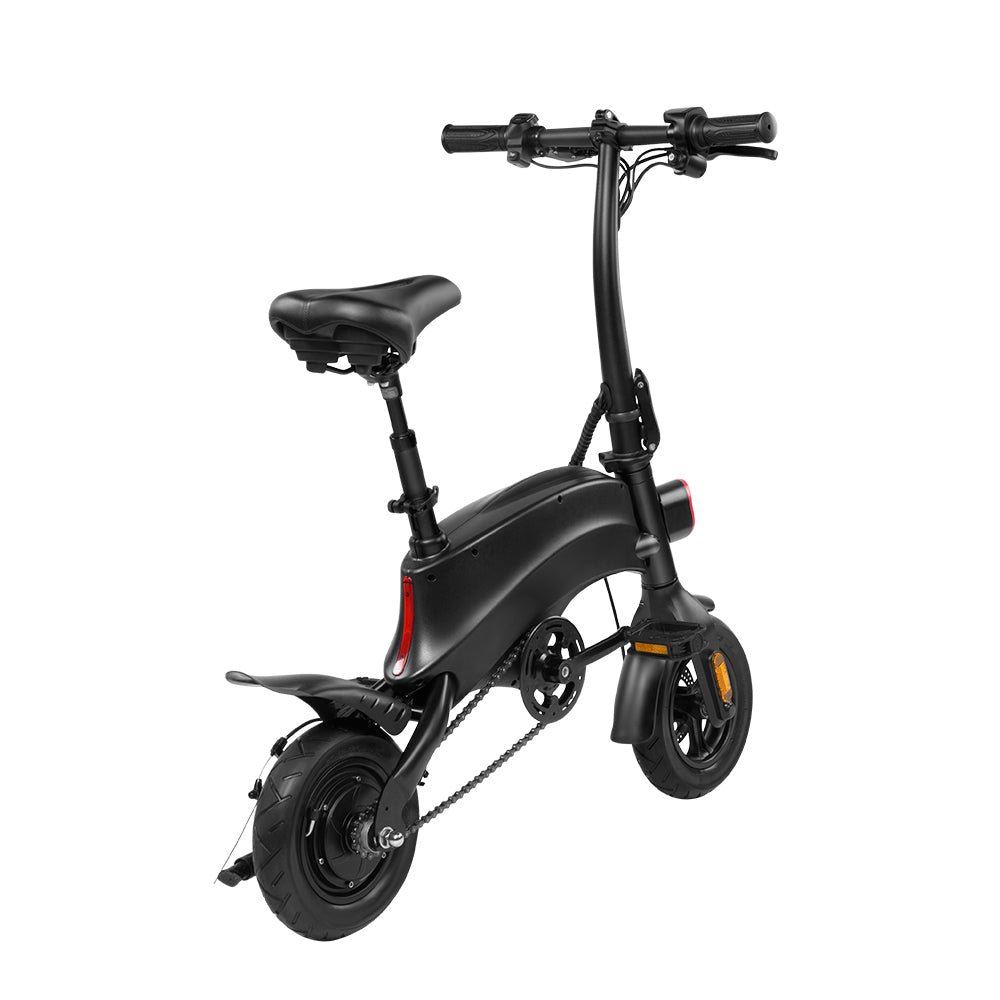

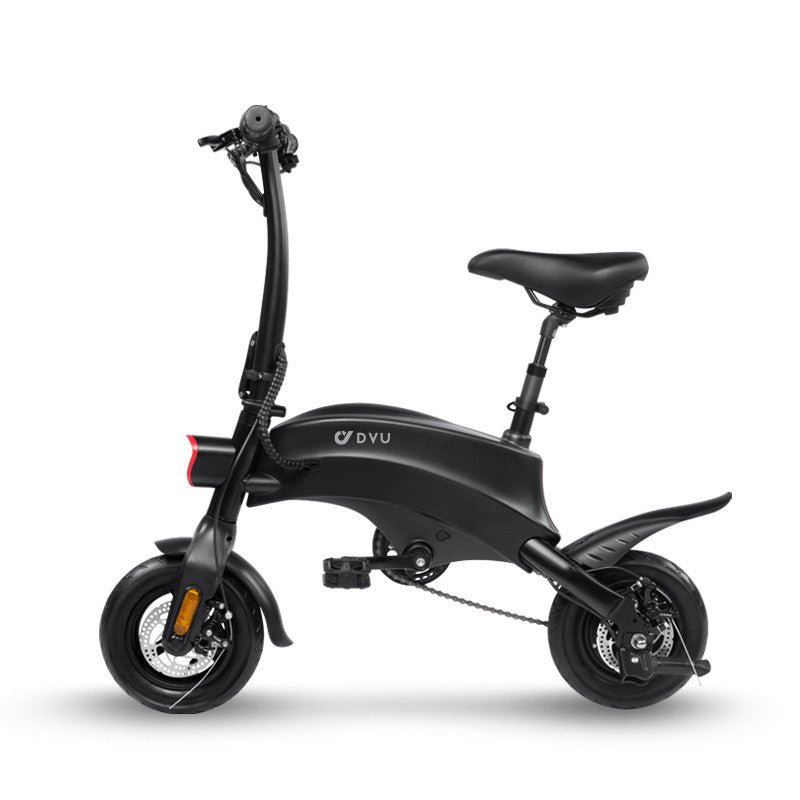

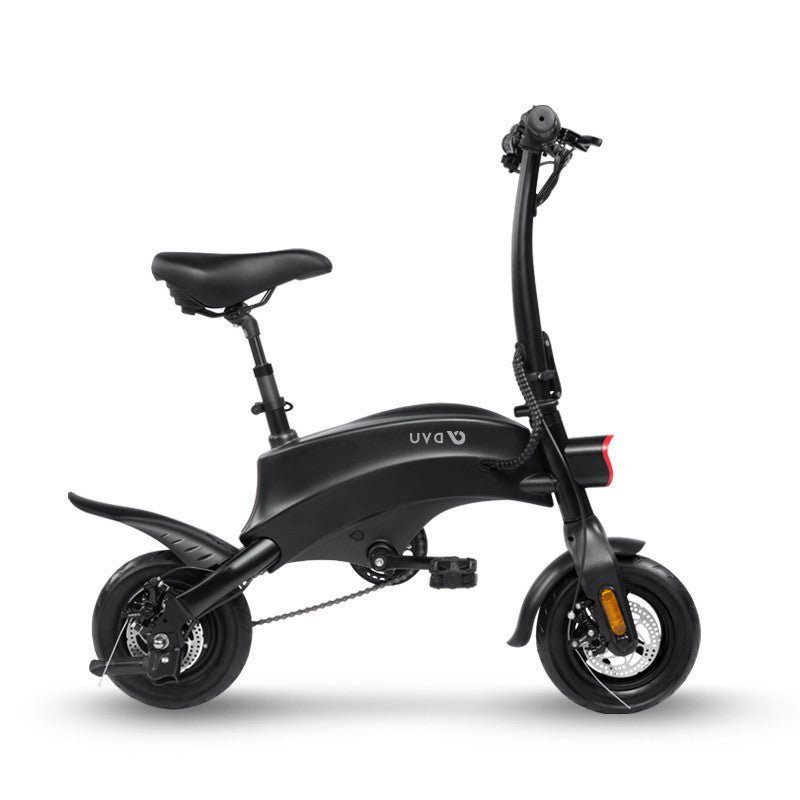

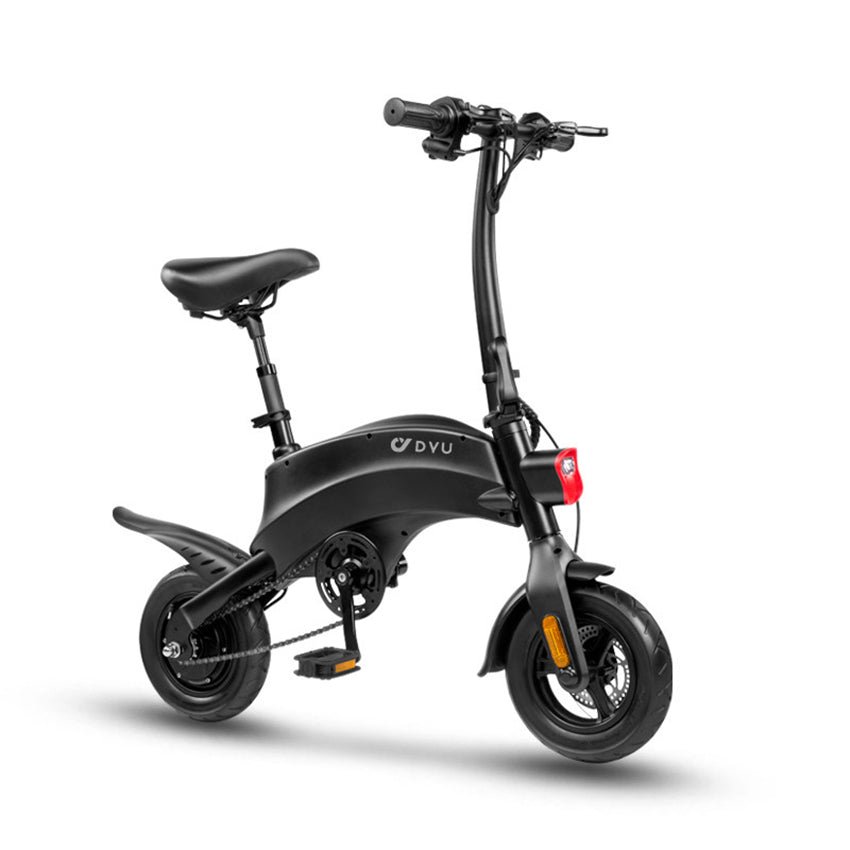

DYU S2
Key Features
- 30-37 Miles per charge in pedal assist mode
- Top speed of 15.5 mph
- 36V 10Ah lithium-ion battery
- 10 inch wheels, ultra light and portable
Take A Closer Look
HIGH-BRIGHTNESS LIGHTS
Bright lights for safe riding and the taillight turns on automatically when braking.

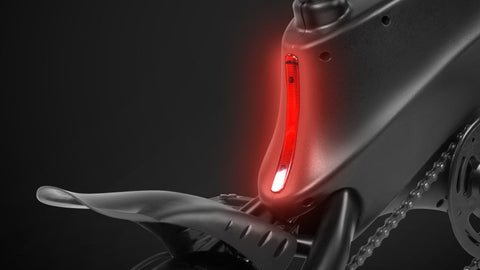

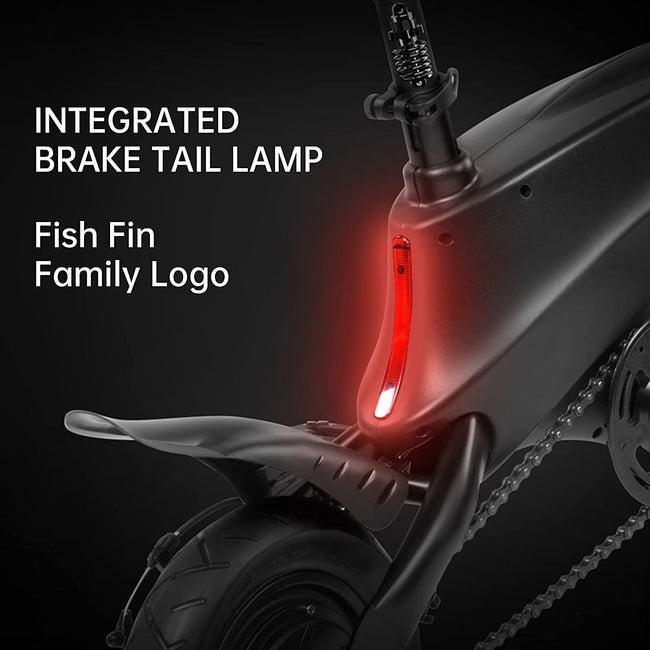

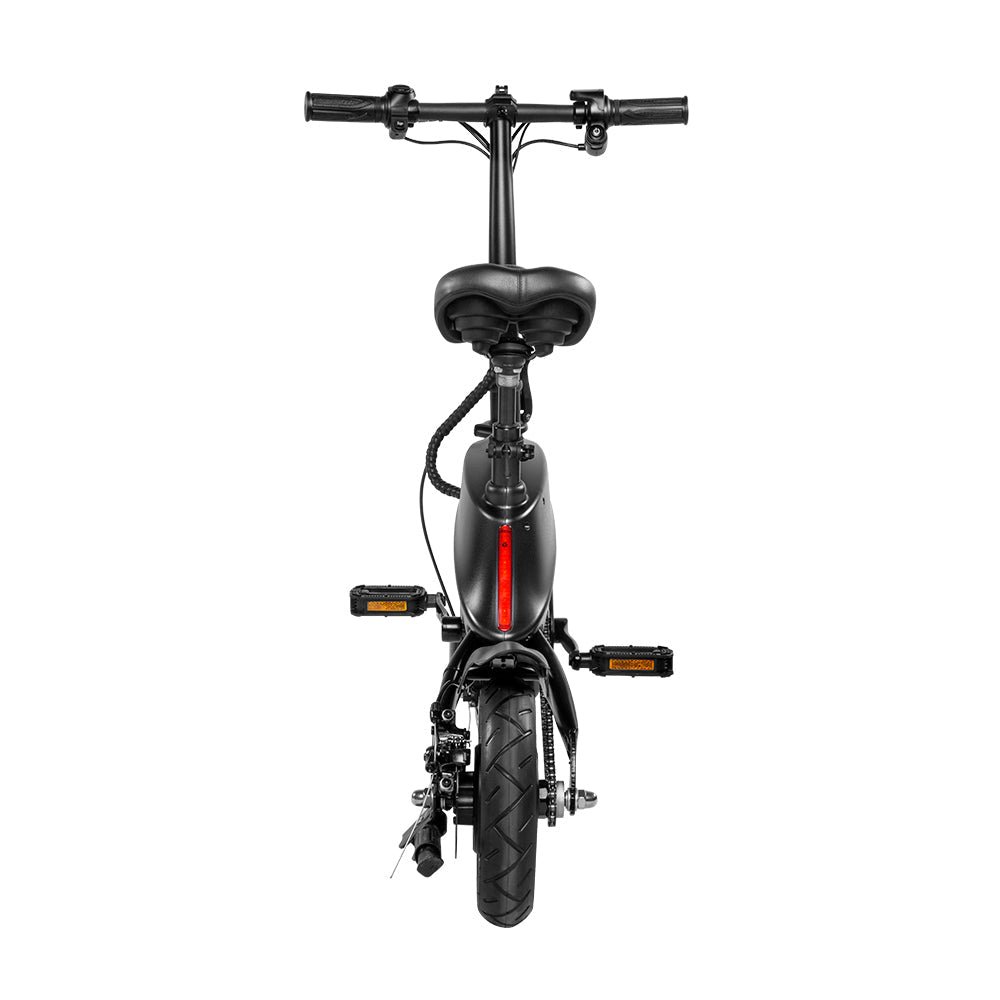

UNIQUE TAILLIGHT DESIGN
The sleek and practical taillight adds to the beauty of this ebike.

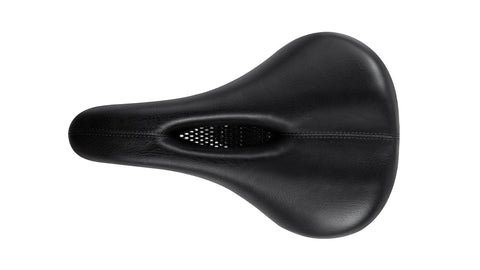

COMFORTABLE SEAT
The adjustable seat is fitted with a built-in suspension system.
WEAR RESISTANT
The highly durable vacuum tires are also anti-skid and explosion proof.

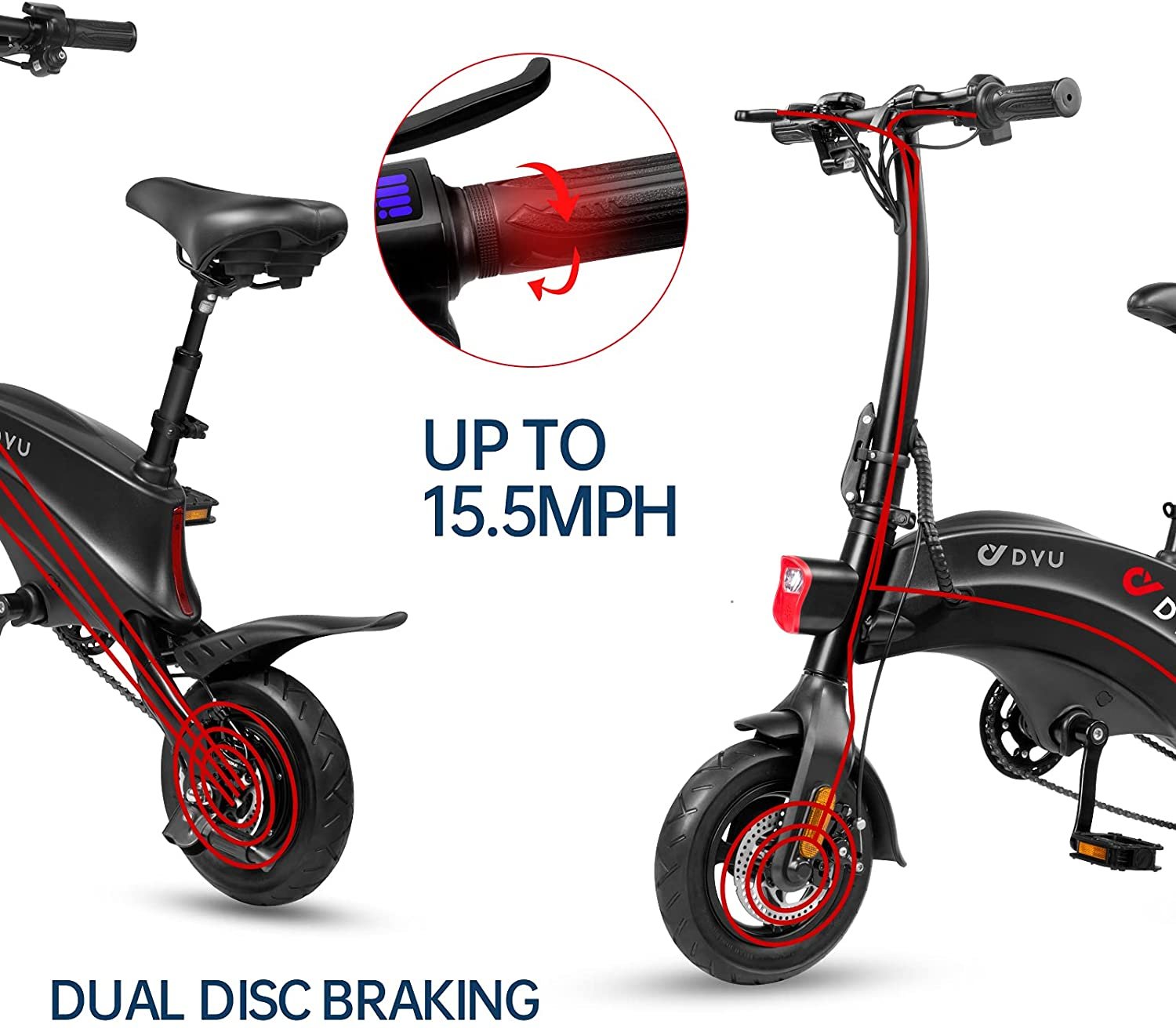

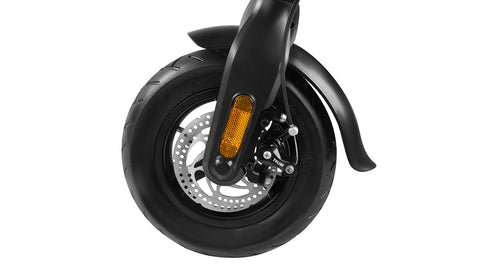

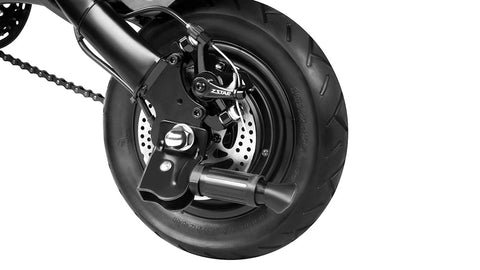

FRONT AND REAR DISC BRAKES
Sensitive front and rear disc brakes greatly shorten braking distance and ensure safety. The high-temperature carbon treatment on the brake discs, enhanced by dynamic balance detection technology, help avoid over-heating and excessive wear on the brakes.

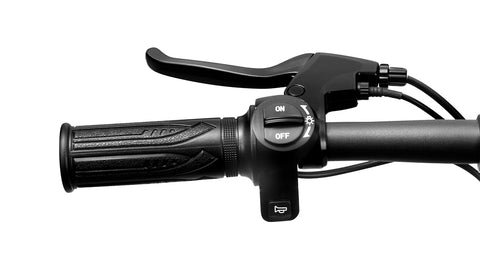

SWITCH MODES
Switch the riding mode easily with one button.

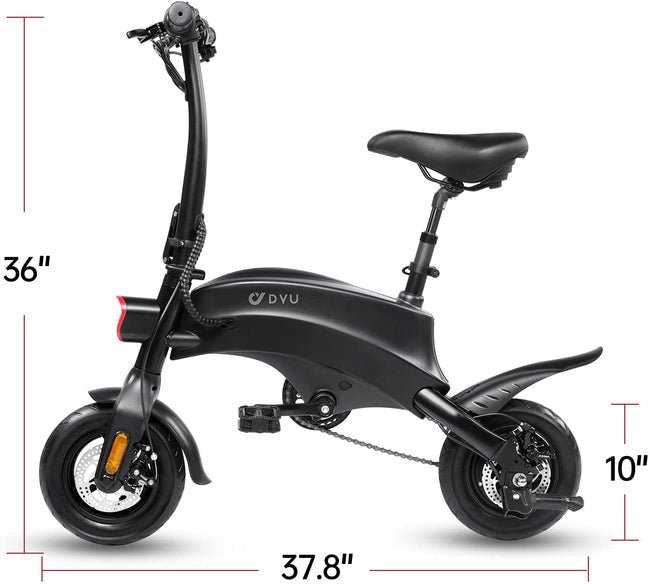

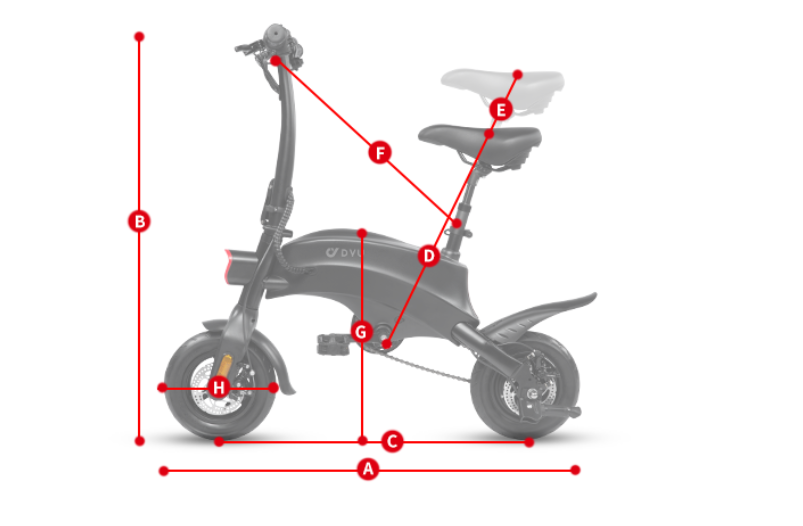

Dimensions
- A – Total Length: 35.4” (90 cm)
- B – Handlebar Height: 39.3” (100 cm)
- C – Wheelbase: 27.5” (70 cm)
- D – Minimum Seat Height: 20” (50 cm)
- E – Maximum Seat Extension: 8” （20 cm)）
- F – Top Tube Distance: 20” (50 cm)
- G – Pedal height: 17.7” (45 cm)
- H – Wheelbase: 10” (25 cm)
SPECIFICATIONS
Dimensions
- Frame material: Metal

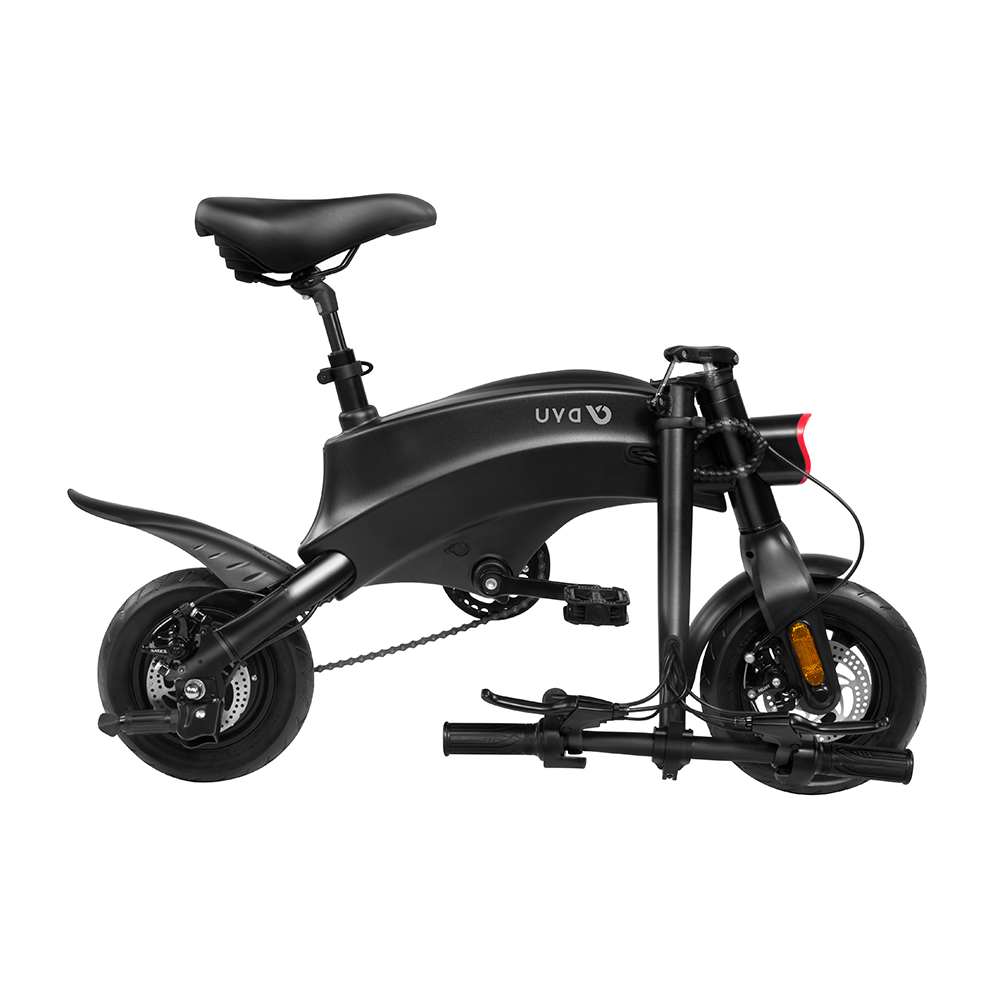

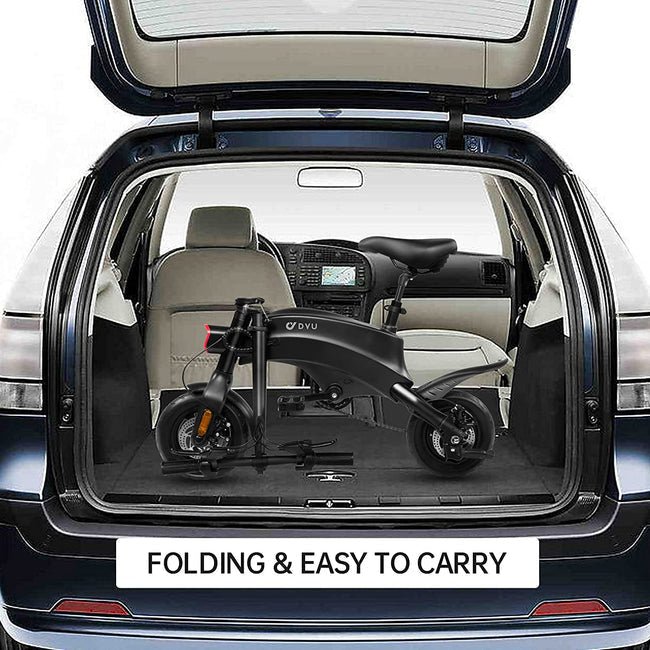

- Folded: 960*220*680 mm
- Full: 960*490*915 mm
- Packing: 1000*220*550 mm
- Center distance of front and rear wheels: 700 mm
- Foot-off height: 130 mm
Performance
- Weight: 37 lb (17 kg)
- Load Capacity: 265 lb (120 kg)
- Riding speed: 13.3 Mph (20 km/h)
- Max speed: 15.5 Mph (25 km/h)
- Uphill: 1.1 KWh
- Range in throttle mode: 25 Mi (40 km)
- Range in pedal assist mode: 31 Mi (50 km)

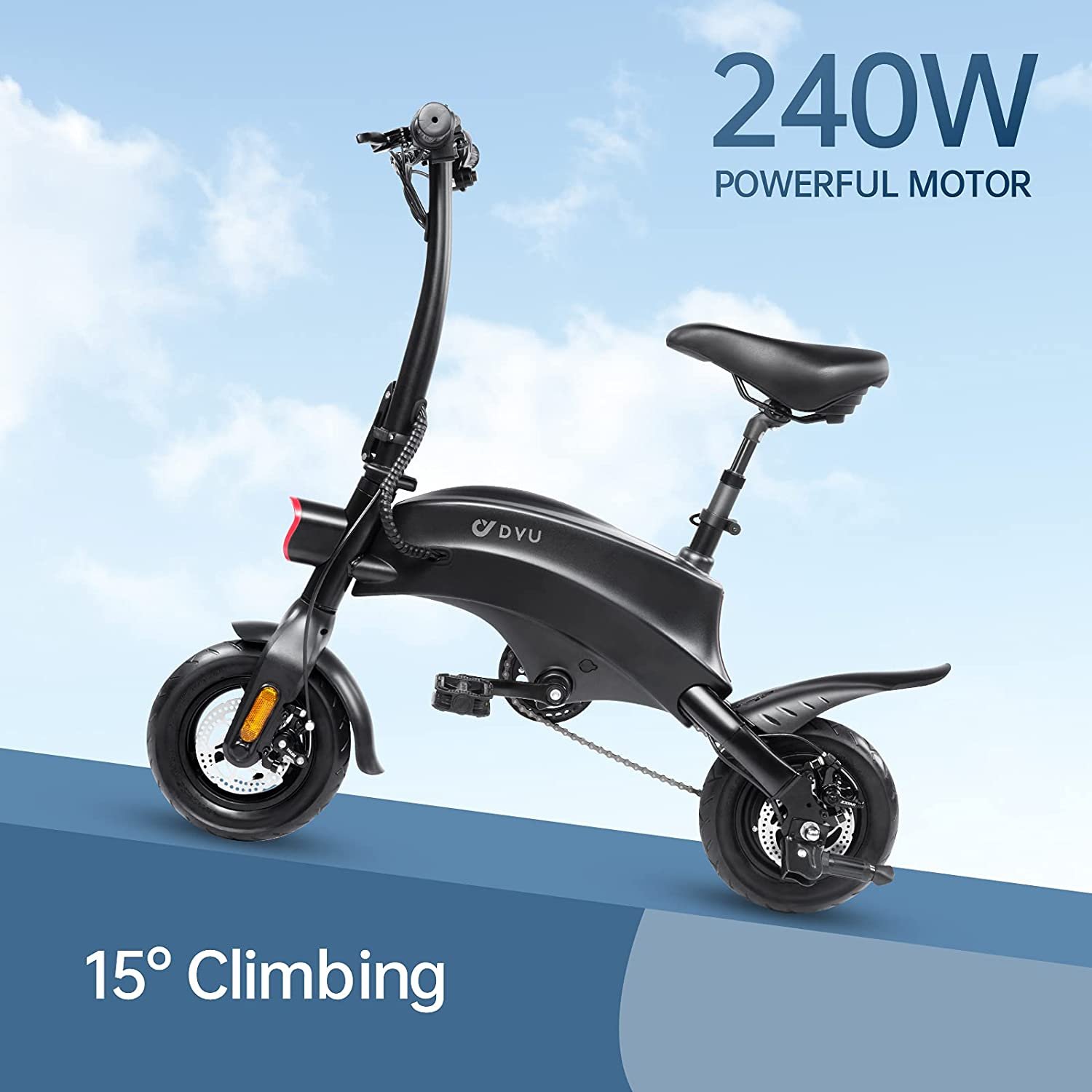

- Uphill: 15°
- Operating temperature: 10~45°(50-113 F°)
Waterproof level: IP54
Power
- Battery type: Lithium battery
- Battery capacity: 10 Ah
- Battery rated voltage: DC36V
- Charging voltage: DC42V
- Charger input voltage: AC220V
- Motor type: 240 W Brushless DC motor
- Charging time: 6 h
- Motor rated power: 240 W
- Motor rated speed: 460 r/min
- Motor rated voltage: 36V
- Controller undervoltage value: 31±1V
- Controller current limit value: 15±1A
- Battery insurance tube main insurance 30A secondary insurance 10A
Features
- Anti-theft positioning: No
- Smart APP: No
- Headlight: Yes
- Taillight: Yes
- Adjustable seat: Yes
- Cruise control: Yes, upon 8 seconds
- Brake mode: Front and rear disc brakes
