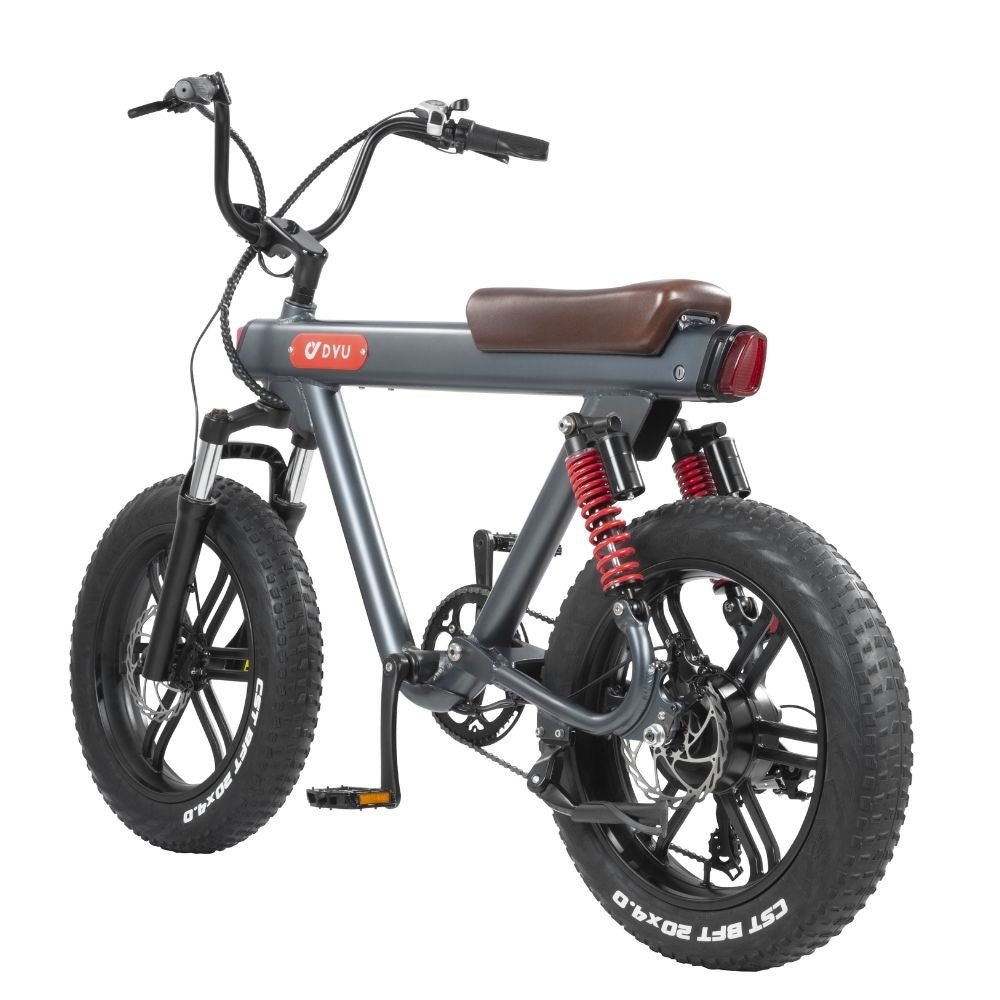

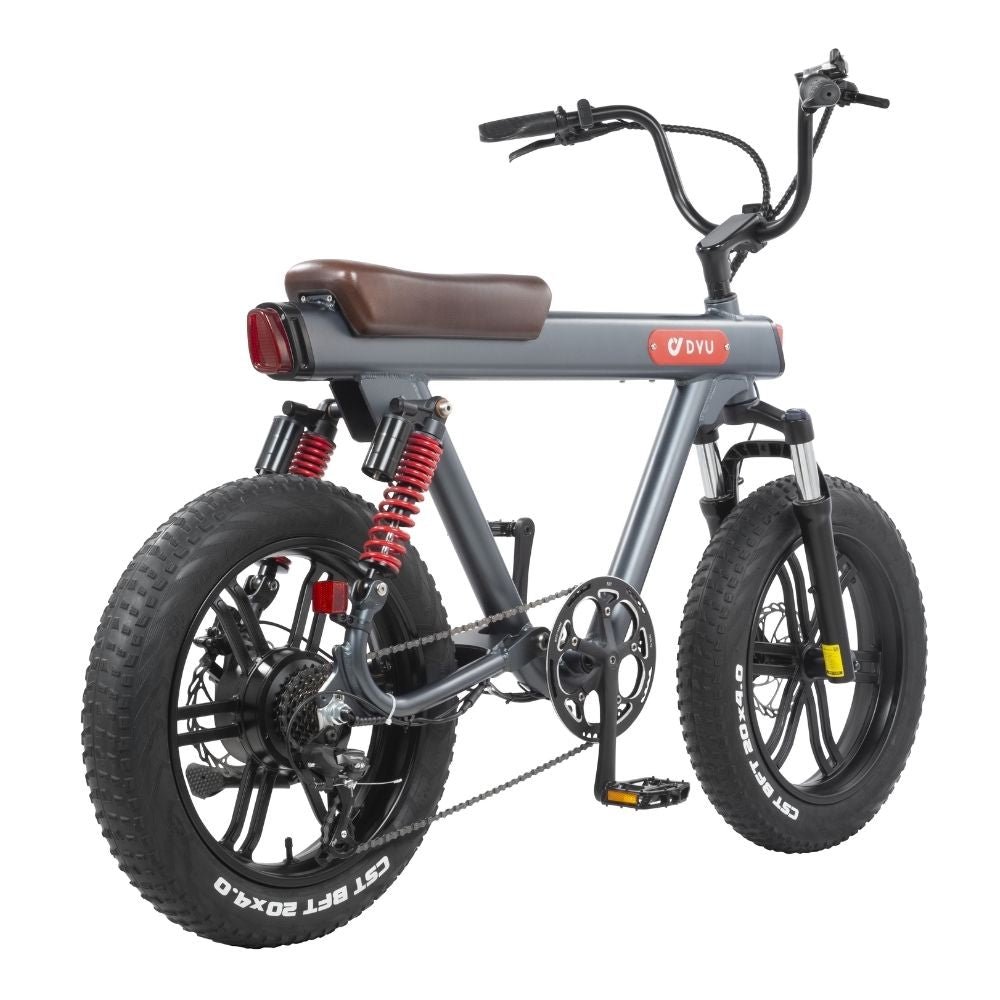

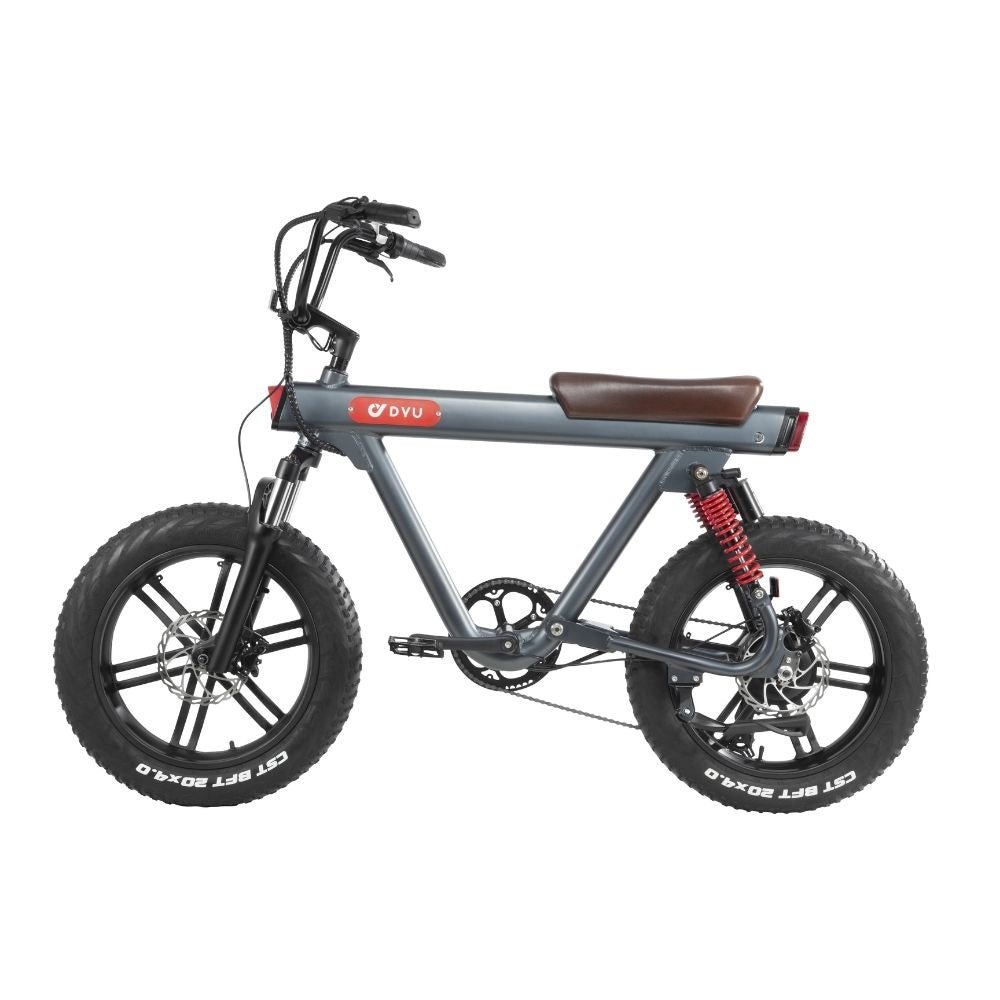

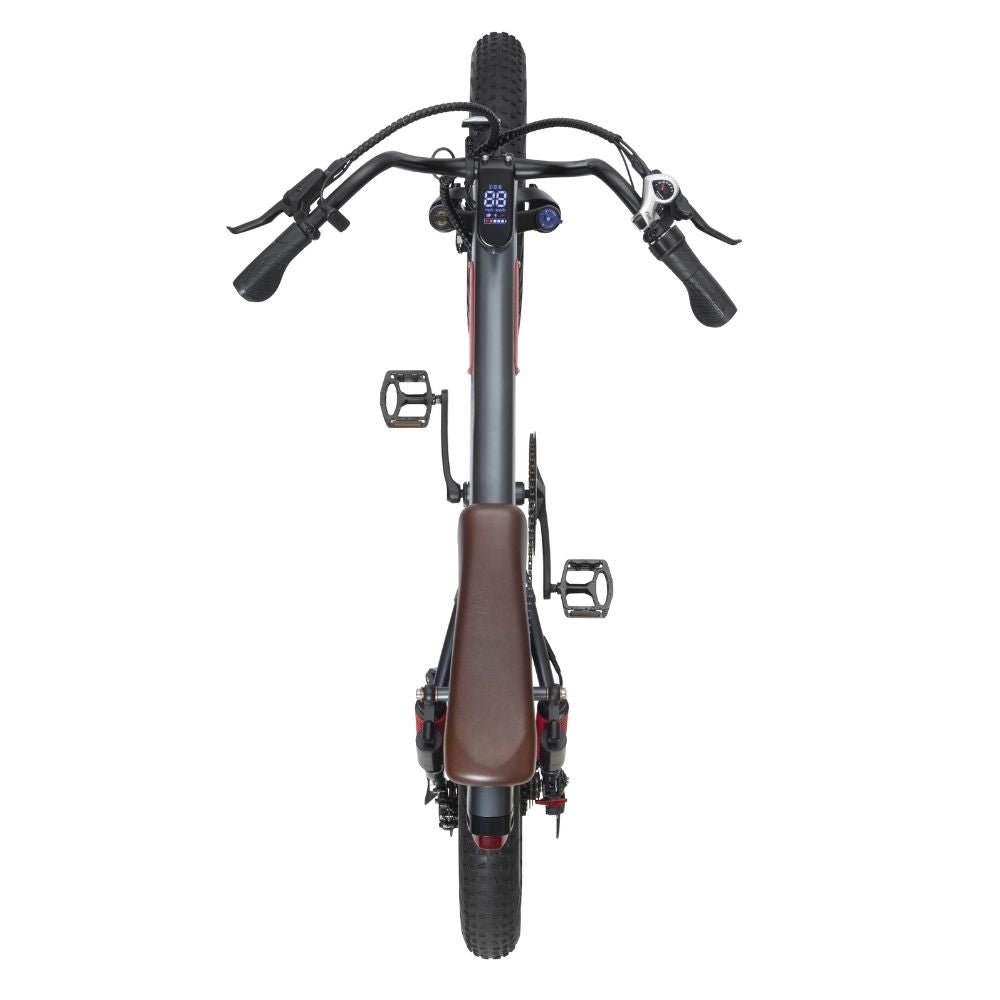

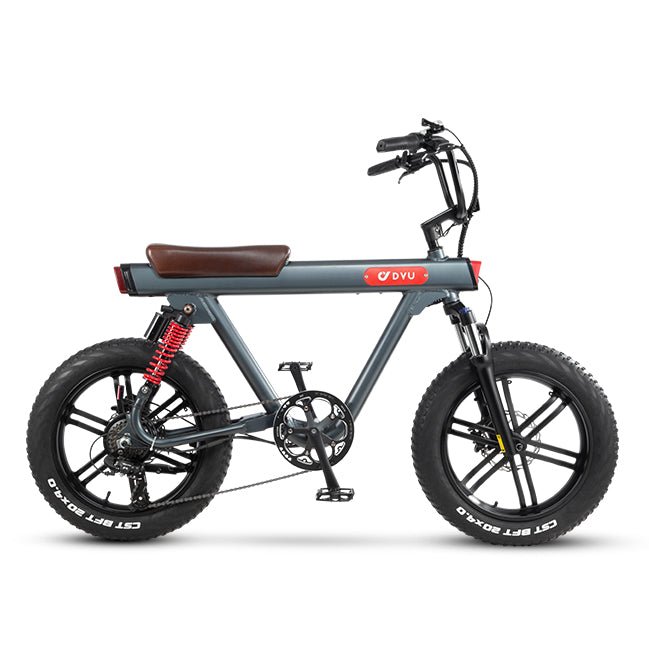

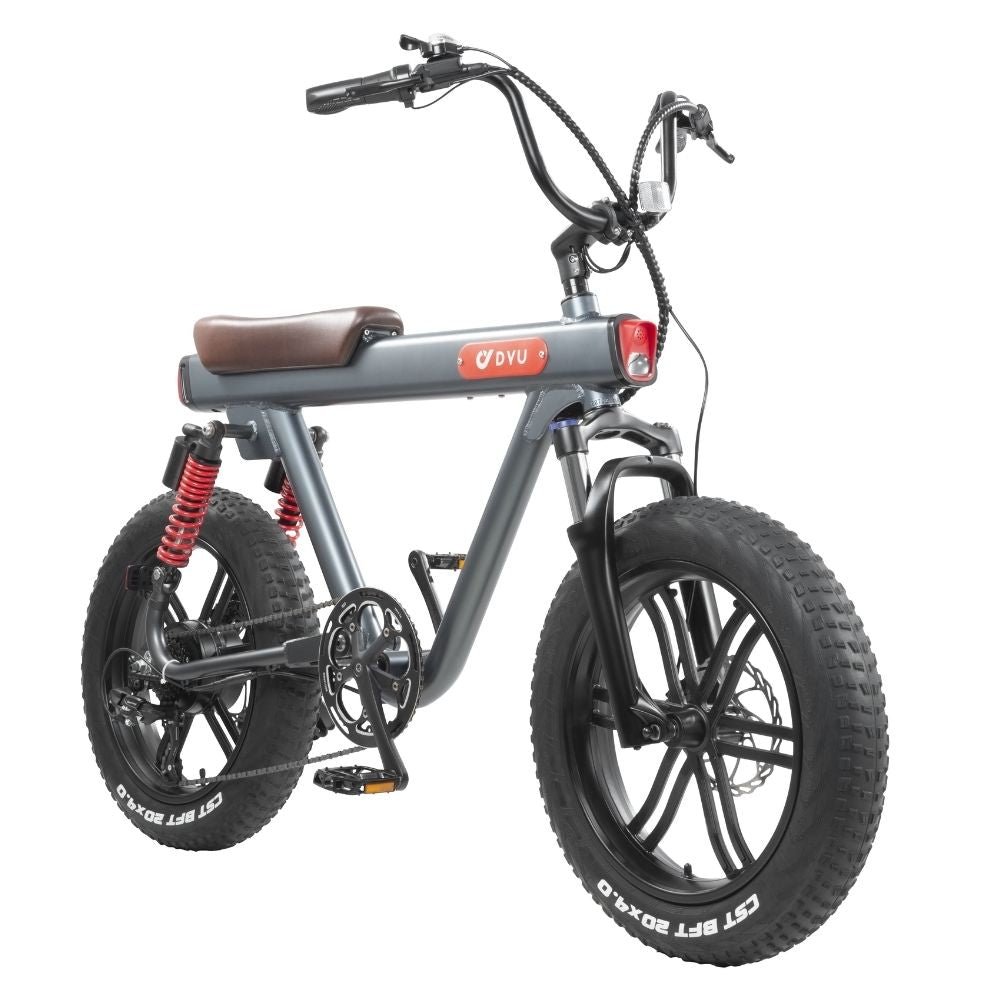

DYU V8
Strong Power
With its strong 750W high-power motor and SHIMANO 7-speed cassette, the V8 e-bike is highly capable of taking you to any destination across all terrains.

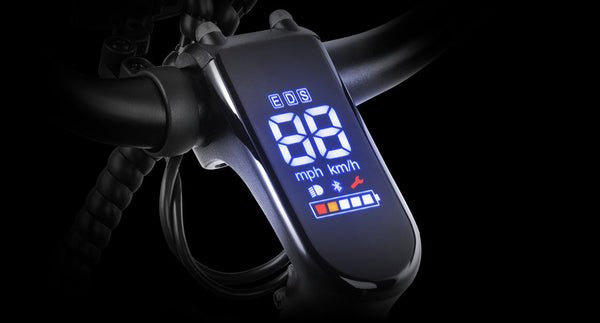

Multi-Function LCD Display
The LCD display provides the following information:
- Battery Level (Real-time battery level)
- Speed (Real-time speed)
- Mode (Current riding mode)
- Mileage (Mileage of a single ride and total mileage)
- Warning (Warning of failure with error code)

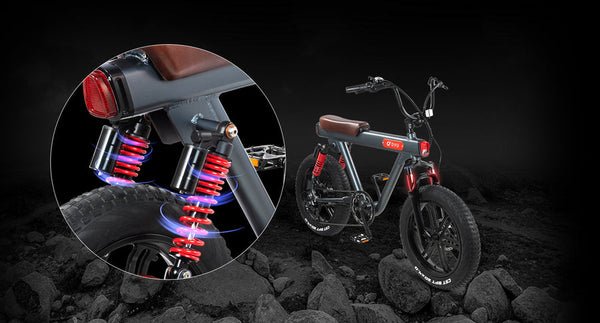

Dual Suspension System
With the front and rear dual shock absorbing system, you do not have to carefully avoid rocks and pebbles but continue to enjoy a comfortable ride.
Take A Closer Look

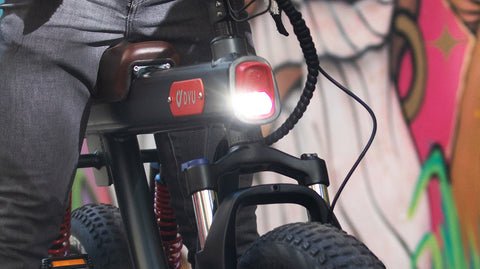

LED FRONT AND REAR LIGHTS
Guaranteed to ride safely in the dark.

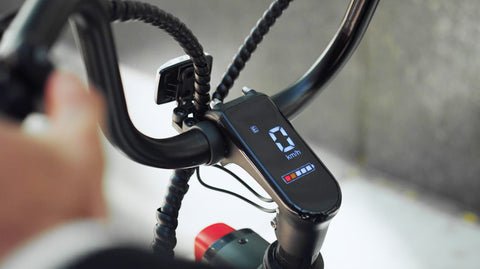

LCD DASHBOARD
Be more aware of your current cycling status and change your riding plan at any time.

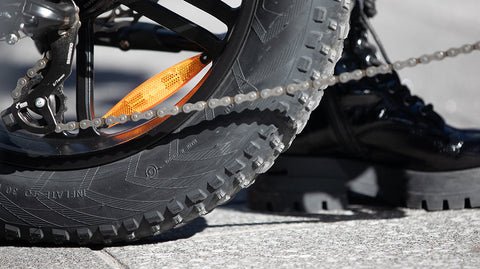

20 x 4 INCH ALL-TERRAIN TIRES
Handle any terrain easily with the enhanced grip and increased shock absorbing.

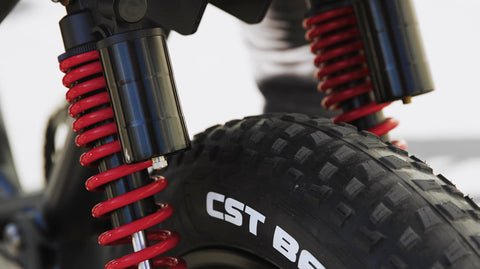

DUAL SUSPENSION SYSTEM
The powerful shock absorbers make riding over potholes or off-road terrain more comfortable.

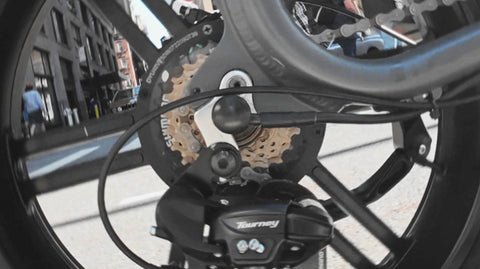

SHIMANO 7-SPEED CASSETTE
Offers more riding options for various terrains.

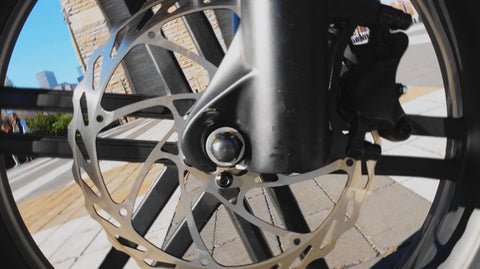

HYDRAULIC DUAL DISC BRAKES
Provide the most agile and safe braking possible with front and rear brakes.

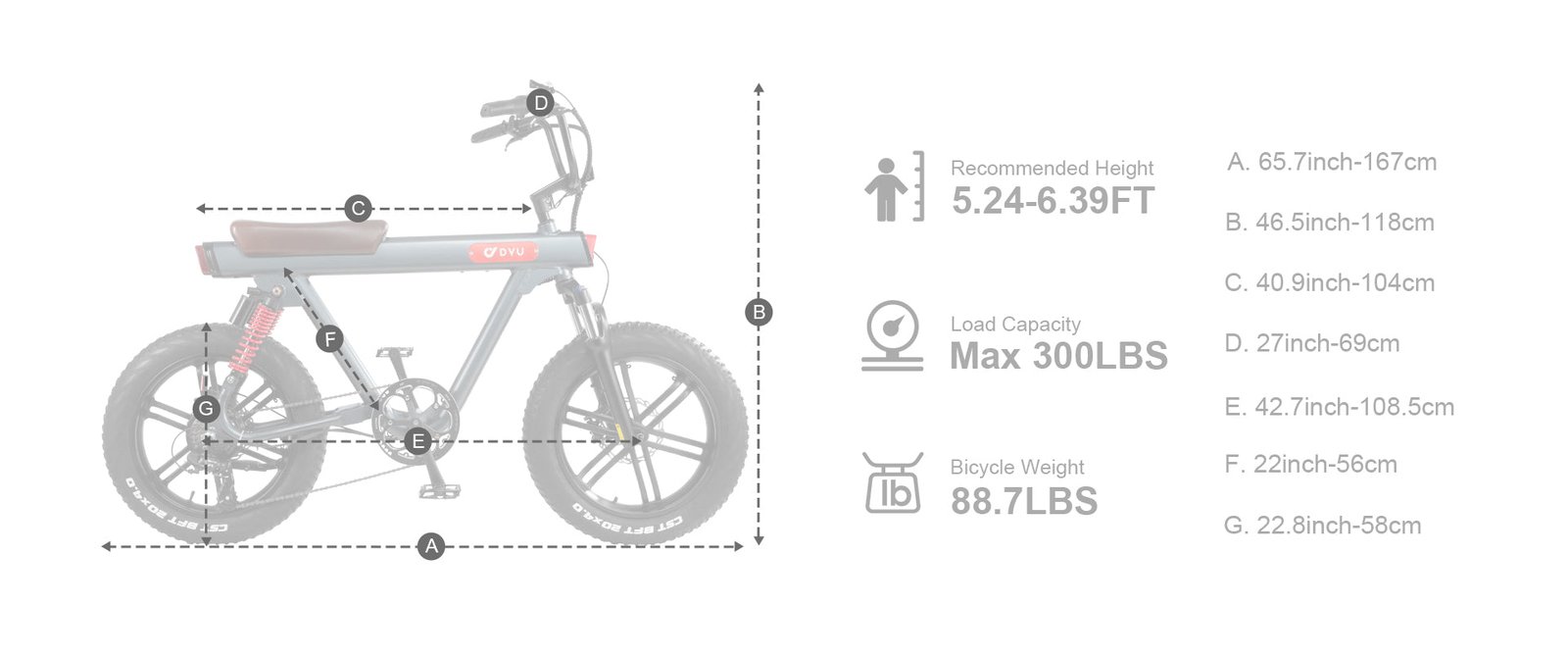

Dimensions
Review Videos
Assembly Video
SPECIFICATIONS
Appearance & Size
- Frame Material: Aluminum Alloy
- Foldable Size: 1420*235*935 mm
- Spread Size: 1645*655*1160 mm
- Package Size: 1450*310*830 mm
- Wheel Hub Size: 20 Inch
- Frame Color: Gray
- Pedals’ Ground Clearance: 130 mm
Performance
- Net Weight: 88.8 lbs (40.3 kg)
- Max Loading: 330.69 lbs (150 kg)
- Three Modes: 5.5 mph (25 km/h) / 21.7 mph (35 km/h) / 28 mph (45 km/h)
- Max speed: 28 mph (45 km/h)
- Power Consumption per 100km: 1.08 KWh
- Pure Electric Mode: Three Modes
- Assist Mode: Three Modes
- Uphill Grade: 15 °
- Waterproof Level: IP54
- Temperature: -10 to 45 ℃
Power
- Battery Type: Lithium Ion Battery
- Battery Capacity: 15.5Ah
- Battery Rated Voltage: DC 48V
- Charging Voltage: DC 48V
- Charger Input Voltage: AC 100-240V
- Motor Rated Power: 750W
- Charging Time: 7-8 hours
- Motor Rated Speed: 480 r/min
- Controller Under-Voltage Value: 41±1V
- Current Limit Value: 45±1A
- Battery Fuse: No
- Motor Rated Voltage: 48V
- Motor Type: High-speed brushless gear motor
Features
- Anti-Theft System: No
- Smart App Control: No
- Sensor: Speed Sensor
- Brake Mode: Hydraulic Disc Brakes
- Personalized Sticker: Support
- Front Light: Yes
- Rear Light: Yes
- Seat Height: Not Adjustable
