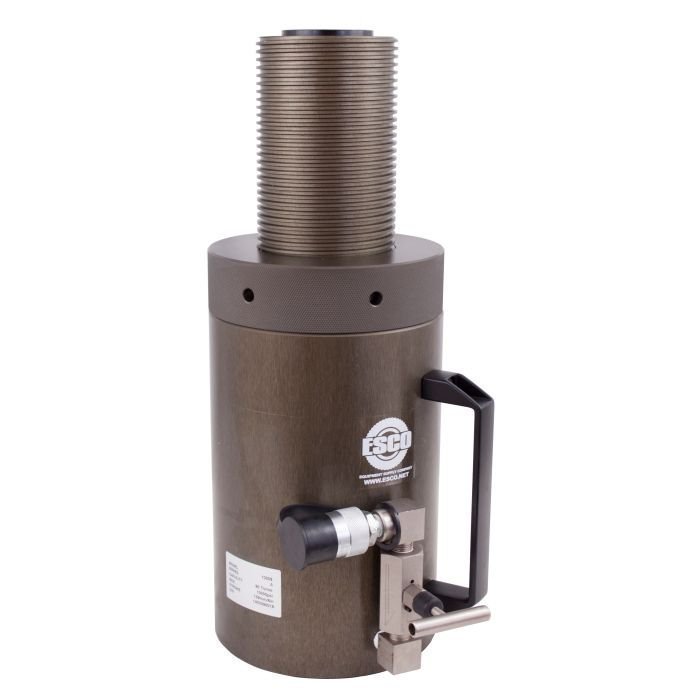

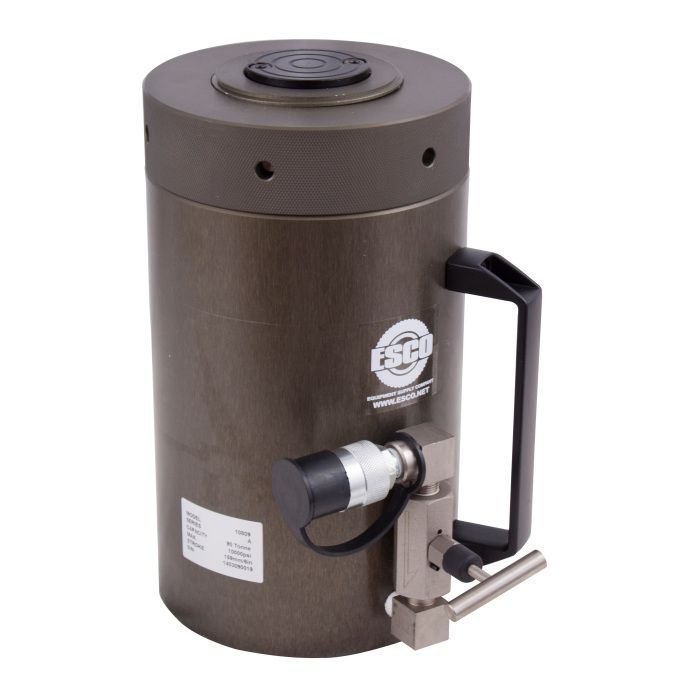

The ESCO Professional Aluminum Locking Collar Jacks (Cylinders) are known for their quality and lightweight durable design. The most important part of lifting a heavy load is the ability to sustain the load. While in most instances support jack stands are used; the Locking Collar Jack (Cylinder) acts as its own self-contained support stand.
Features
- Designed For Use In Multiple Heavy Lifting Applications Including OTR/Mining Vehicle Lifting
- High Tonnage: 100-Ton Lifting Capacity
- Heavy Duty Aluminum Design At A Fraction Of The Weight
- Lightweight And Compact Design Makes Unit Highly Portable

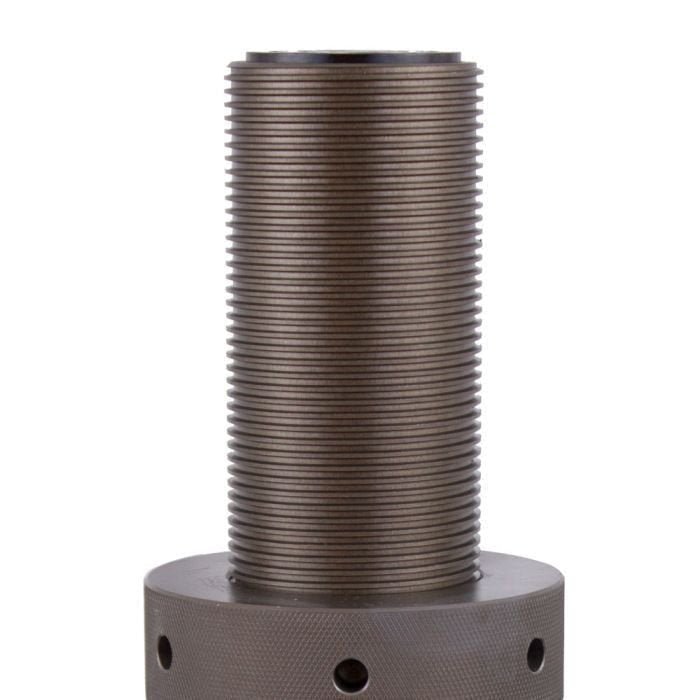

- Safety Lock Nut For Mechanical Load Holding
- 6? (152mm) Stroke
- 3-Year Extended Warranty
Specifications
- Lifting Capacity: 100-Tons
- Stroke: 6? (152mm)
- Max Pressure: 10,000 PSI
- Min. Height: 13.37? (339mm)
- Max. Height: 19.60? (497mm)
- Cylinder Effective Area: 20.58? (in²)
- Oil Capacity: 128.39? (in³)
- Cylinder Width: 7.44? (188mm)
- Piston Rod Diameter: Tr110 x 6mm
- Nut Thickness: 1.97? (50mm)
- Weight: 66 lbs. (30 kg)
- Warranty: (3) Years Limited*
