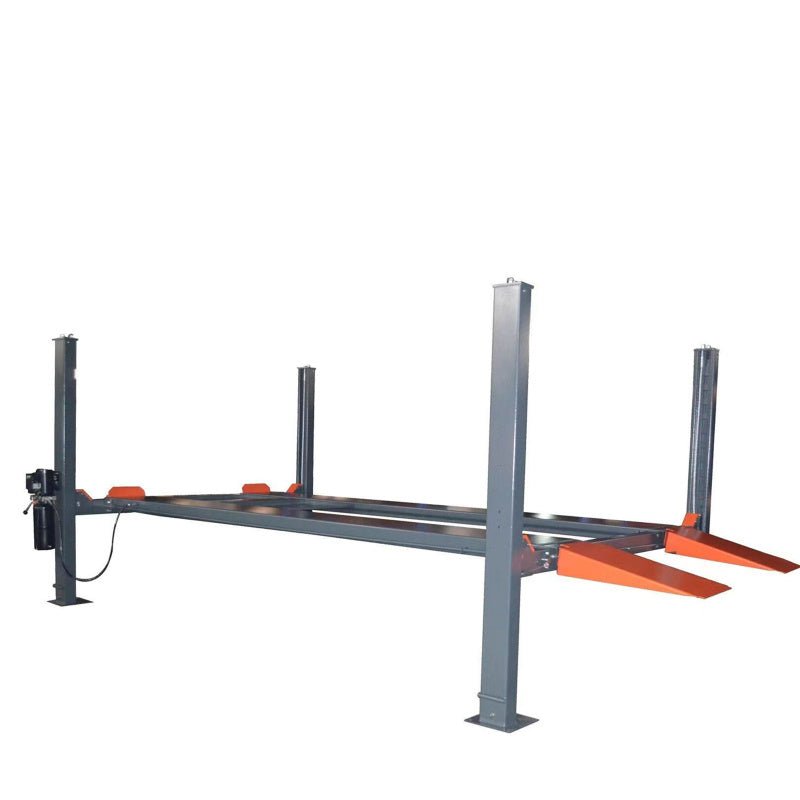

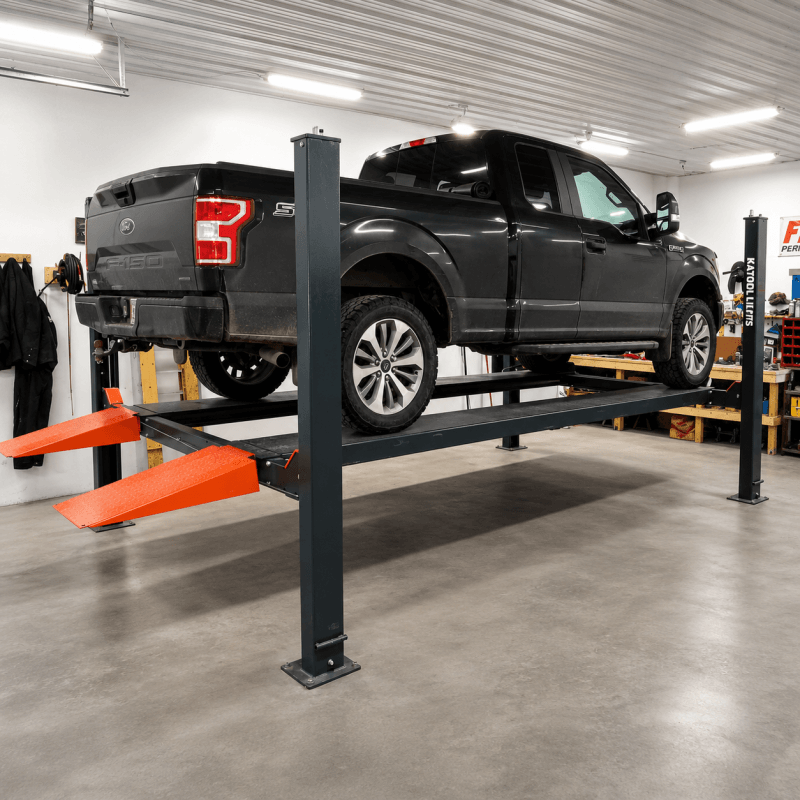

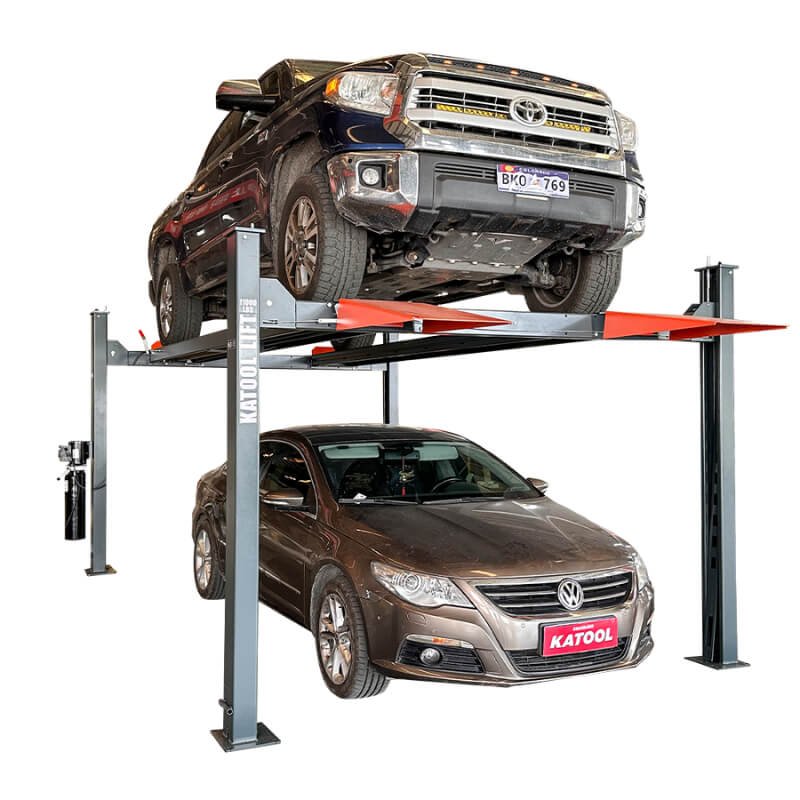

The KATOOL KT-4H110 4-Post Vehicle Lift is a heavy-duty automotive lift designed for lifting and servicing cars, SUVs, and many light trucks. With an 11,000 lb lifting capacity, extended runways, a high lifting position, and multiple mechanical safety systems, it is suitable for professional automotive workshops, service garages, and properly equipped residential garages.
The four-post configuration provides a stable drive-on platform, while the hydraulic lifting system and synchronized cable arrangement allow the runways to rise evenly during operation.
11,000 lb Lifting Capacity
The KT-4H110 provides a rated lifting capacity of 11,000 lbs / 4,990 kg, giving it the strength required for a wide range of passenger vehicles, SUVs, and compatible light trucks.
Heavy-duty Q235 and Q245 steel construction provides structural support for demanding garage and workshop applications.
84.25-Inch Maximum Lifting Height
With a maximum lifting height of approximately 84.25 inches, the KT-4H110 provides generous under-vehicle access for inspections, maintenance, repairs, exhaust work, oil changes, and other automotive service tasks.
The minimum runway height is approximately 6.2 inches, making vehicle loading straightforward for many common applications.

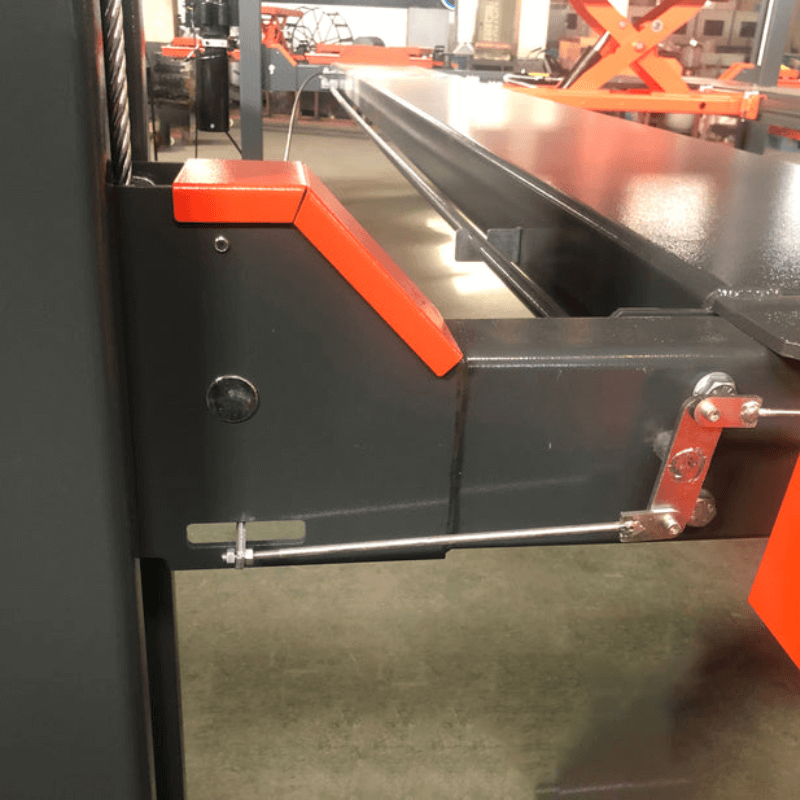

Primary & Secondary Safety Locks
The KT-4H110 incorporates four mechanical locking devices with primary and secondary safety protection.
A secondary locking system functions as a slack-cable safety device, while the single-point manual safety release allows the operator to disengage the locks from one control location when lowering the vehicle.
Multiple locking positions allow the runways to be secured at different working heights.

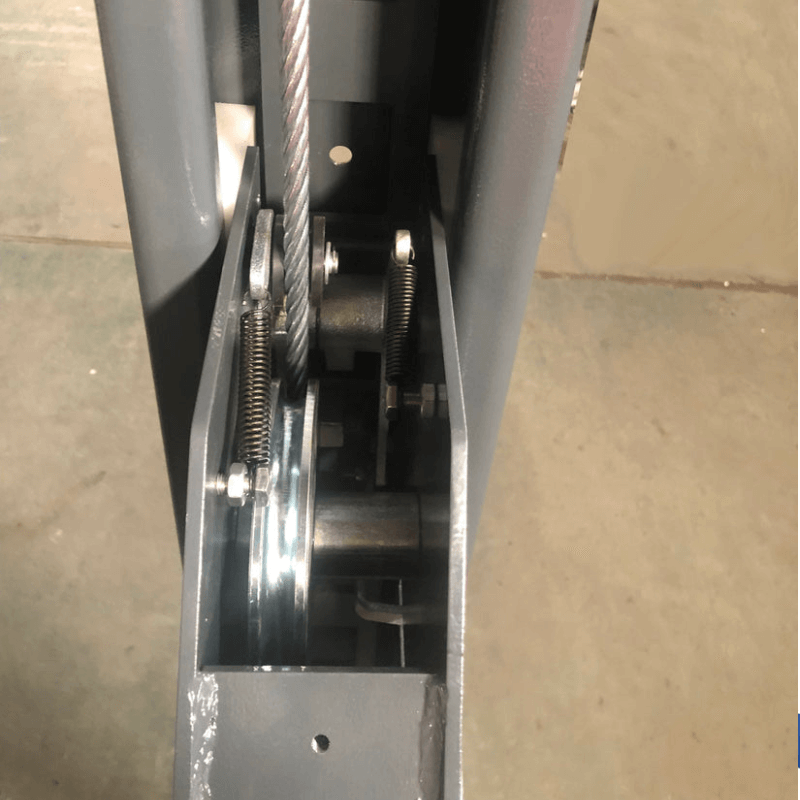

Synchronized Cable & Hydraulic System
A hydraulic cylinder provides the lifting force, while a four-cable synchronization system helps keep the crossbeams and runways level during raising and lowering.
The heavy-duty cables are concealed within the lift structure for a cleaner installation and additional protection.

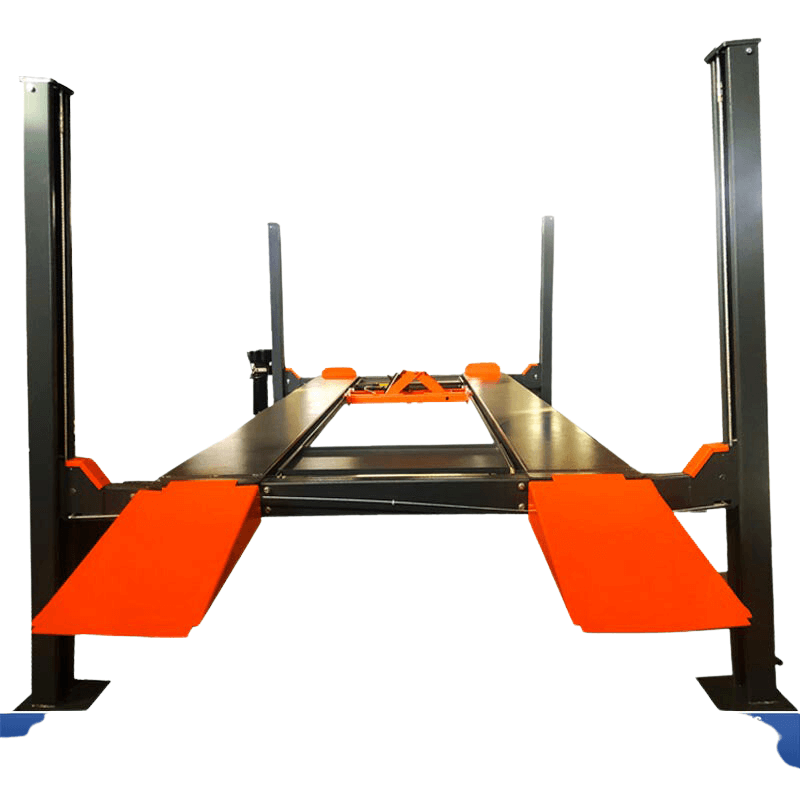

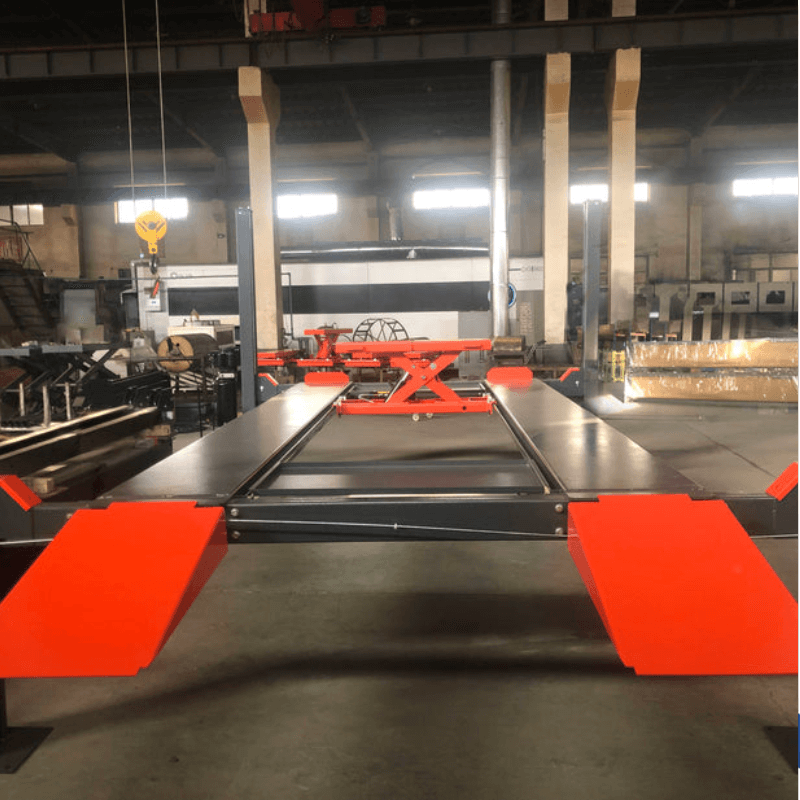

Non-Skid Drive-On Platforms
Heavy-duty diamond-plate runways provide a non-skid driving surface to help maintain tire traction while positioning a vehicle on the lift.
Removable approach ramps make vehicle loading convenient, while wheel stops help position the vehicle on the platform.
Flexible Power Options
The KT-4H110 is available with either a:
110V / 60Hz / Single-Phase power unit
220V / 60Hz / Single-Phase power unit
The motor is rated at approximately 2.2 kW, with the exact electrical setup depending on the selected version.
Key Features
Heavy-duty 4-post vehicle lift
11,000 lb / 4,990 kg lifting capacity
Maximum lifting height of 84.25 inches
Extended drive-on platform
Suitable for cars, SUVs, and many light trucks
Hydraulic lifting system
Four-cable synchronized lifting design
Single-point manual safety lock release
Four mechanical locking devices
Primary and secondary safety locks
Slack-cable safety protection
Multiple locking positions
Non-skid diamond-plate runways
Adjustable safety lock ladders
Removable approach ramps
Flexible power-side column installation
110V or 220V configurations available
CE approved and certified
Product Specifications
Brand: KATOOL
Model: KT-4H110
Product Type: Heavy-Duty 4-Post Vehicle Lift
Rated Lifting Capacity: 11,000 lbs / 4,990 kg
Maximum Lifting Height: 84.25 in. / 2,140 mm
Minimum Lifting Height: 6.2 in. / 157 mm
Overall Height: 94.88 in. / 2,410 mm
Overall Width: 126 in. / 3,200 mm
Width Between Columns: 112.81 in. / 2,865 mm
Overall Length: 229.73 in. / 5,835 mm
Lifting Time: Approx. 83 Seconds
Lowering Time: Approx. 40 Seconds
Motor Power: Approx. 2.2 kW
Voltage Options: 110V or 220V
Phase: Single Phase
Lock Release: Single-Point Manual
Safety System: Primary & Secondary Mechanical Locks
Construction: Q235 / Q245 Steel
Net Weight: Approx. 2,116 lbs / 960 kg
Certification: CE Approved & Certified
Package Includes
1 × KATOOL KT-4H110 4-Post Vehicle Lift

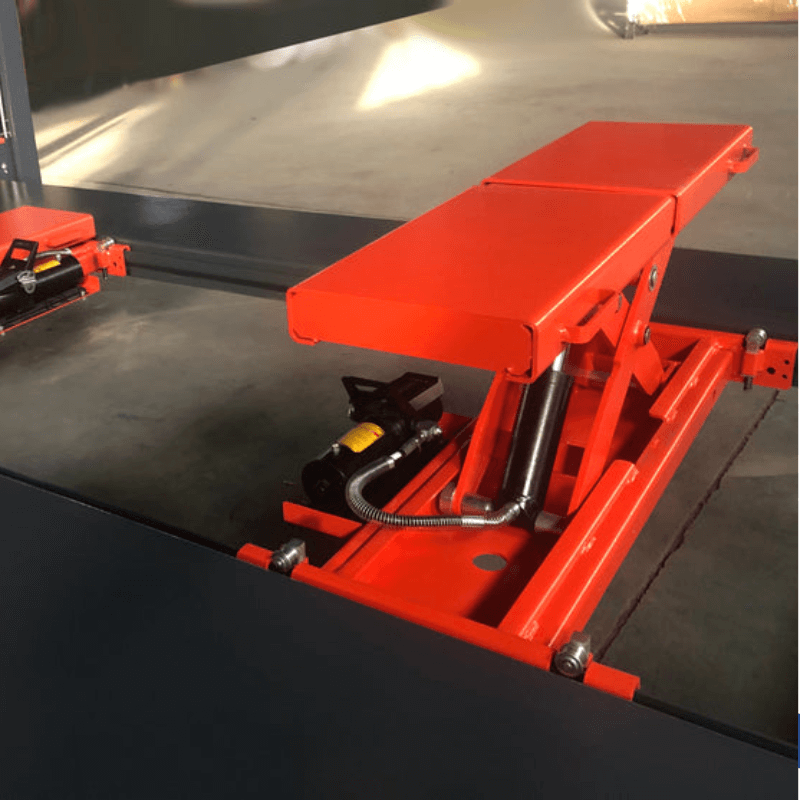

Jack Tray
Drip Trays
Installation Requirement
The lift must be installed on a suitable concrete surface. The manufacturer specifies concrete at least 3.93 inches / 100 mm thick with a minimum 3,000 PSI strength. Proper installation and verification of the supporting floor are required before operating the lift.
