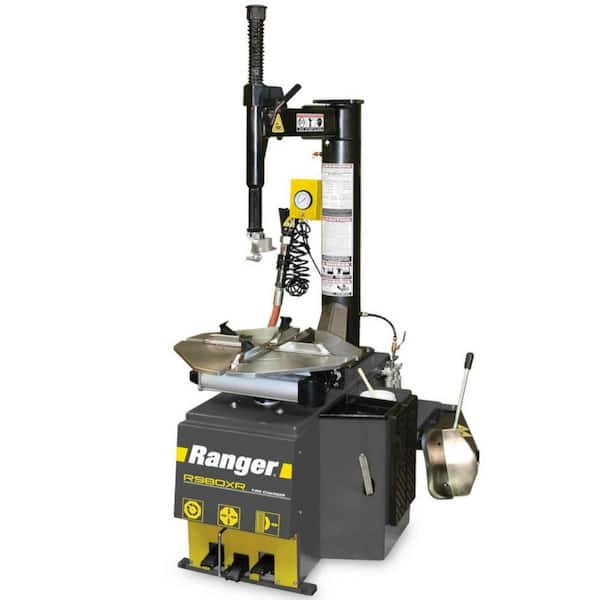

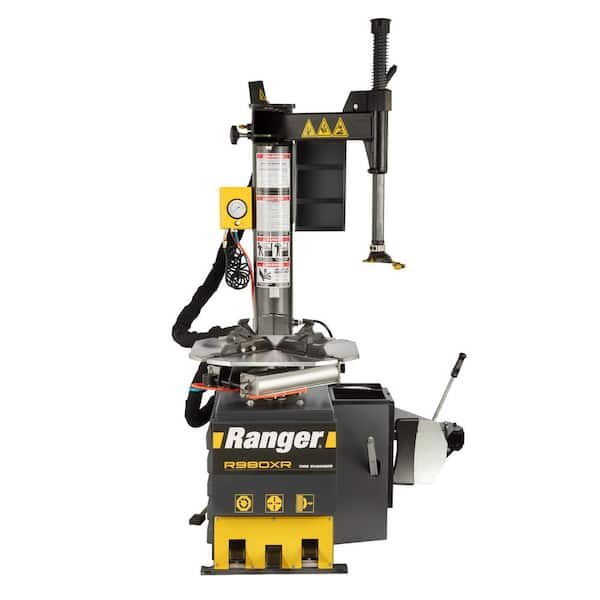

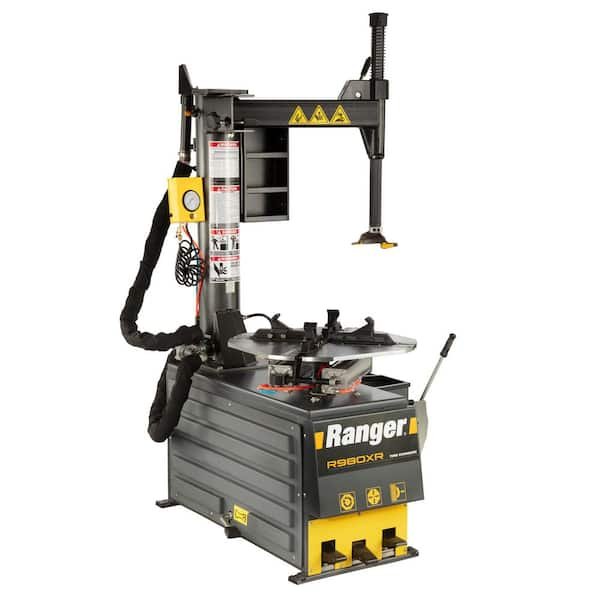

The Ranger R980XR Swing-Arm Tire Changer is a professional wheel-service machine designed for automotive repair shops, tire centers, dealerships, and other high-volume service environments.
Featuring a space-saving swing-arm design, wide wheel-clamping range, pneumatic bead breaker, and integrated TurboBlast bead-seating system, the R980XR provides the capacity and versatility required for servicing passenger cars, pickups, SUVs, and light trucks.
The 220V version operates on 208–240V, 50/60Hz, single-phase power and combines electric turntable operation with pneumatic clamping and bead-service functions.
30-Inch Wheel Clamping Capacity
The R980XR provides a broad clamping range for handling many common OEM and aftermarket wheel configurations.

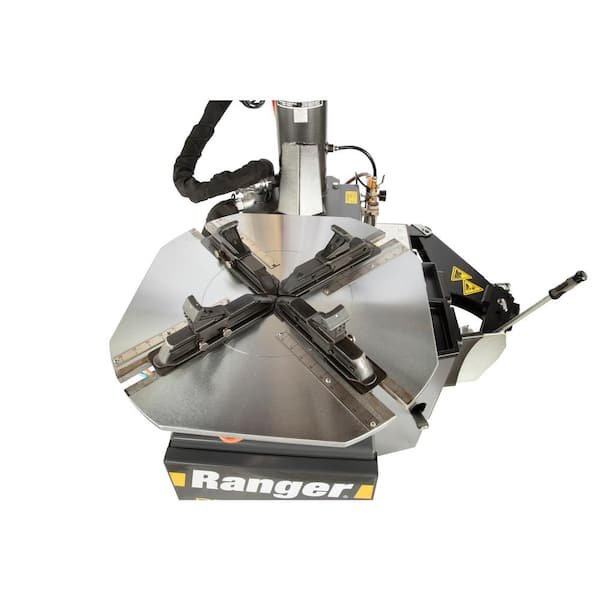

Its RimGuard wheel clamps accommodate wheels from:
10–30 inches with internal clamping
9–28 inches with external clamping
Dual pneumatic cylinders provide strong, consistent clamping pressure to help keep the wheel securely positioned during mounting and demounting.
Handles Tires Up to 50 Inches
Despite its relatively compact swing-arm design, the R980XR can accommodate tires measuring up to 50 inches in overall diameter.
The machine supports wheels up to approximately 15 inches wide, providing useful capacity for passenger vehicles, SUVs, pickups, and compatible light-truck applications.

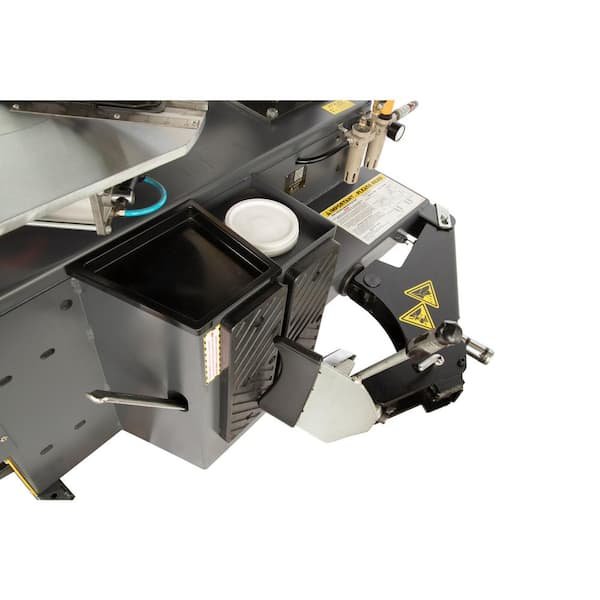

Adjustable Pneumatic Bead Breaker
The R980XR uses an adjustable pneumatic bead-breaking blade to separate tire beads from the rim before mounting or demounting.
Its pneumatic system is designed to operate with a shop-air supply in the 140–165 PSI range.
TurboBlast Bead-Seating System
An integrated TurboBlast bead-seating system directs a high-volume burst of air into the tire to help seat difficult beads during inflation.
This system is particularly useful when servicing tire and wheel combinations where conventional inflation does not immediately establish a seal between the tire bead and rim.

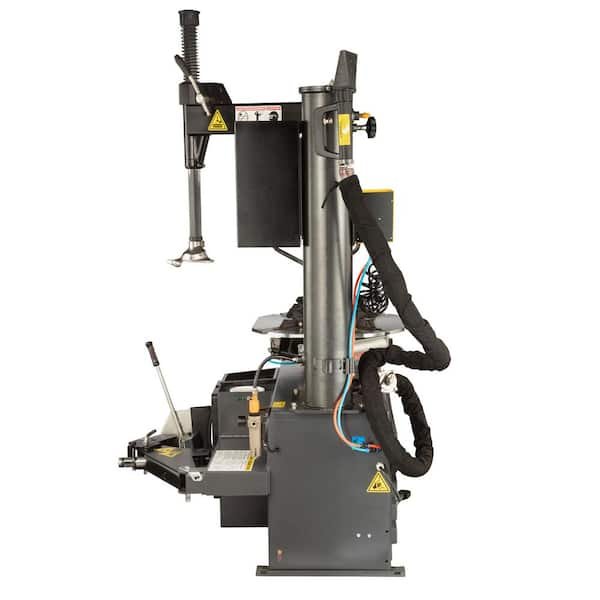

Space-Saving Swing-Arm Design
The rigid fixed tower and swing-arm configuration provides a smaller installation footprint than many tilt-back tire changers.
The swing arm moves away from the wheel to provide access while keeping the main tower stationary, making the R980XR a practical choice for shops where floor space is important.
Professional Wheel Protection
Ranger’s RimGuard clamping system and non-marring wheel-protection components are designed to reduce the risk of cosmetic wheel damage during tire service.
Plastic-polymer and alloy-steel mount/demount head components provide technicians with options for servicing different wheel configurations.
Key Features
Professional swing-arm tire changer
30-inch internal wheel-clamping capacity
Internal clamping range: 10–30 in.
External clamping range: 9–28 in.
Maximum tire diameter: 50 in.
Maximum wheel width: approximately 15 in.
RimGuard wheel-clamping system
Dual pneumatic clamping cylinders
Adjustable pneumatic bead-breaking blade
Integrated TurboBlast bead-seating system
Rigid fixed tower with swing arm
Electric / pneumatic drive system
Space-saving shop design
Suitable for passenger cars, pickups, SUVs, and light trucks
208–240V, 50/60Hz, single-phase power
Requires external compressed-air supply
Product Specifications
Brand: Ranger Products
Model: R980XR
SKU: 5140146 – 220V Version
Product Type: Swing-Arm Tire Changer
Internal Wheel Clamping Range: 10–30 in.
External Wheel Clamping Range: 9–28 in.
Maximum Tire Diameter: 50 in.
Maximum Wheel Width: 15 in.
Wheel Clamping Method: RimGuard Clamps
Number of Clamps: 4
Table Clamping System: Dual Pneumatic Cylinders
Bead-Breaking System: Adjustable Pneumatic Blade
Bead-Seating System: TurboBlast
Tower Design: Rigid Fixed / Swing Arm
Power Assist Tower: Not Included
Drive System: Electric / Air
Voltage: 208–240V
Frequency: 50/60Hz
Phase: Single Phase
Air Requirement: 140–165 PSI
Shipping Dimensions: Approx. 50 × 45 × 68 in.
Shipping Weight: Approx. 742 lbs.
Shipping Method: LTL Freight
Standard Equipment
Inflation Gauge with Integrated Air Dump Valve
Plastic-Polymer Mount/Demount Head
Alloy-Steel Mount/Demount Head

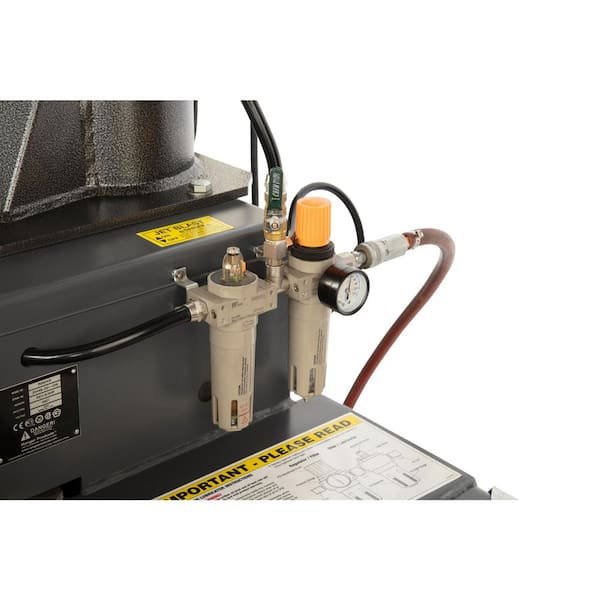

Air Regulator
Oiler / Lubricator
Inflation Pressure Regulator / Limiter
Bead Lifting / Breaker Bar

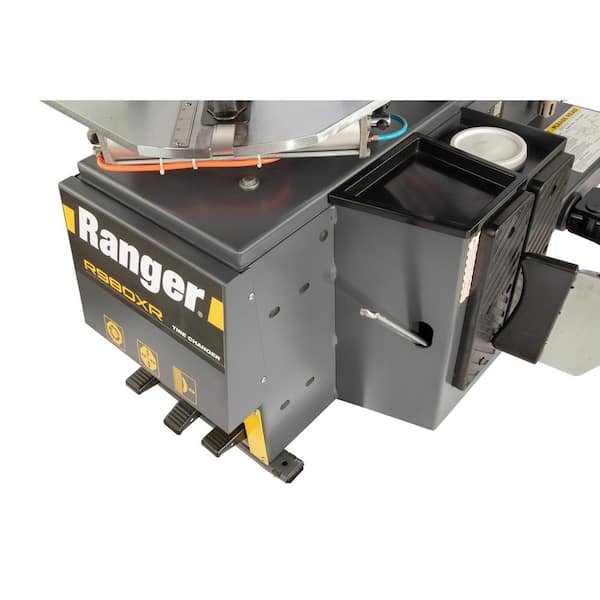

Lubricant Bucket and Brush
Wheel Protection Components
Optional Assist Tower
The standard R980XR does not include a power-assist tower. For shops servicing more difficult low-profile or stiff-sidewall tires, the compatible R30XLT Assist Tower can be added separately.
