Description

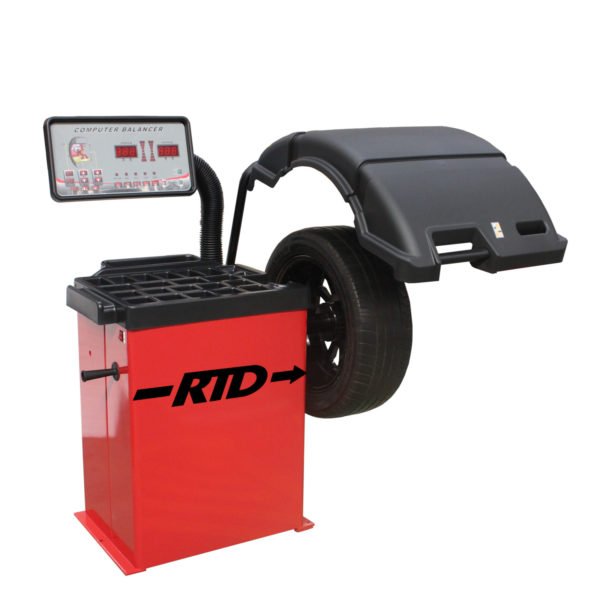

Race Tools Direct 953WB Self Calibrating Digital Wheel Balancer

The Race Tools Direct 953WB Self Calibrating Digital Wheel Balancers are highly accurate and durable wheel balancing systems that incorporates unbeatable standard features including, Multi-Mode Vehicle Balancing for Cars and Motorcycles, Static / Dynamic and 3 Aluminum wheel balance configurations, Storage Pegs and four sizes of centering cones!

The 953WB also incorporates an LED touch panel Keypad and Speed Nut to provide fast and efficient wheel balancing, along with having the ability for Multi-User operation. The 953WB Wheel Balancer simply provides the best value at the best price!

Race Tools Direct 953WB Self Calibrating Digital Wheel Balancer Features and Benefits:

• User Friendly Operation – LED, touch-panel Keypad with easy to read icons assisting operators utilizing all balancing functions.
• Large Rim Diameter Balancing – able to balance up to 24” Rim diameter & 39” overall tire diameter.
• Multi-Mode Vehicle Balancing – standard with Car & Motorcycle balancing modes.
• Ease-Of-Use – with manual measurement input for distance and diameter with Static / Dynamic & 3 Aluminum wheel modes.
  • 1) Clip on
  • 2) Inside stick on
  • 3) Clip on inside / stick on
• Self-Calibrating & Self Diagnosis – for improved efficiency and serviceability.
• Integrated Measurement Indicator – allows for ease of acquiring measurement data with a retractable, stylish measuring tool, built into the machine.
• Multi-User Operation – allows two operators to work simultaneously with different settings.
• Integrated Centering Spring – to assist with quick and proper wheel mounting on balancing shaft.
• Electronic Braking System – conveniently slows wheel down after balancing cycle.
• Heavy Duty Balancing Shaft – 36mm diameter balancing shaft accommodates wide range of wheels of different sizes and shapes.
• Speed-Nut Mounting – the Speed-Nut allows for quick and efficient wheel mounting, easily securing the wheel to the spindle with convenient lead-in screw.
• Multi Pocket Wheel Weight Shelf – 23 articulated pockets, over 1.5” deep, allowing plenty of storage weights, tooling & cones.
• Large Wheel Hood – the large 38” hood / shroud prevents debris from flying off the tire while in use.
• Storage Pegs – for convenient storing of balancer cones and caliper on side of housing

Included Accessories:

• 4 Cone Sets –
  • Small – 1-3/4″ – 2-1/2″
  • Medium – 2-1/8″ – 3″
  • Large – 2-7/8″ – 4-1/4″
  • Extra Large sizes 3-1/2″ – 6-1/4″
  • For wheels with large center hubs such as those on heavy duty trucks you will also need the Large Truck Adapter Kit which is available separately.
• 100g Weight
• Weight Hammer / Application Tool
• Wheel Caliper
• Clamp Bowl / Bowl Edge
• Speed-Nut Assembly
• Large Measurement Indicator

Race Tools Direct 953WB Self Calibrating Digital Wheel Balancer Specifications:

Warranty:

1 year limited warranty; parts only material and workmanship 90 days on wear items.
