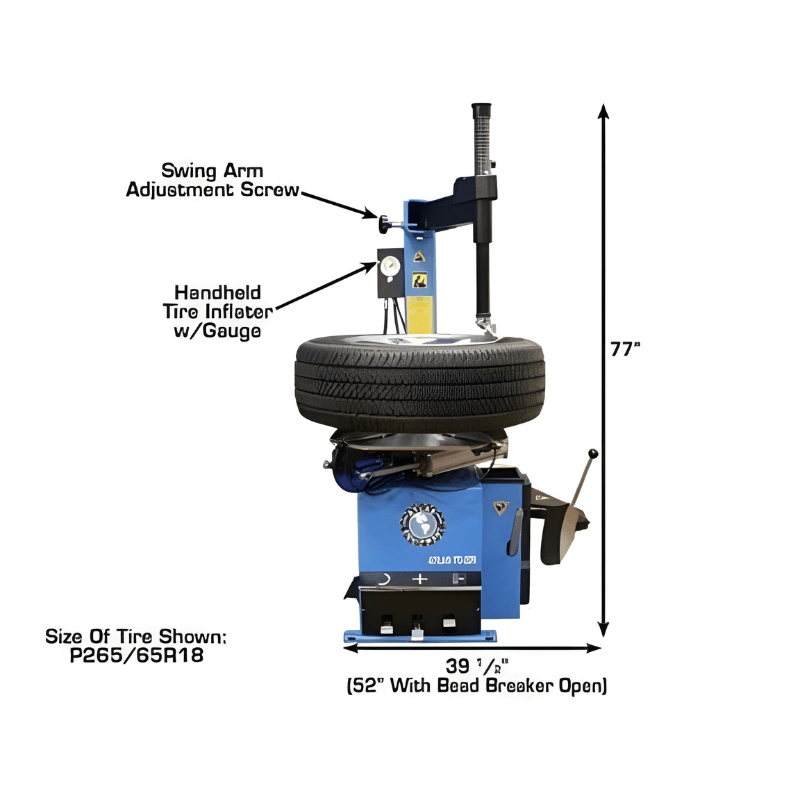

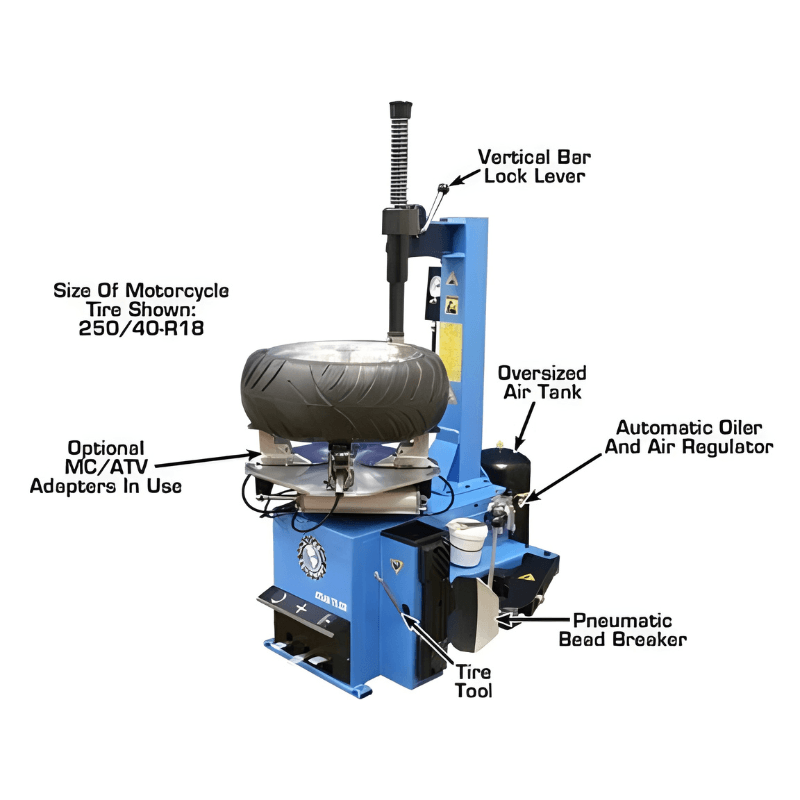

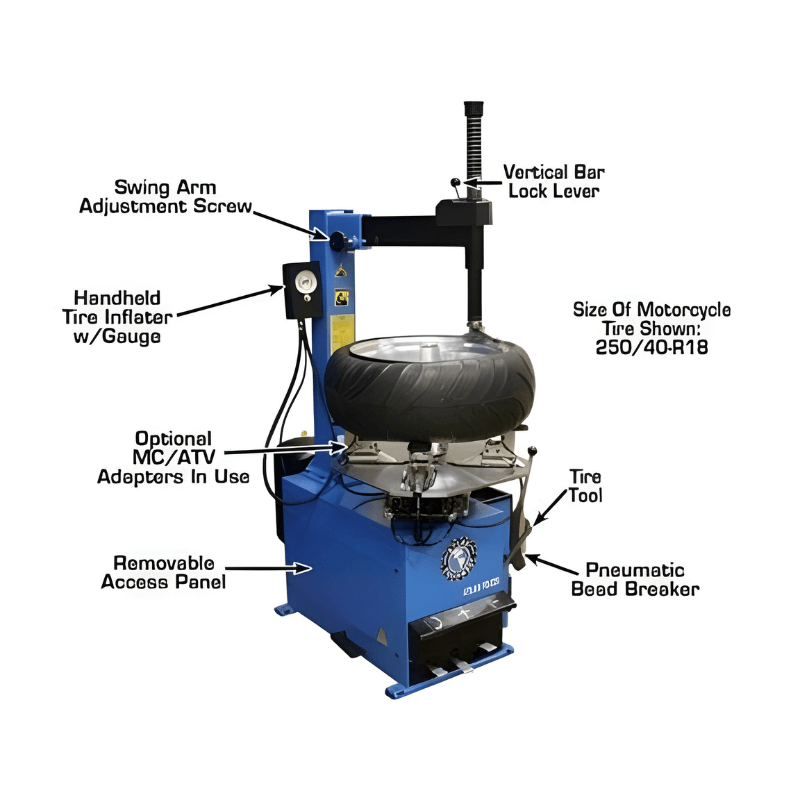

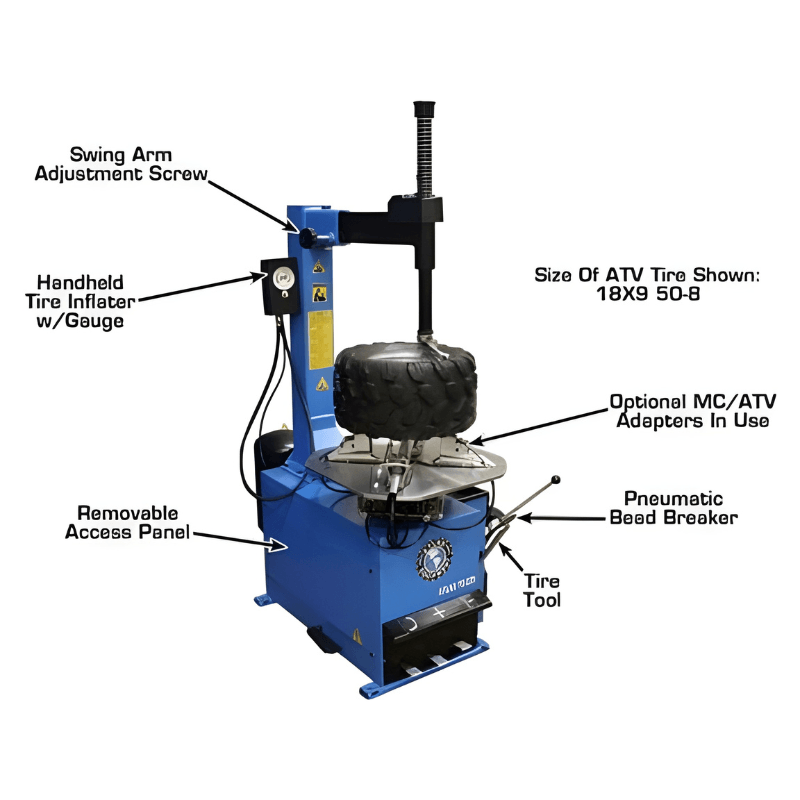

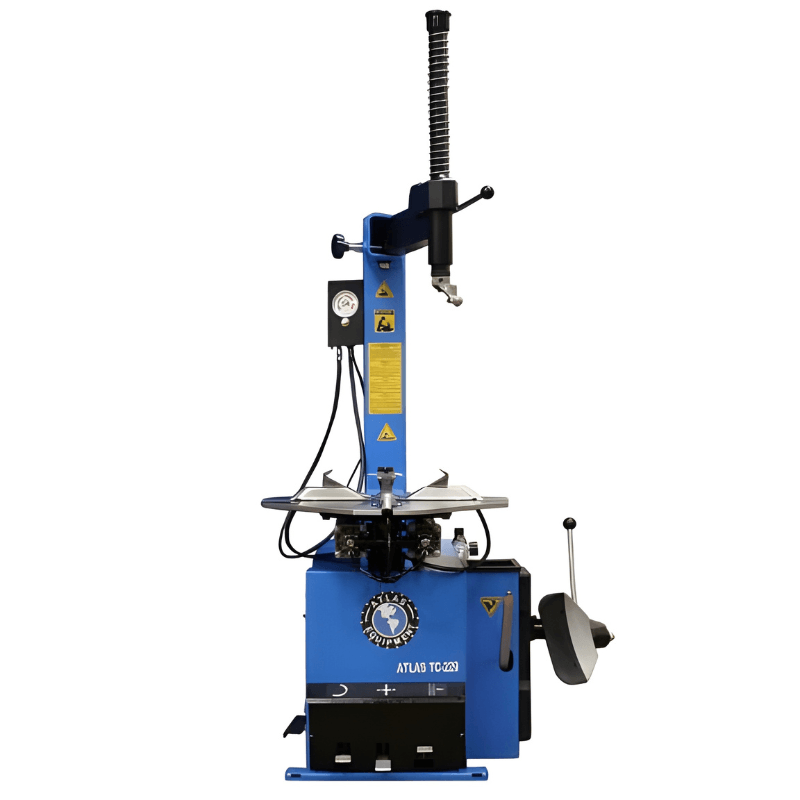

Atlas TC229 Rim-Clamp Tire Changer with Beadblaster – 110V

The Atlas TC229 Rim-Clamp Tire Changer is a professional swing-arm tire changing machine designed for passenger-car and light-truck tire service. With a powerful pneumatic bead breaker, integrated Beadblaster inflation system, and adjustable rim-clamping jaws, the TC229 provides reliable performance for tire shops, automotive repair facilities, dealerships, farms, and home garages.

Powered by a 1 HP electric motor, the turntable produces approximately 885 ft-lbs of rotating torque, providing the strength needed for routine tire mounting and demounting operations.

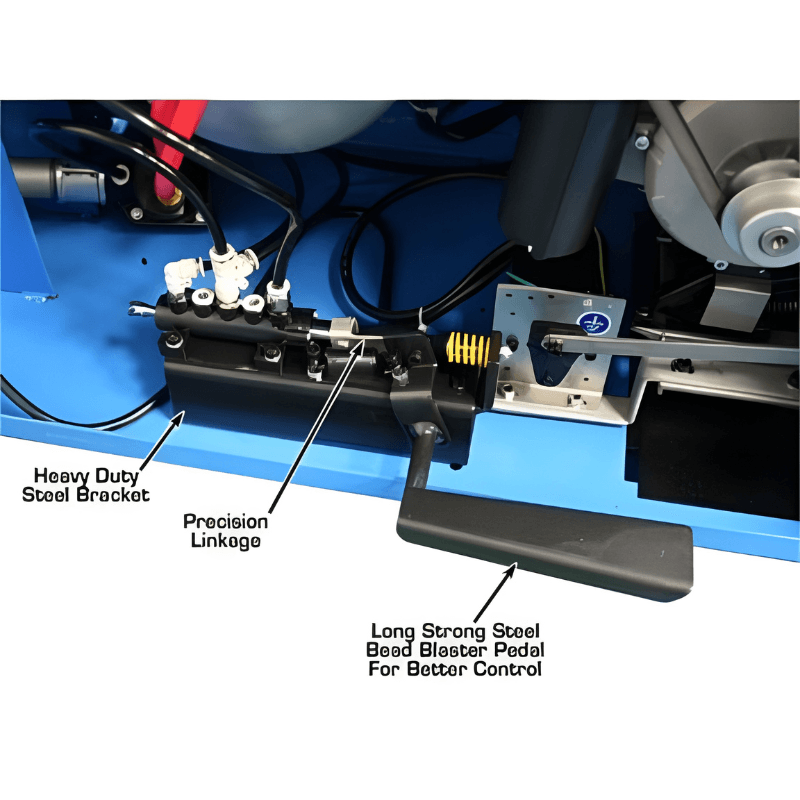

Integrated Beadblaster System

The TC229 features an integrated Beadblaster system that directs a powerful burst of compressed air between the tire and rim.

This helps expand the tire during inflation and assists with seating difficult beads onto the wheel, making it particularly useful when conventional inflation alone is not sufficient.

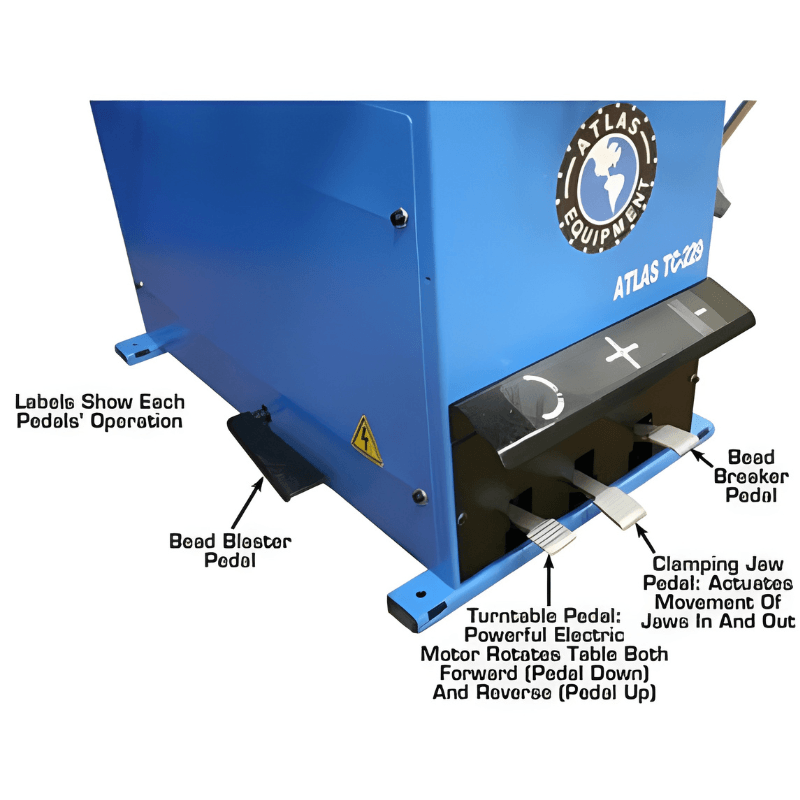

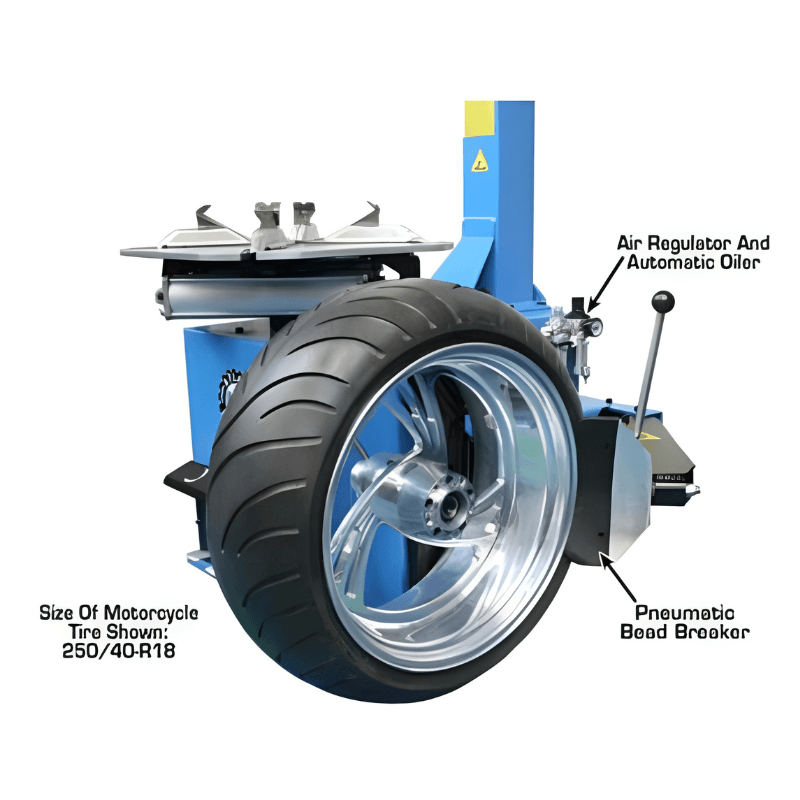

5,500 lb Pneumatic Bead Breaker

A powerful pneumatic bead breaker delivers up to 5,500 lbs of force to help separate stubborn tire beads from wheel rims.

The machine requires an external compressed-air supply and is designed to operate with approximately 90–110 PSI of air pressure.

Adjustable Rim-Clamping System

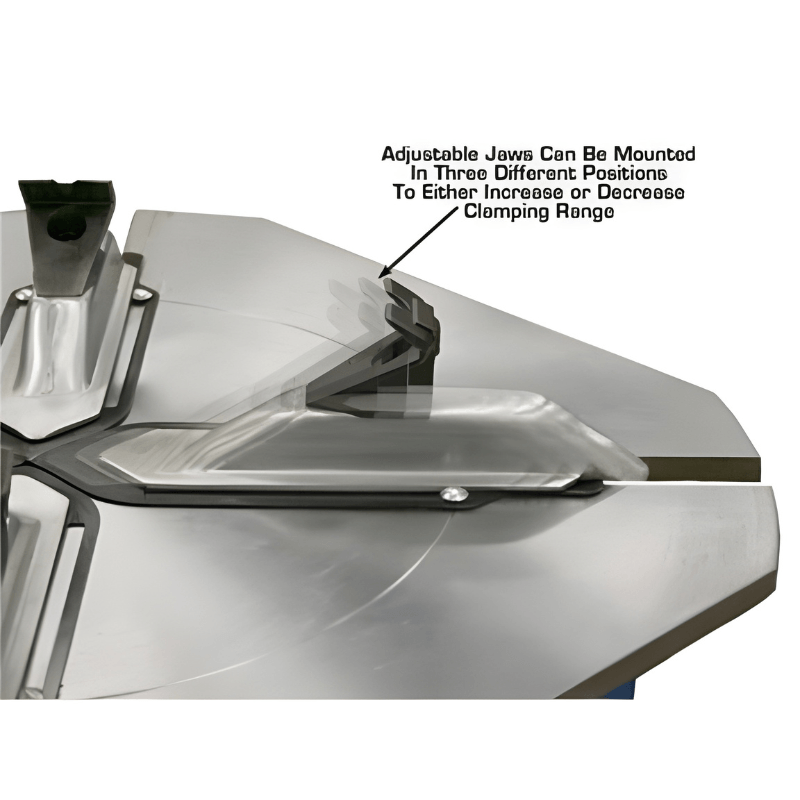

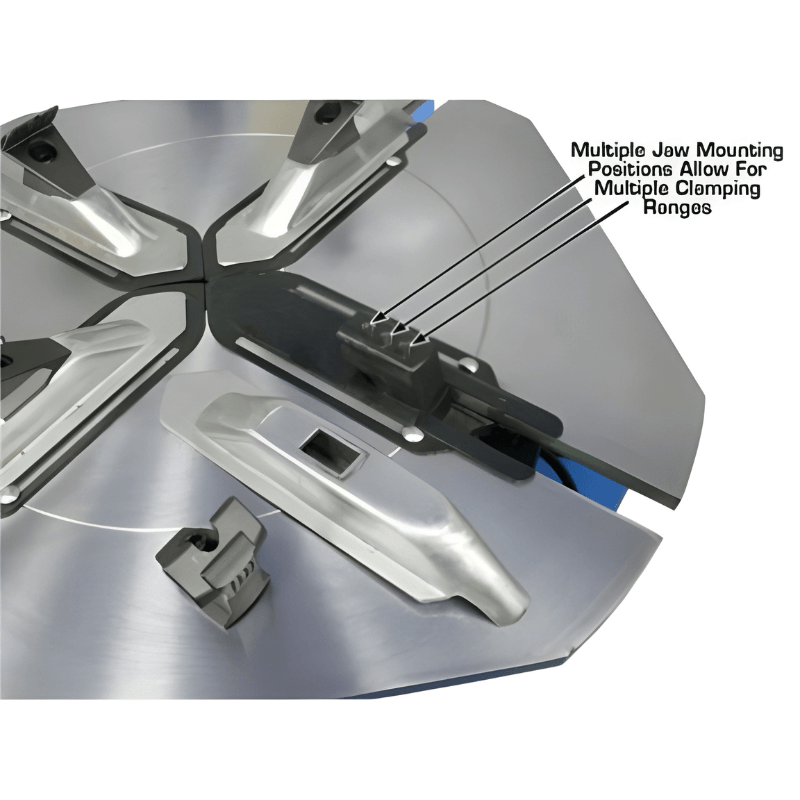

The turntable features adjustable clamping jaws with three different mounting positions, providing flexibility when working with different wheel sizes.

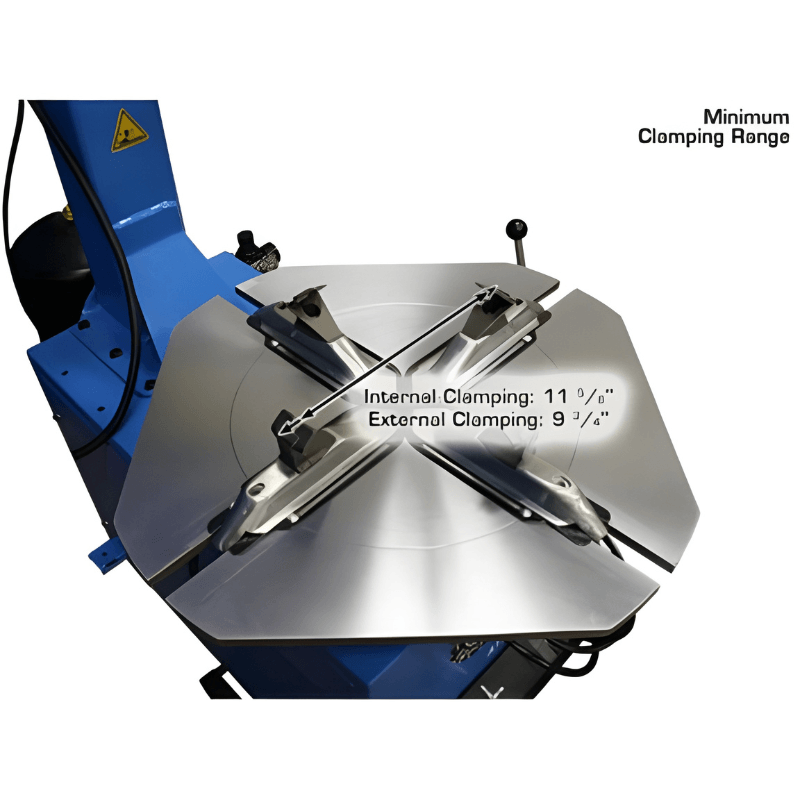

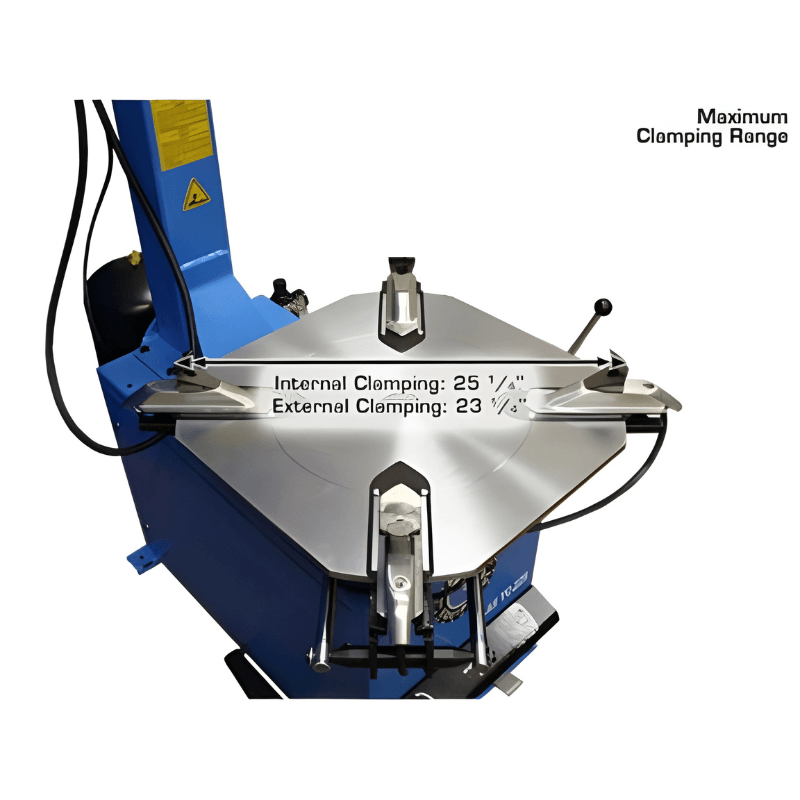

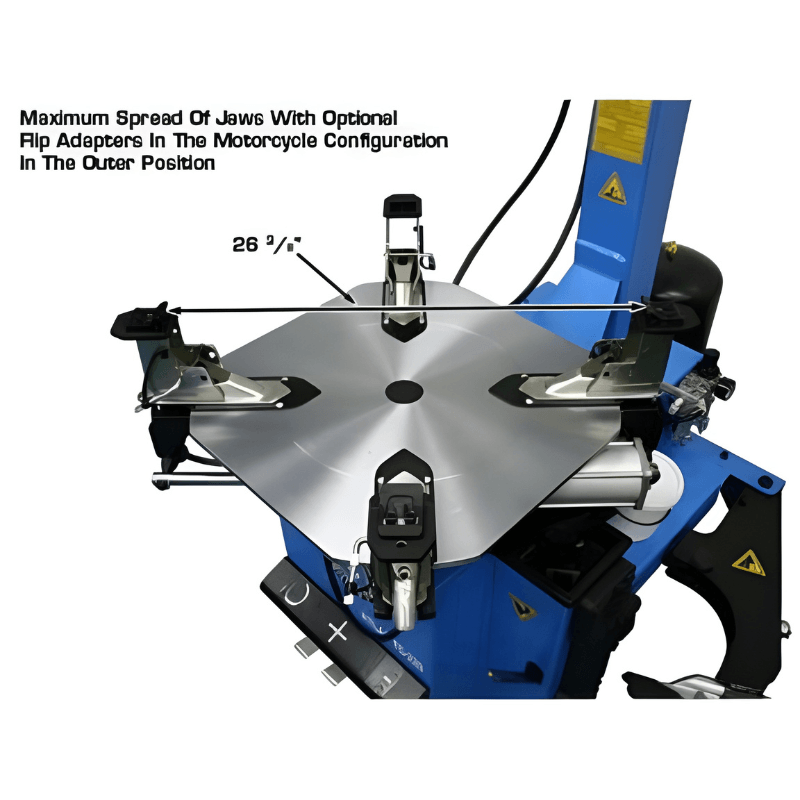

The TC229 supports an external rim clamping range of approximately 9-3/4 to 23-1/4 inches and an internal rim clamping range of approximately 11-5/8 to 25-1/4 inches.

Professional Tire-Service Capability

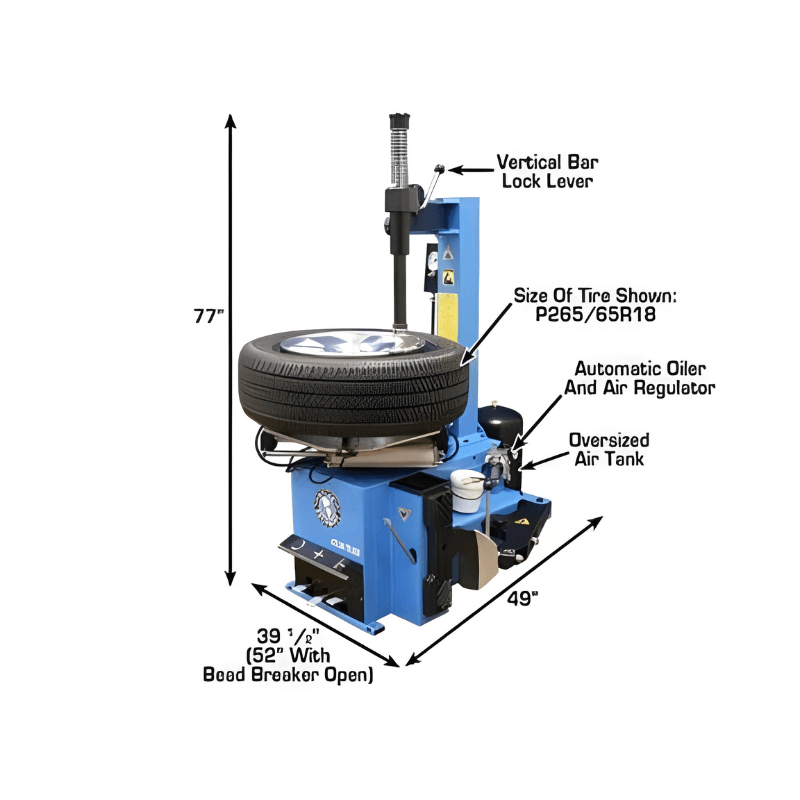

The TC229 can accommodate tires up to approximately 39 inches in overall diameter and wheels up to 13 inches wide at the bead breaker.

Its swing-arm configuration provides straightforward access to the wheel during tire mounting and demounting, making it a practical solution for everyday tire-service operations.

Key Features

• Professional rim-clamp tire changer

• Swing-arm design

• Integrated Beadblaster inflation system

• 5,500 lb pneumatic bead-breaker force

• Adjustable clamping jaws with 3 positions

• 1 HP electric motor

• Approximately 885 ft-lbs turntable torque

• External rim clamping up to approximately 23-1/4 in.

• Internal rim clamping up to approximately 25-1/4 in.

• Handles tires up to approximately 39 in. diameter

• Handles wheels up to approximately 13 in. wide

• Built-in inflation box with pressure gauge

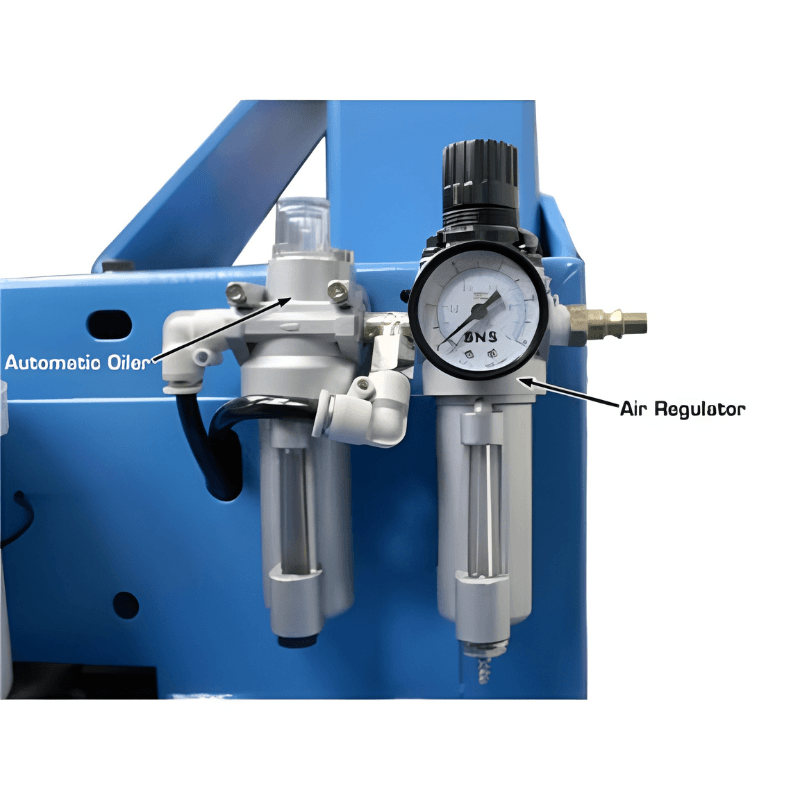

• Oiler, filter, and regulator included

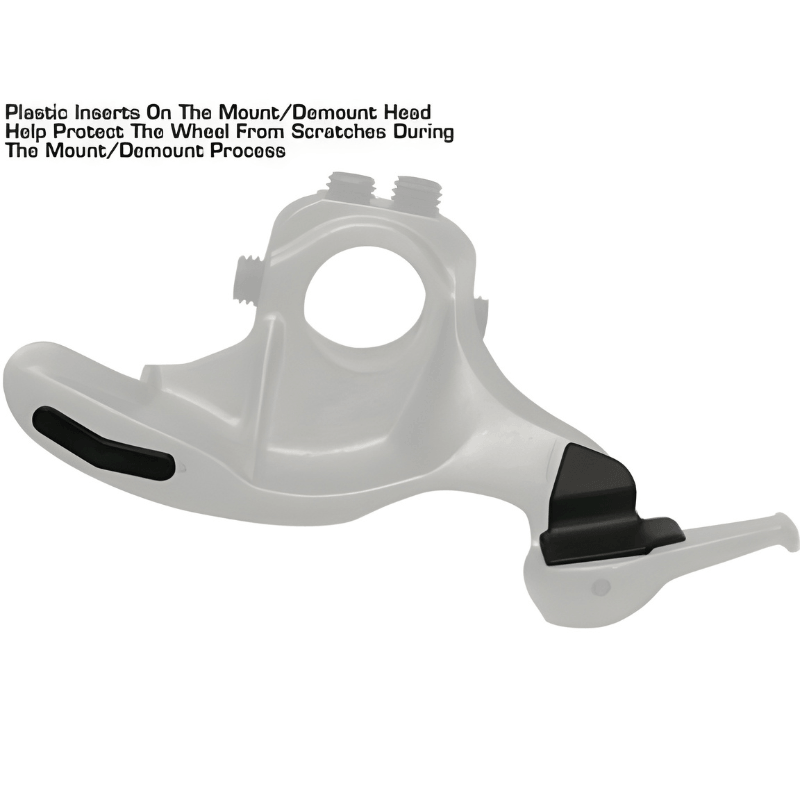

• Plastic rim protectors included

• Tire tool and lubrication accessories included

• 110V electrical operation

• Designed for passenger-car and light-truck tire service

Product Specifications

• Brand: Atlas Automotive Equipment

• Model: TC229

• Product Type: Rim-Clamp / Swing-Arm Tire Changer

• Beadblaster: Yes

• External Rim Clamping Range: 9-3/4 – 23-1/4 in.

• Internal Rim Clamping Range: 11-5/8 – 25-1/4 in.

• Maximum Tire Diameter: 39 in.

• Maximum Wheel Width: 13 in.

• Motor Power: 1 HP

• Turntable Torque: Approx. 885 ft-lbs

• Bead-Breaker Force: 5,500 lbs

• Air Requirement: 90–110 PSI

• Maximum Air Pressure: 140 PSI

• Electrical Requirement: 110V

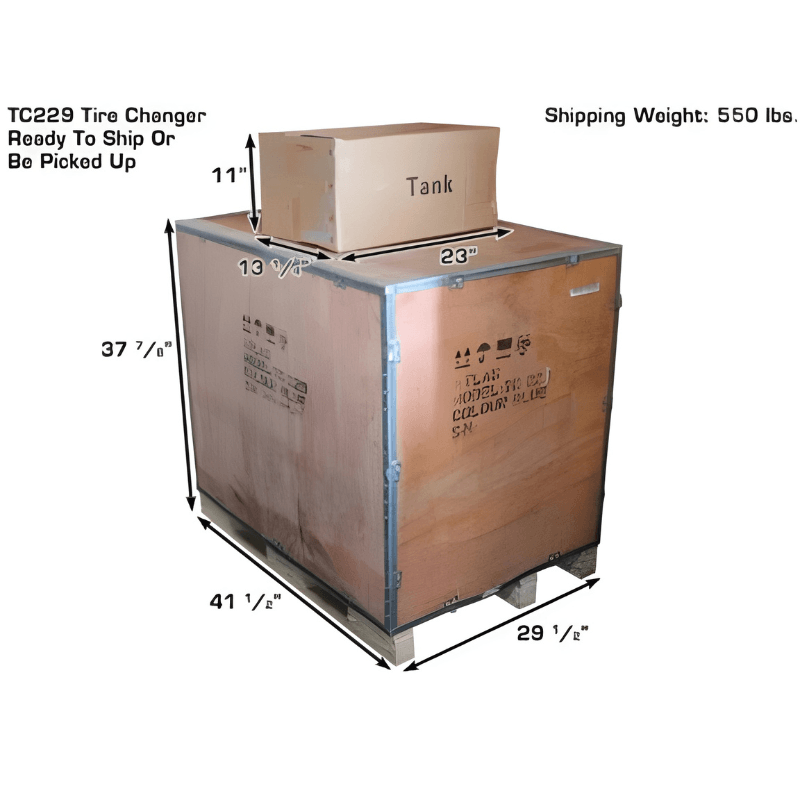

• Shipping Weight: Approx. 550 lbs

• Primary Applications: Passenger Cars & Light Trucks

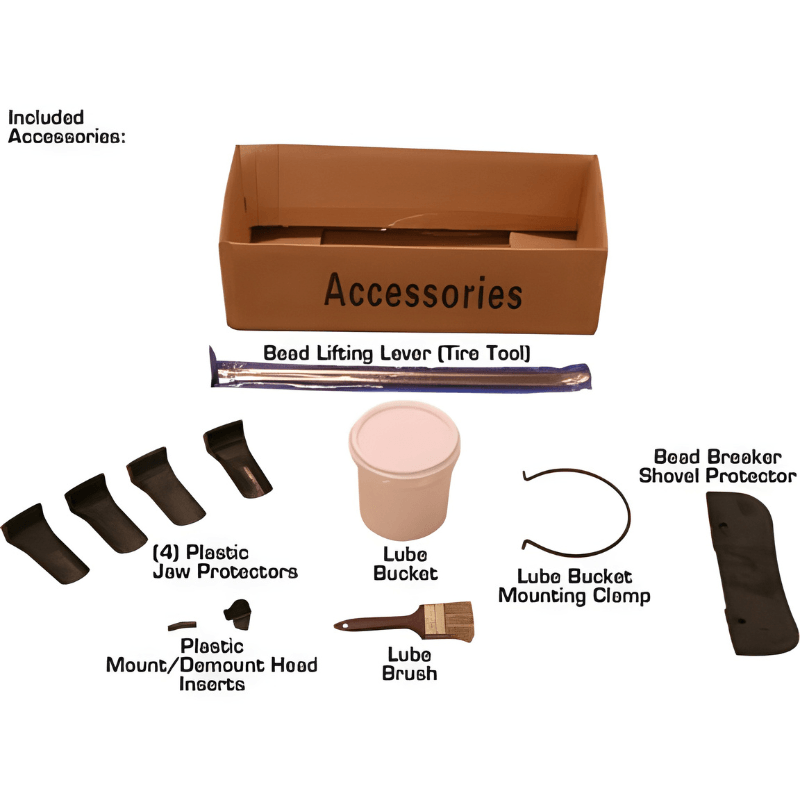

Included Accessories

• Oiler, Filter & Regulator

• Plastic Rim Protectors

• Tire Tool

• Lubricant Bucket

• Lubricant Brush

• Inflation Box with Pressure Gauge
