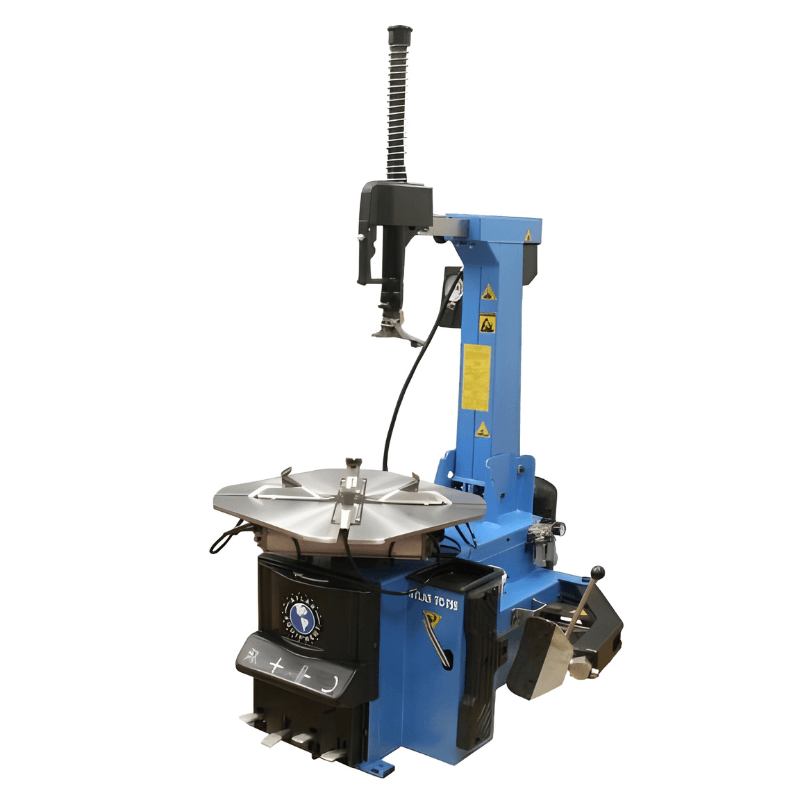

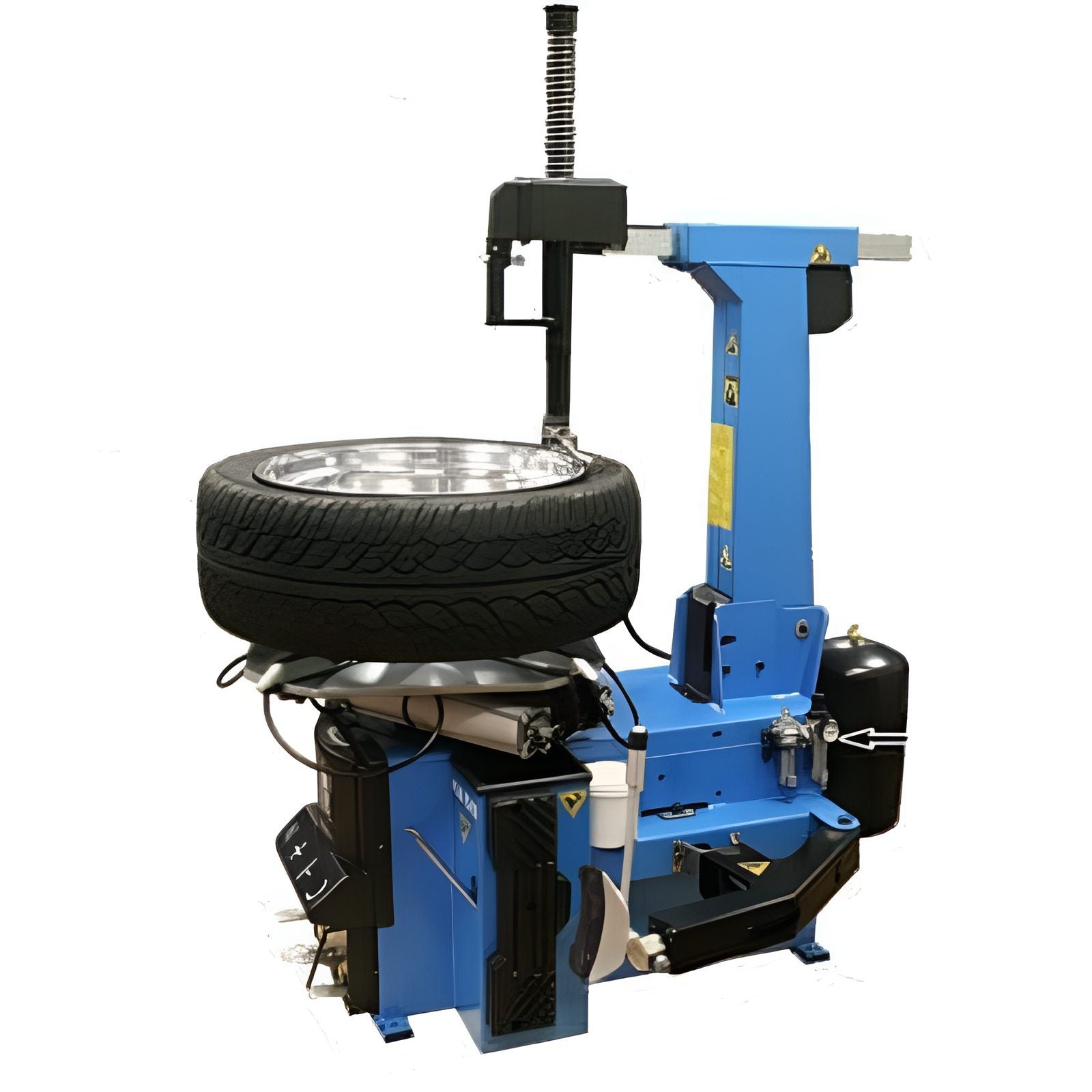

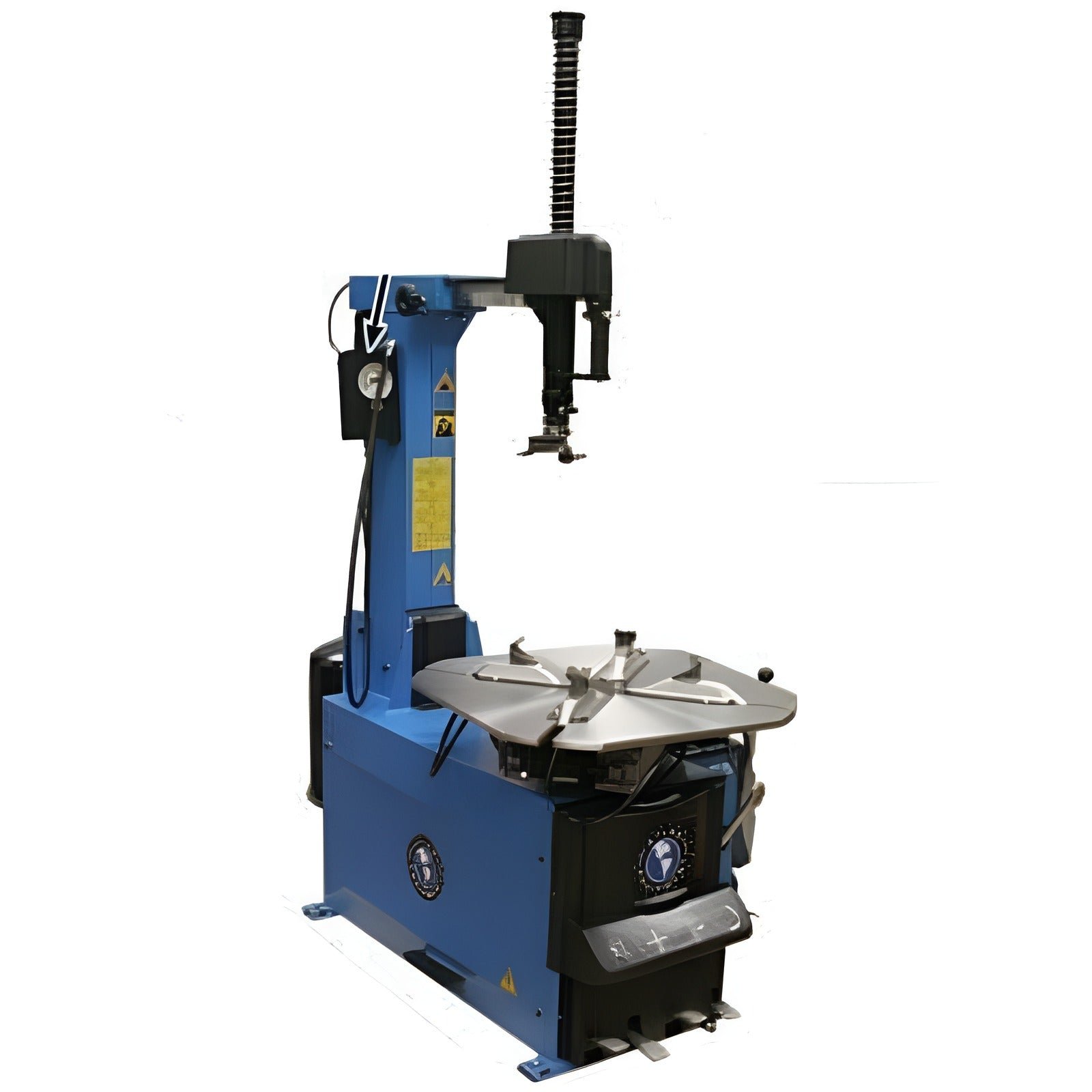

Atlas TC755 Tilt-Back Rim-Clamp Tire Changer with Beadblaster – 110V

The Atlas TC755 Tilt-Back Rim-Clamp Tire Changer is a professional-grade tire service machine designed for busy tire shops, automotive repair facilities, dealerships, and other commercial wheel-service applications.

Featuring a foot-operated tilt-back column, extra-large turntable, pneumatic locking mount/demount head, powerful bead breaker, and built-in Beadblaster, the TC755 provides an efficient solution for mounting and demounting a wide variety of passenger-car and light-truck tires.

Professional Tilt-Back Design

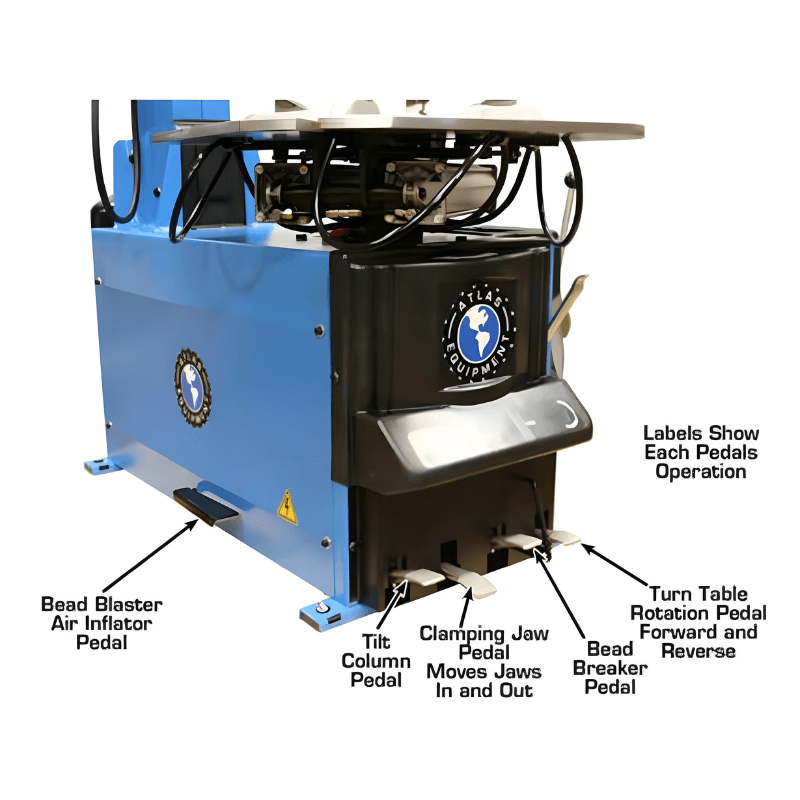

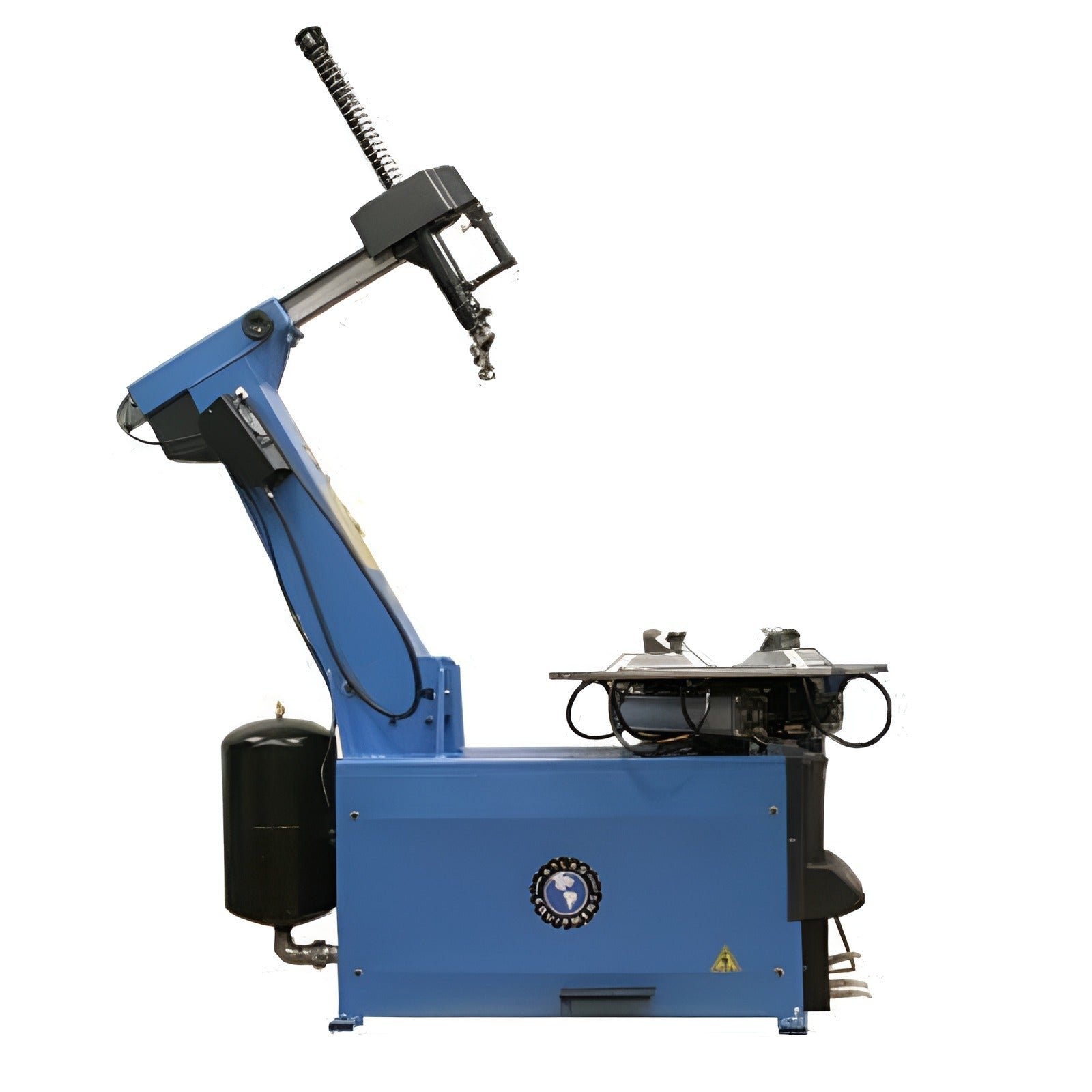

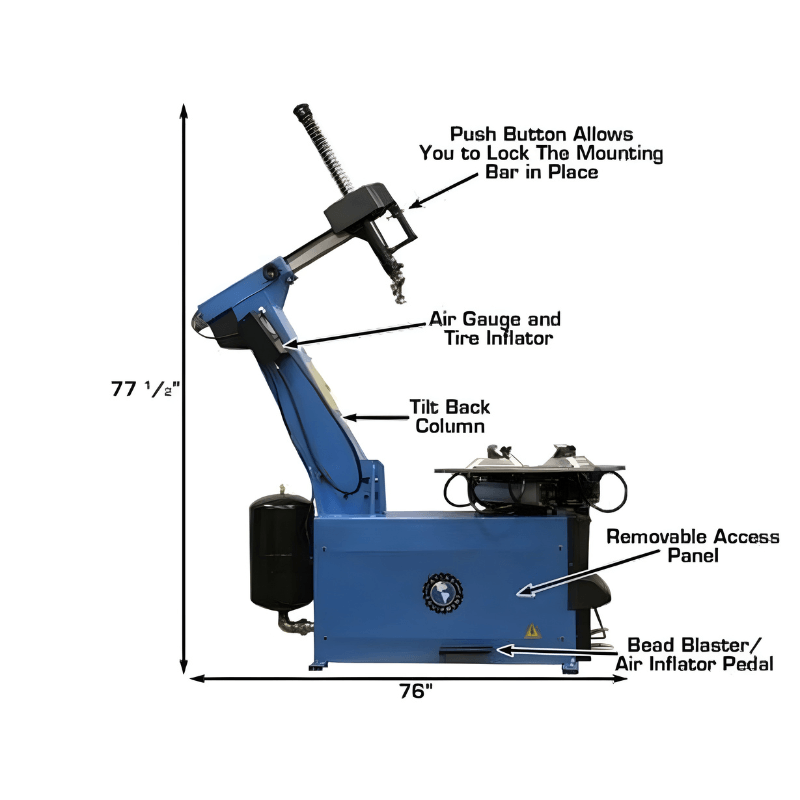

The TC755 features a foot-operated tilt-back column that moves the entire column away from the wheel.

This design provides additional clearance when installing or removing wheels from the turntable and eliminates the need to repeatedly reposition a conventional swing arm.

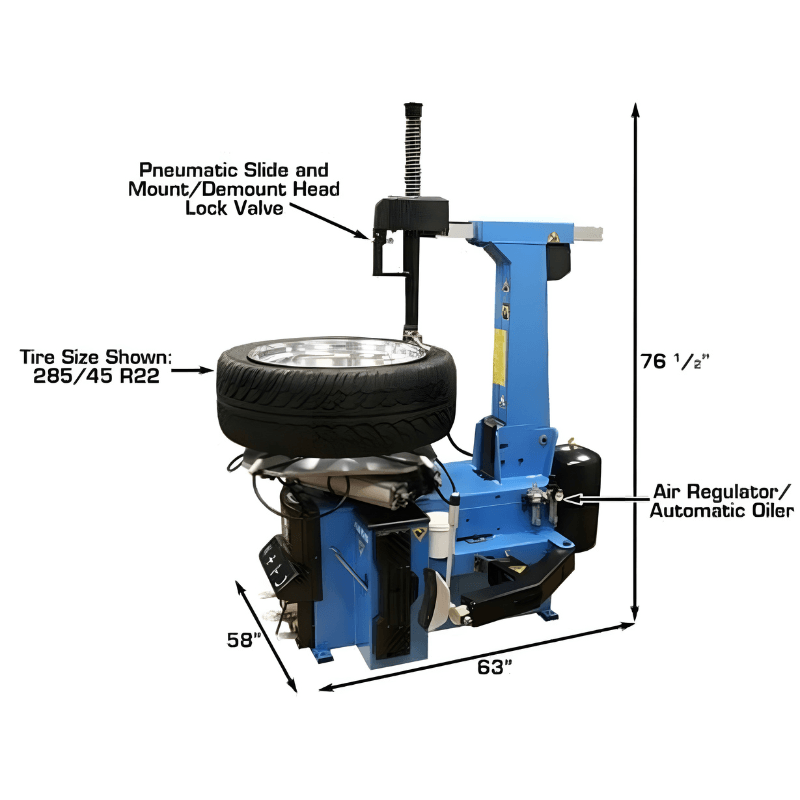

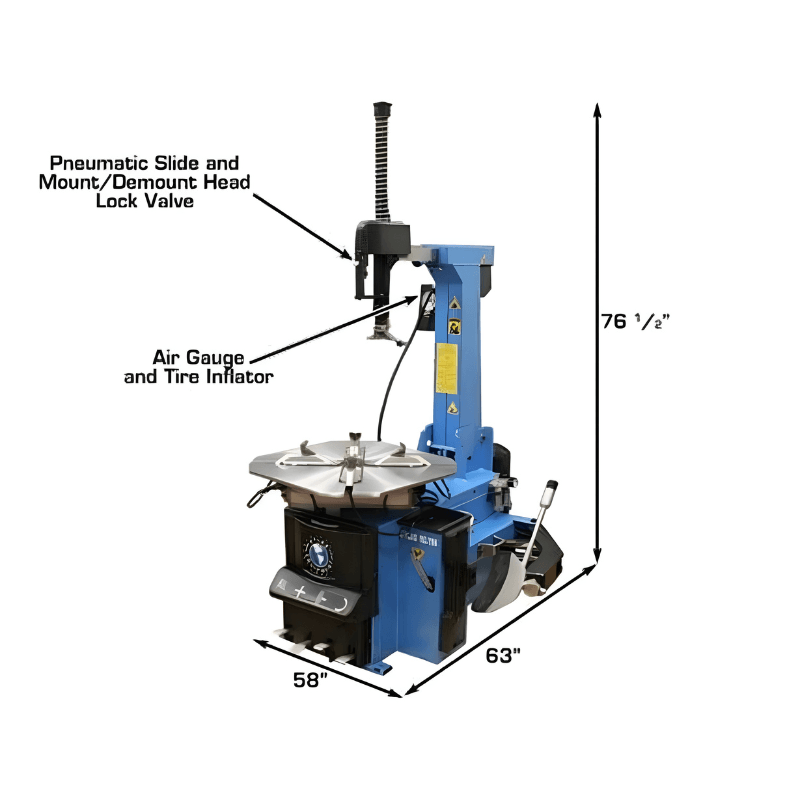

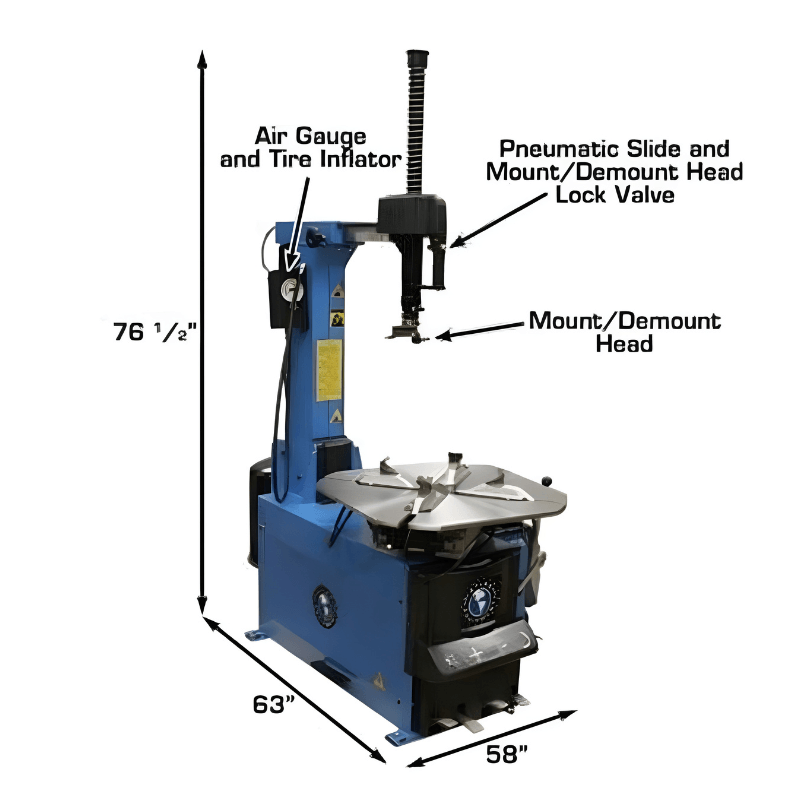

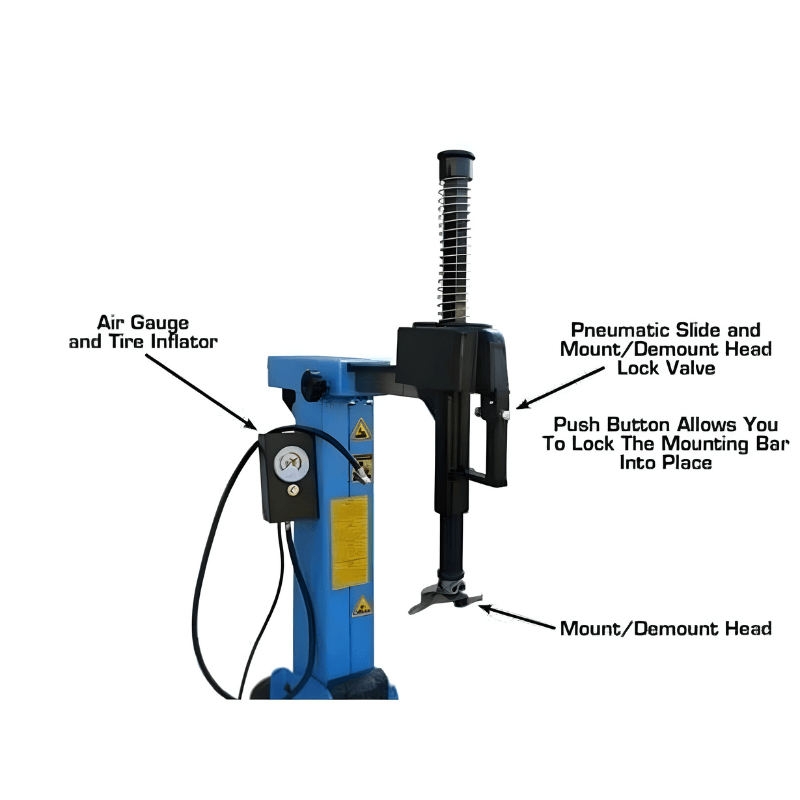

The machine also incorporates a pneumatic locking mount/demount head, helping keep the head securely positioned during tire-changing operations.

Extra-Large Rim-Clamp Turntable

An extra-large electric turntable provides additional clearance and supports a broad range of steel, aluminum, and alloy wheels.

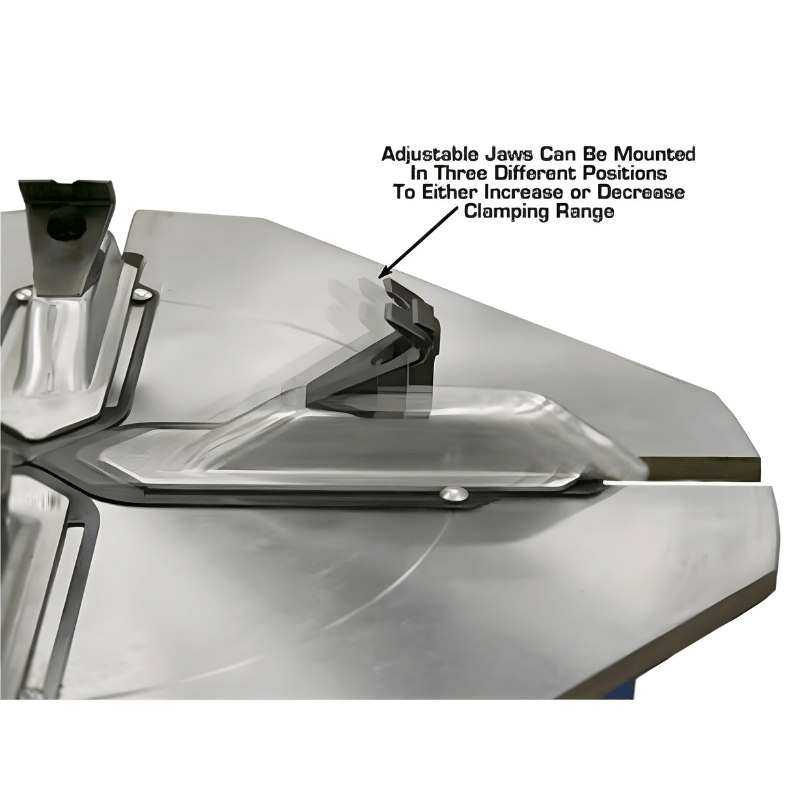

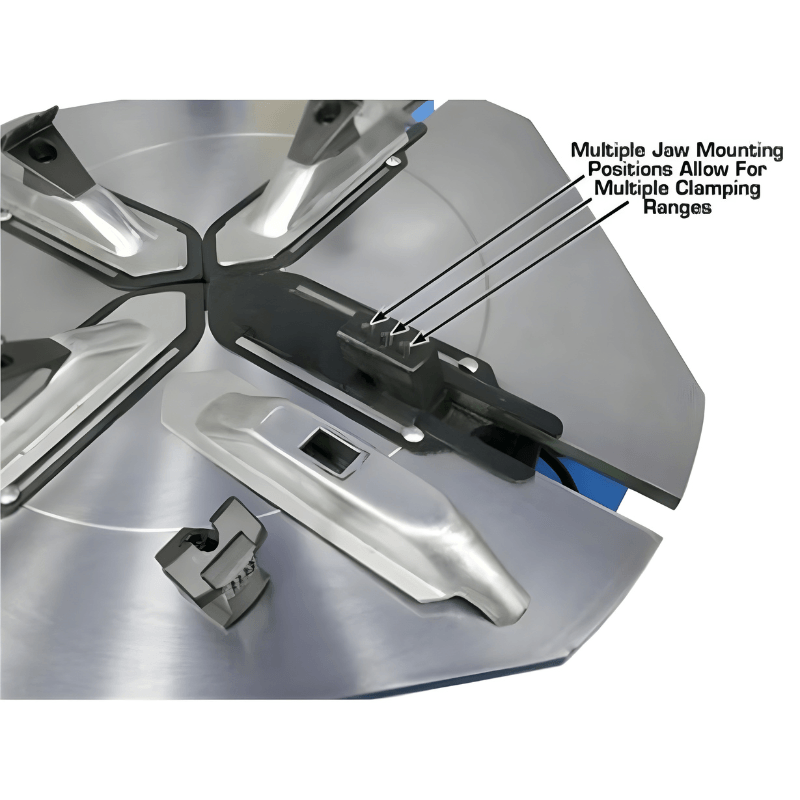

The air-operated clamping jaws feature three adjustable mounting positions, allowing the clamping range to be changed for different wheel sizes.

Built-In Beadblaster

The integrated Beadblaster system delivers a powerful burst of compressed air between the tire and rim to help seat difficult tire beads during inflation.

This feature is especially useful for stiff-sidewall and other hard-to-inflate tire applications.

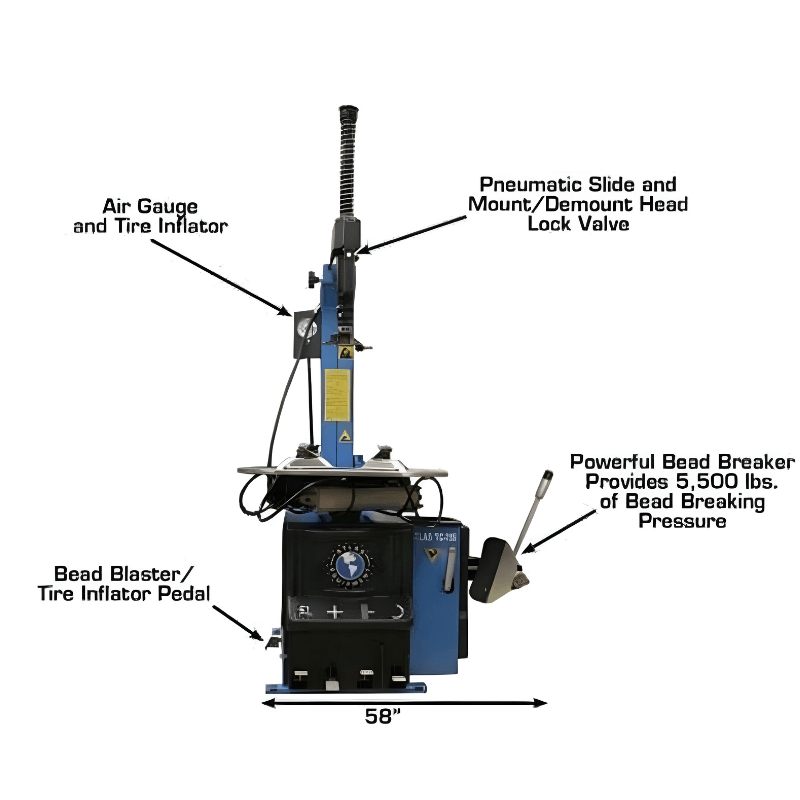

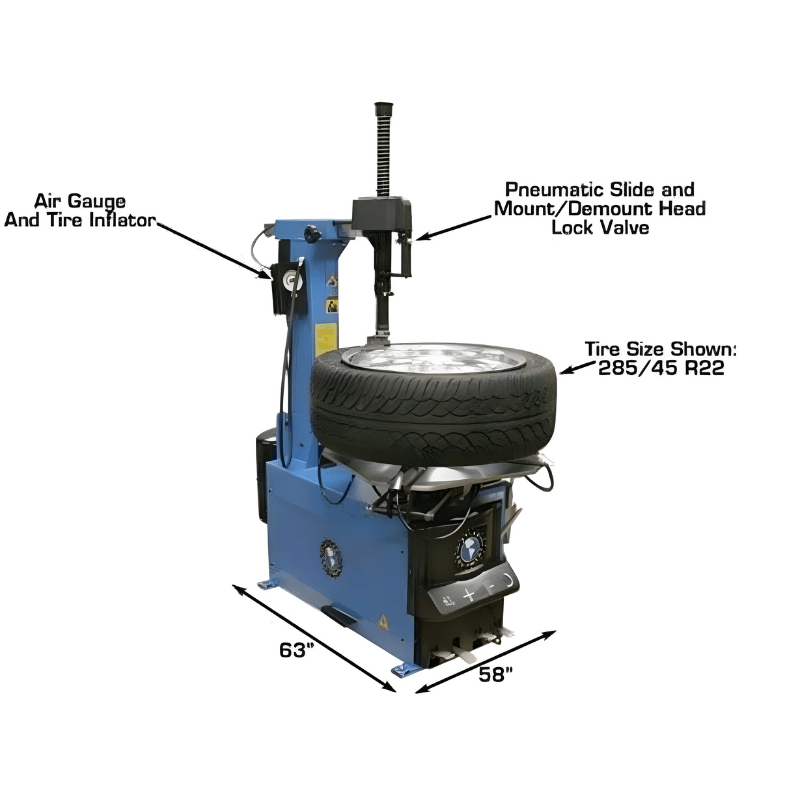

A column-mounted inflation box with pressure gauge is included for convenient tire inflation.

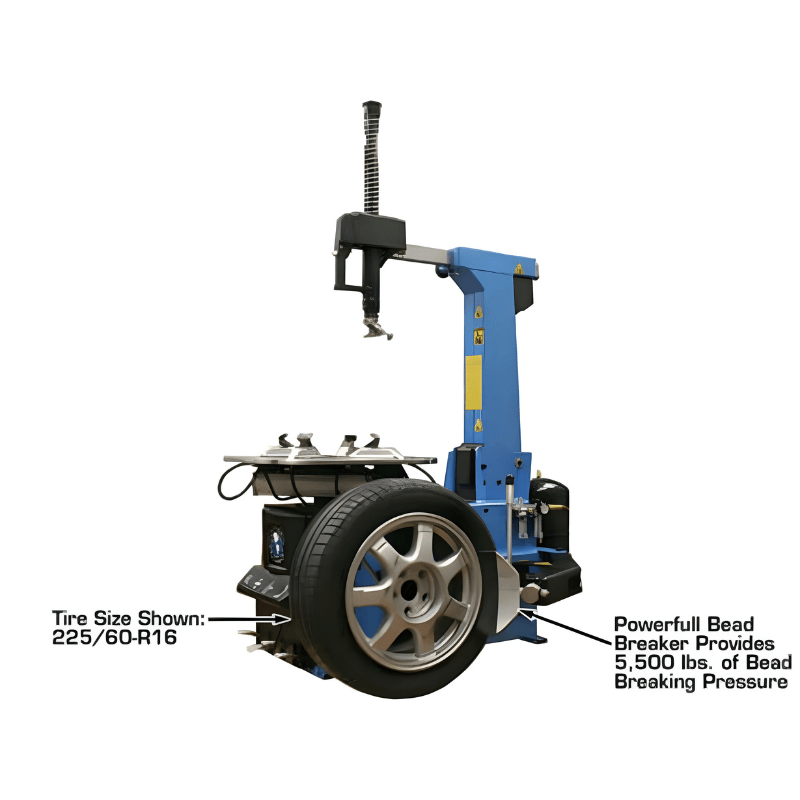

5,500 lb Pneumatic Bead Breaker

The TC755 features a powerful pneumatic bead breaker capable of producing up to 5,500 lbs of force.

The button-controlled bead breaker is operated directly at the blade, allowing the technician to maintain control while working with stubborn or rusted tire beads.

Powerful Electric Turntable

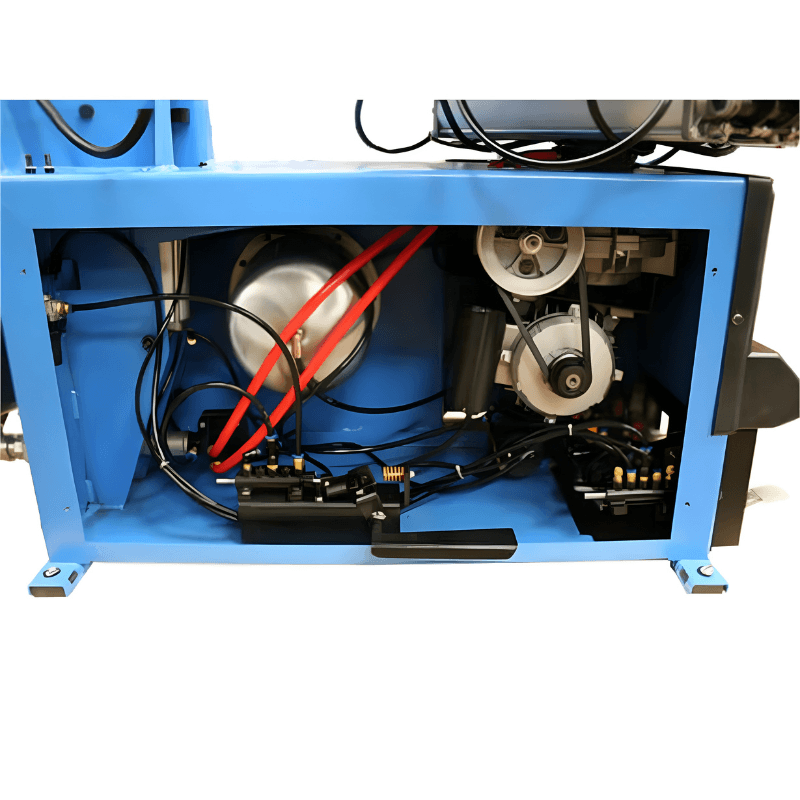

A 1 HP electric motor powers the turntable and produces approximately 885 ft-lbs of rotating torque.

The TC755 operates from a 110V electrical supply, while its pneumatic systems require an external compressed-air source providing approximately 90–110 PSI.

Wheel & Tire Capacity

The TC755 is designed to accommodate a wide variety of wheel and tire combinations.

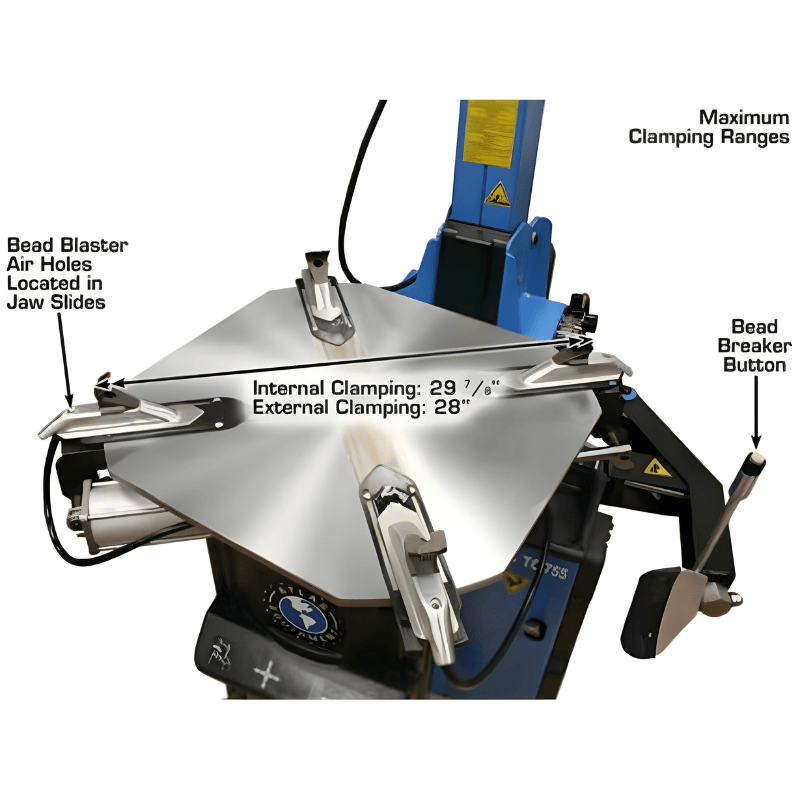

Its three-position external rim-clamping system reaches up to 28 inches, while internal clamping reaches up to approximately 29-7/8 inches.

The machine handles tires up to 47 inches in overall diameter and wheels up to 18 inches wide at the bead breaker.

Key Features

• Professional tilt-back tire changer

• Rim-clamp design

• Foot-operated tilt-back column

• Pneumatic locking mount/demount head

• Extra-large electric turntable

• Air-operated clamping jaws

• Three adjustable jaw positions

• Built-in Beadblaster

• Button-controlled pneumatic bead breaker

• 5,500 lb bead-breaker force

• 1 HP electric turntable motor

• 885 ft-lbs turntable torque

• Handles tires up to 47 inches in diameter

• Handles wheels up to 18 inches wide at the bead breaker

• Compatible with steel, aluminum, and alloy rims

• Metal mount/demount head with metal roller

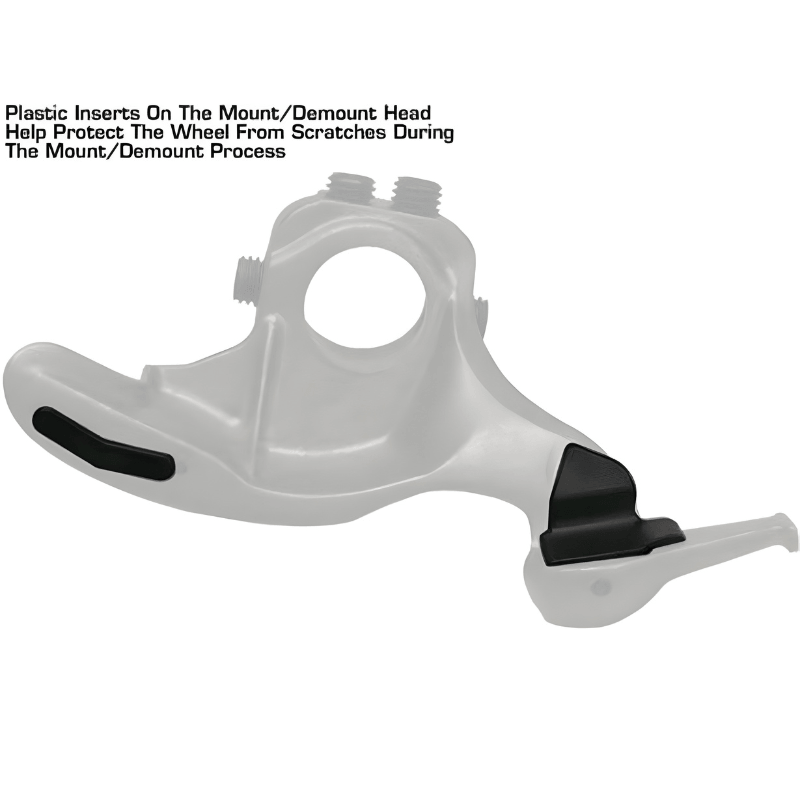

• Replaceable plastic mount/demount head inserts

• Column-mounted inflator box with gauge

• Filter, regulator, and lubricator included

• 110V electrical operation

• 90–110 PSI air requirement

• 1-year parts-only warranty

Product Specifications

• Brand: Atlas Automotive Equipment

• Model: TC755

• Product Type: Tilt-Back Rim-Clamp Tire Changer

• Compatible Rims: Steel, Aluminum & Alloy

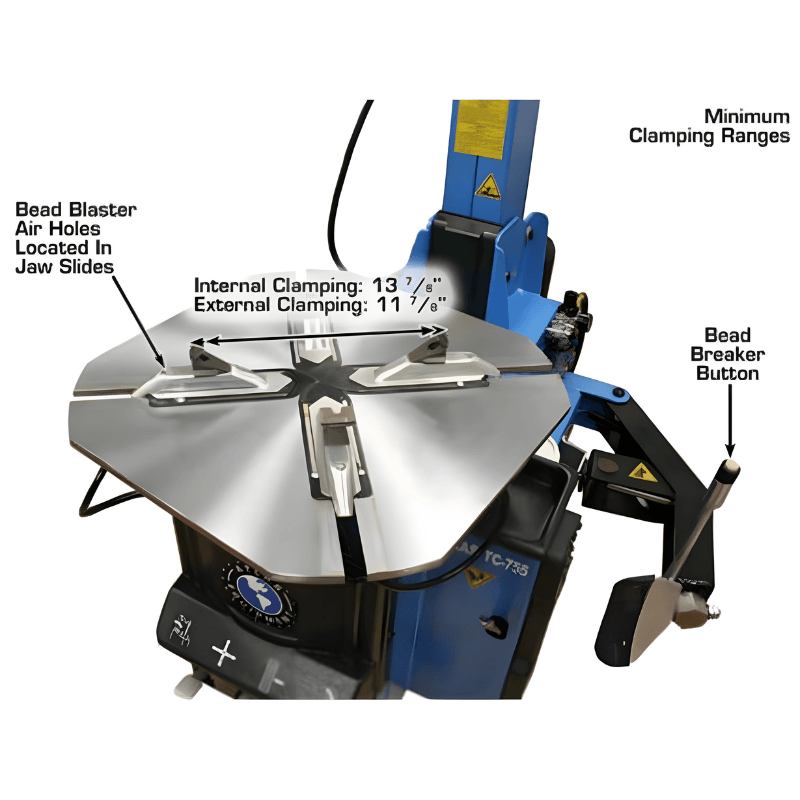

• External Clamping Position 1: 11-7/8 – 26 in.

• External Clamping Position 2: 12-7/8 – 27 in.

• External Clamping Position 3: 13-3/4 – 28 in.

• Internal Clamping Position 1: 13-7/8 – 27-7/8 in.

• Internal Clamping Position 2: 14-5/8 – 28-7/8 in.

• Internal Clamping Position 3: 15-5/8 – 29-7/8 in.

• Maximum Tire Diameter: 47 in.

• Maximum Wheel Width at Bead Breaker: 18 in.

• Table Motor: 1 HP

• Turntable Torque: 885 ft-lbs

• Bead-Breaker Force: 5,500 lbs

• Air Requirement: 90–110 PSI

• Maximum Air Pressure: 140 PSI

• Operating Voltage: 110V

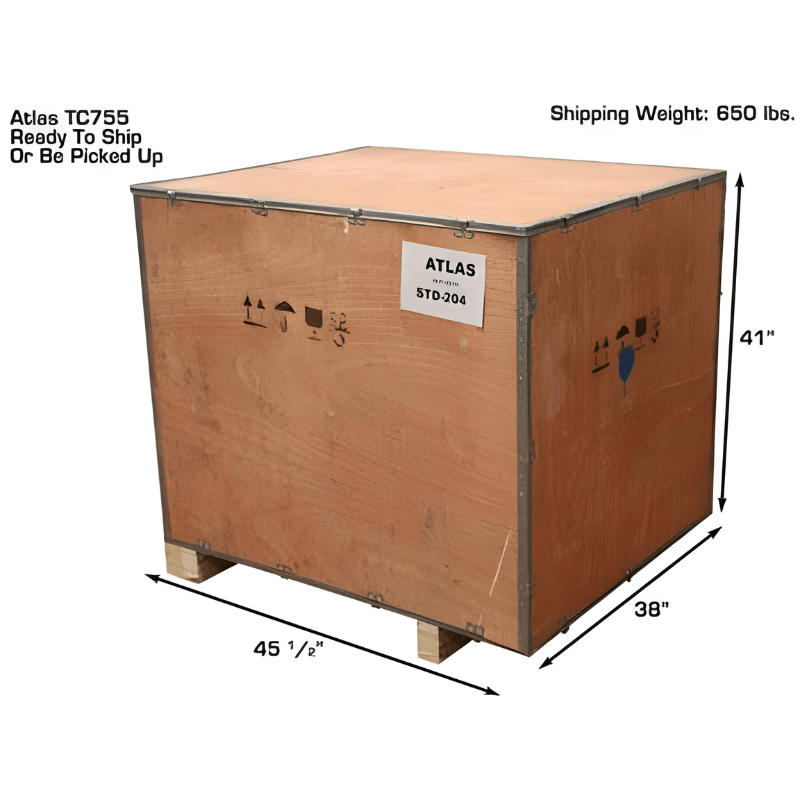

• Shipping Weight: Approx. 650 lbs

• Beadblaster: Included

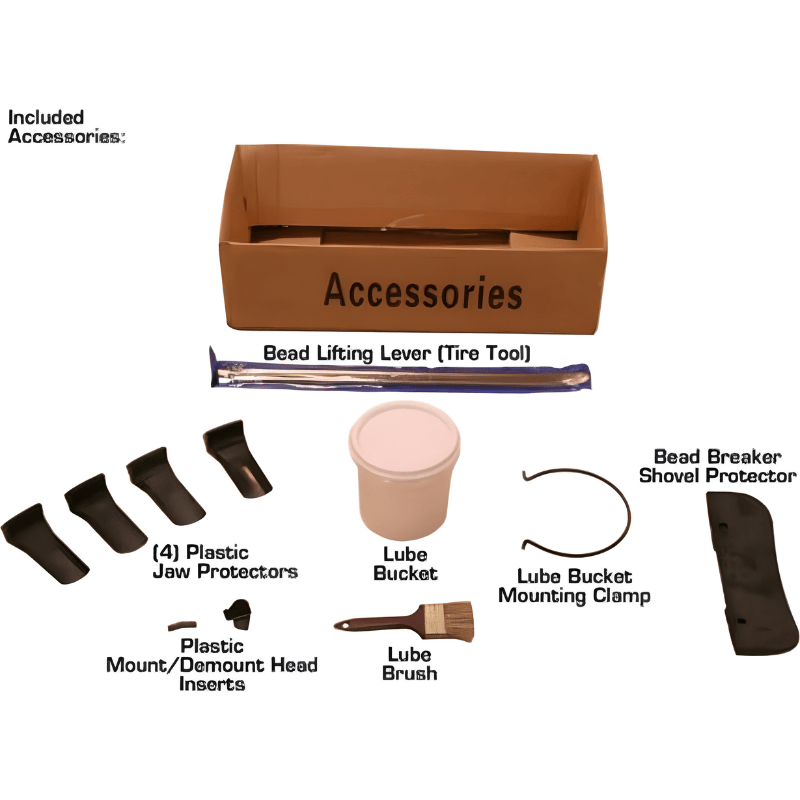

Included Accessories

• Column-Mounted Inflator Box with Gauge

• Filter / Regulator / Lubricator

• 20-Inch Tire Tool

• Lubricant Bucket

• Lubricant Brush

• Large Plastic Jaw Covers

• Plastic Bead-Breaker Shovel Cover

• Replacement Plastic Mount/Demount Head Inserts
