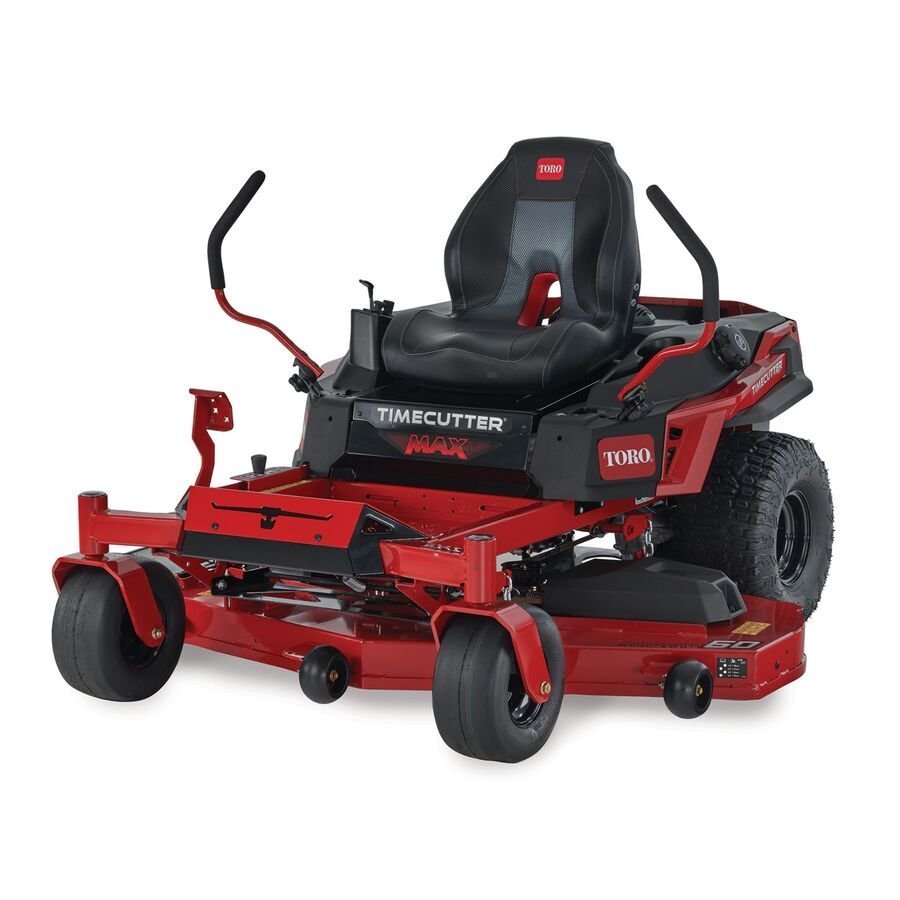

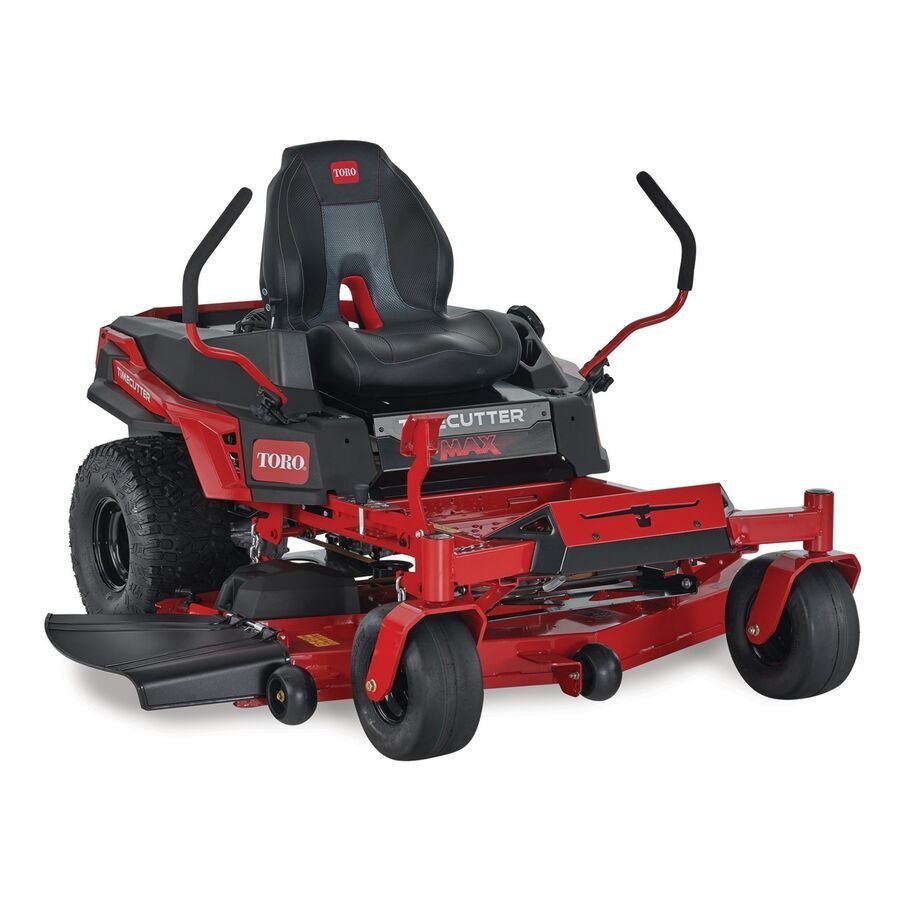

Toro 77601 60″ TimeCutter® Max Zero Turn Mower
SET UP AND PREP FEES MAY APPLY
No matter how you cut it, the Toro TimeCutter MAX arms you with professional performance, rock-solid durability and best-grass-in-the-neighborhood precision. Built with over a century of pro-level engineering, this lawn-dominating machine features a heavy-duty IronForged deck, beefy, traction-happy tires, easy maintenance, and a plush, gaming-style seat to give you the edge over whatever nature throws your way.
Parts Manual
Specifications
| Air Filter | Standard Kawasaki Air Cleaner |
|---|---|
| Anti Scalp Wheels | 3 Standard |
| Armrests | Optional |
| Bagger Capacity | 4.9 bushels |
| Blade Tip Speed | 18,500 ft/min |
| Box Dimensions | |
| CARB Compliant | Not CARB Compliant |
| Carrier Frame | 3 in. x 1.5 in. x 0.120 in. (7.6 cm x 3.8 cm x 0.3 cm) Wall Tubular Steel |
| Caster Tires | 13 in. x 6.5 in. – 6 in. Pneumatic |
| Clutch | Electromagnetic |
| Comfort Platform | Standard Suspension |
| Cooling System | Air Cooled |
| Crankshaft | 1″ (25 mm) w/Steel Protector |
| Cup Holder | Standard |
| Cutter System | Steel Cutting Blade |
| Deck Design | 10-Gauge steel IrongForged® |
| Deck Material | 10 Gauge Steel |
| Deck Size | 60 in |
| Discharge Chute | Side |
| Drive System | HYDRO |
| Drive Tires | 20 in. x 10 in. – 8 in |
| Drive Type | Rear-Wheel Drive |
| Engine | 23 hp Kawasaki FR691V 726cc |
| Engine Brand | Kawasaki |
| Engine Displacement (cc) | 726 cc |
| Engine Horsepower | 23.0 hp |
| Engine Power (kW) | 17.2 kW |
| Foot Operated Height of Cut | Standard |
| Forward Ground/Transport Speed | Up to 7.0 mph |
| Forward Mowing Speed | Up to 7.0 mph |
| Frame | 3 in. x 1.5 in. Steel Tubing |
| Fuel Capacity | 5 gal. |
| Fuel Type | Gasoline |
| Greasable Bearings | Yes |
| Height of Cut | 1.5 – 5.0 in. |
| Hitch Bracket | Standard |
| Hour Meter | Optional |
| Hydraulic Drive | Standard |
| Lighting | Optional |
| Number of Blades | 3 |
| Product Type | TimeCutter Max |
| Product Use | Residential |
| Recommended Oil Type | 10W-30 |
| Roll-Over Protection (ROPS) | Optional |
| Seat | 19″ Gaming Style |
| Spindle Bearings | Maintenance-free |
| Spindle Housing | Cast-Aluminum |
| Start Type | Electric |
| Steering Controls | Twin Lever |
| Steering Dampeners | Standard Dampers |
| Terrain Type | Flat with Obstacles |
| Tires | 13 in. x 6.5 in. Front, 20 in. x11 in. Rear |
| Tow Capacity | Combined machine, user, towed weight may not exceed 1,000 lbs. |
| Transmission | Dual Hydrostatic HG-EZT2200 |
| Washout Port | Standard |
| Weight | 668 lbs |

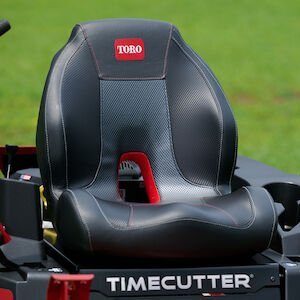

Features Comfort. Game On.If you haven’t sat in one of these, you haven’t felt how luxurious riding mower seats can be. The gaming-style seat gives you big time support exactly where you need it.

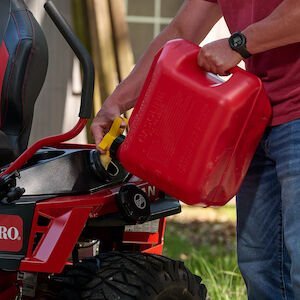

 Better Fill. Fewer Spills.Automotive-style fuel fill means less mess as you top off the huge 5 gallon tank.
 Pro DNACommercial DNA courses through these machines’ veins with the same technology professionals depend on. Get a beautiful, professional-looking lawn.

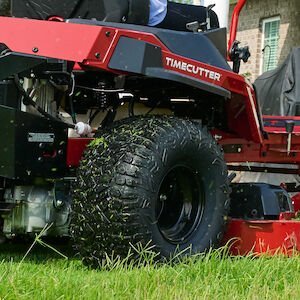

 Shut Down Sprayback.There’s nothing good about getting blasted with filthy backsplash. That’s why spray blocking fenders come standard—to keep tire spray off your engine, and more importantly, you.
|

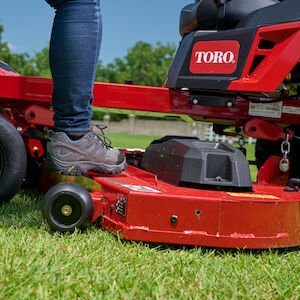

 Sturdy Step-On.The four-point deck hanging system doesn’t flinch under your feet when you get on or off the mower.

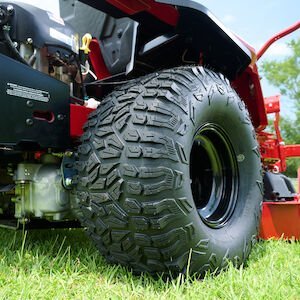

 Traction for Any Terrain.Beefy hybrid-tread rear tires give you maximum traction without tearing up your turf.

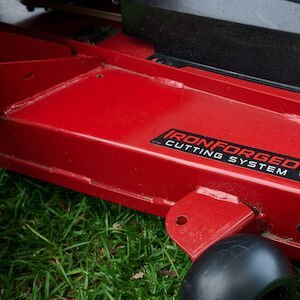

 Turf Tough. Bull Strong.Its heavy duty steel IronForged® Deck doesn’t flinch no matter what you throw its way. With bulletproof material-reinforced belts, a beefy leading edge and huge spindles, this beast is built to last.
|
