The FP8K-DX-XLT 8,000 lb 4-Post Lift is an extra-long, extra-tall deluxe storage lift designed for vehicle storage, maintenance access, restoration projects, and residential garage applications.
With an 8,000 lb lifting capacity, extended runway length, and increased lifting height, the FP8K-DX-XLT provides additional space for accommodating many full-size cars, SUVs, and pickup trucks while also creating valuable vehicle-storage space underneath the raised platform.
Extra Long & Extra Tall Design
The FP8K-DX-XLT is specifically designed with increased length and height compared with standard 8,000 lb storage lifts.
It provides a maximum lifting height of approximately 82-1/4 inches and up to 78 inches of clearance under the tracks, making it suitable for garages where additional vertical clearance is required.
The 180-1/2-inch-long runways provide additional room for vehicles with longer wheelbases, including many full-size trucks and SUVs.
8,000 lb Lifting Capacity
With a rated lifting capacity of 8,000 lbs, the FP8K-DX-XLT can accommodate a wide variety of passenger vehicles.
Its four-post configuration provides a stable platform for vehicle storage and service applications without requiring the vehicle to be lifted by designated frame pickup points.
Cable-Driven Lifting System
The FP8K-DX-XLT uses a cable-driven lifting system engineered to raise the runways evenly.
A single-point manual lock-release system allows the operator to disengage the safety locks from one location when lowering the lift.
Multiple Safety Lock Positions
The lift incorporates 12 adjustable locking positions, allowing the platform to be secured at different working and storage heights.
A slack-cable safety system provides an additional layer of protection by helping secure the lift if abnormal cable slack occurs.
Portable Storage Capability
A polyurethane caster kit is included, allowing the lift to be repositioned within a suitable garage when it is unloaded and configured for movement.
This makes the FP8K-DX-XLT particularly useful for residential garages, restoration shops, and vehicle collectors who want flexibility in how their floor space is used.

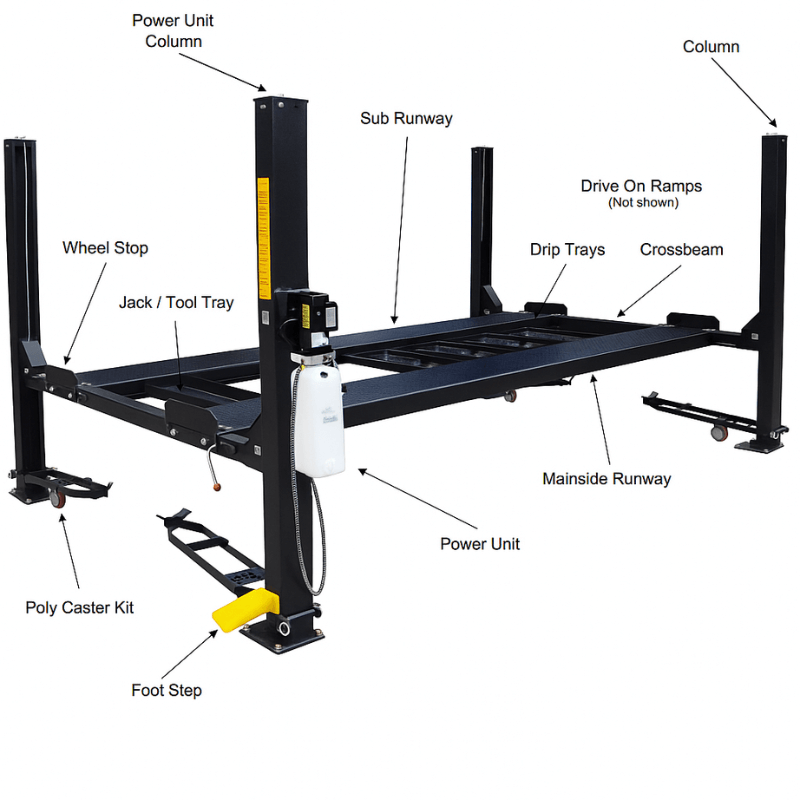

Key Features
8,000 lb maximum lifting capacity
Extra-long and extra-tall design
Ideal for vehicle storage and garage applications
Accommodates many full-size cars, SUVs, and pickup trucks
82-1/4 in. maximum lifting height
Up to 78 in. clearance under the tracks
Extra-long 180-1/2 in. runways
Cable-driven lifting system
Single-point manual lock release
12 adjustable locking positions
Slack-cable safety system
Steel approach ramps
Polyurethane caster kit included
Drip trays included
Steel jack tray included
Designed to fit larger residential garages
115V single-phase electrical operation
Product Specifications
Model: FP8K-DX-XLT
Product Type: Extra Long / Extra Tall 4-Post Storage Lift
Maximum Capacity: 8,000 lbs
Overall Length with Ramp: 222-1/2 in.
Overall Width – Outside Base Plates: 109-3/8 in.
Overall Height: 94 in.
Maximum Lifting Height: 82-1/4 in.
Maximum Clearance Under Track: 78 in.
Width Between Posts: 100-5/16 in.
Runway Length: 180-1/2 in.
Runway Width: 18-5/8 in.
Lifting Speed: Approx. 100 Seconds
Cable Diameter: 3/8 in.
Base Plate Size: 10 × 12 in.
Lock Positions: 12
Electrical Requirement: 115V / 20 Amp / Single Phase
Shipping Weight: Approx. 1,800 lbs
Lift System: Cable Driven
Lock Release: Single-Point Manual
Included Equipment
Steel Approach Ramps
Polyurethane Caster Kit
Drip Trays
Steel Jack Tray
