Description

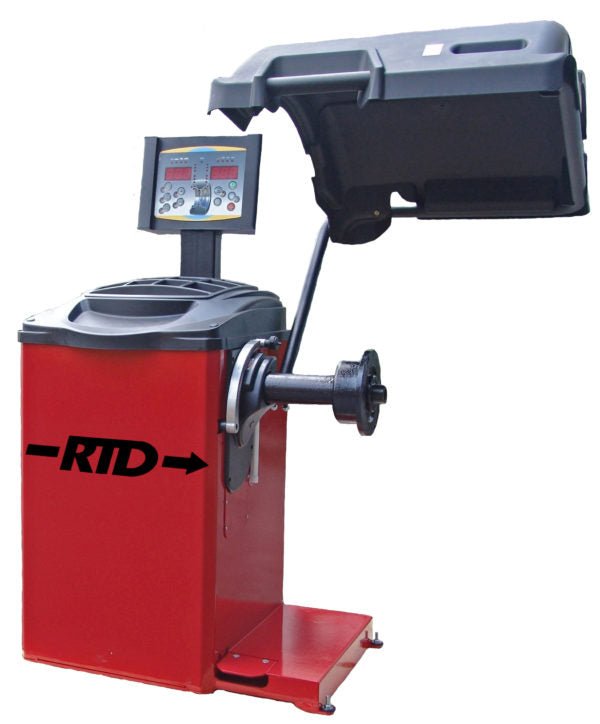

RTDCB66WB Wheel Balancer

The Race Tools Direct CB66WB Self Calibrating Digital Wheel Balancer is an accurate and reliable wheel balancing system designed to handle large rims and tires.

• Fits rim size up to 28″ in diameter and overall tire diameters up to 44″.

A 40mm balancing shaft provides incredible durability for convenient and precise wheel weight applications. While the exclusive Laser and Light feature illuminates the inside of the wheel at the unbalanced weight position.

The RTDCB66WB also comes standard with Multi-Mode Balancing options, while allowing the user to choose between 5 Standard and 2 ALU Smart balancing configurations.

Racer Recommendation:

The RTDCB66WB adds the following features vs the RTD953WB:

• Larger tire diameter capacity 44″ vs 39″
• Larger rim diameter capacity 28″ vs 24″
• Additional weight balancing modes
• Addition of Exclusive Laser Indicator- easily see the exact spot to place weights
• Light for illuminating the wheel to easily see your work area
• Automatic measurement wand-automatically enter measurement specs instead of manual entry
• Can be outfitted with motorcycle adapter kit (optional add on)
• Addition of Foot Pedal Braking System – easily hold wheel in place while applying weights

Race Tools Direct CB66WB Self Calibrating Digital Wheel Balancer Features and Benefits:

• Large Capacity – Will handle up to 44″ tall tires
• User Friendly Operation – LED, touch-panel Keypad with easy to read icons assisting operators utilizing all balancing functions.
• Large Rim Diameter Balancing – able to balance up to 28” Rim diameter and 44” overall Wheel Diameter.
• Multi-Mode Vehicle Balancing – standard with SUV, Car & Motorcycle ( motorcycle requires extra adapter kit sold separately) balancing modes.
• Low-RPM Operation – at 140 RPM, the balancer’s life is further extended for sensitive electronics and moving components, all while providing highly accurate wheel balancing.
• Ease-Of-Use – with manual measurement input for distance and diameter with 5 ALU Standard modes and 2 ALU Smart modes.
• Exclusive Laser Indicator – lights up automatically at the unbalance weight position under ALUS mode in the 6 o’clock wheel position.
• Integrated Measurement Acquisition Wand – allows for ease of acquiring measurement data with a retractable, stylish measuring tool, integrated into the machine.
• Light Indicator – illuminates inside of wheel automatically at the unbalanced weight position, for improved wheel weight applications.
• Foot Pedal Braking System – conveniently secures the wheel in the unbalanced position to accurately apply balance wheel weights.
• Extra Long, Heavy Duty Balancing Shaft – the 12″ long, 40mm diameter balancing shaft accommodates wide range of wheels, including unique aftermarket wheels of different sizes and shapes.
• Speed-Nut Mounting – the Speed-Nut allows for quick and efficient wheel mounting, easily securing the wheel to the spindle with convenient lead-in screw.
• Multi Pocket Wheel Weight Shelf – 14 articulated pockets, over 1.5″ deep, allows plenty of storage for weights and tooling.
• Large Wheel Shroud – the large 38” wheel hood prevents debris from flying off the tire while in use.
• Power Saving Mode – automatically puts machine in stand-by mode after 5 minutes of non-usage.

Race Tools Direct CB66WB Self Calibrating Digital Wheel Balancer Included Accessories:

• 3 Cone Sets –
  • Small
  • Medium
  • Large
  • For wheels with large center hubs such as those on heavy duty trucks you will also need the Large Truck Adapter Kit which is available separately.
• 50g Weight
• Weight Hammer as well as Application Tool
• Wheel Caliper
• Clamp Bowl as well as Bowl Edge
• Speed-Nut Assembly
• Large Measurement Indicator

Race Tools Direct CB66WB Self Calibrating Digital Wheel Balancer Specifications:

Warranty:

1 year limited warranty; parts only material and workmanship 90 days on wear items.
