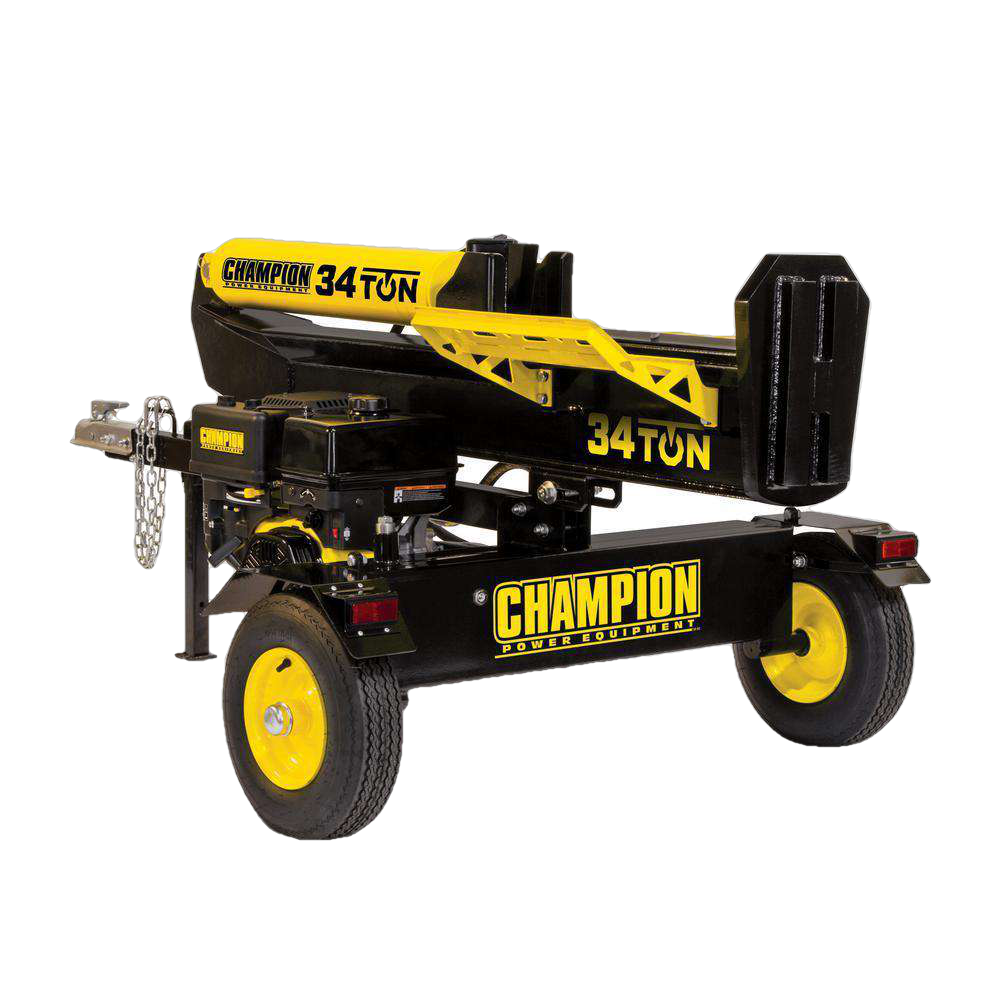

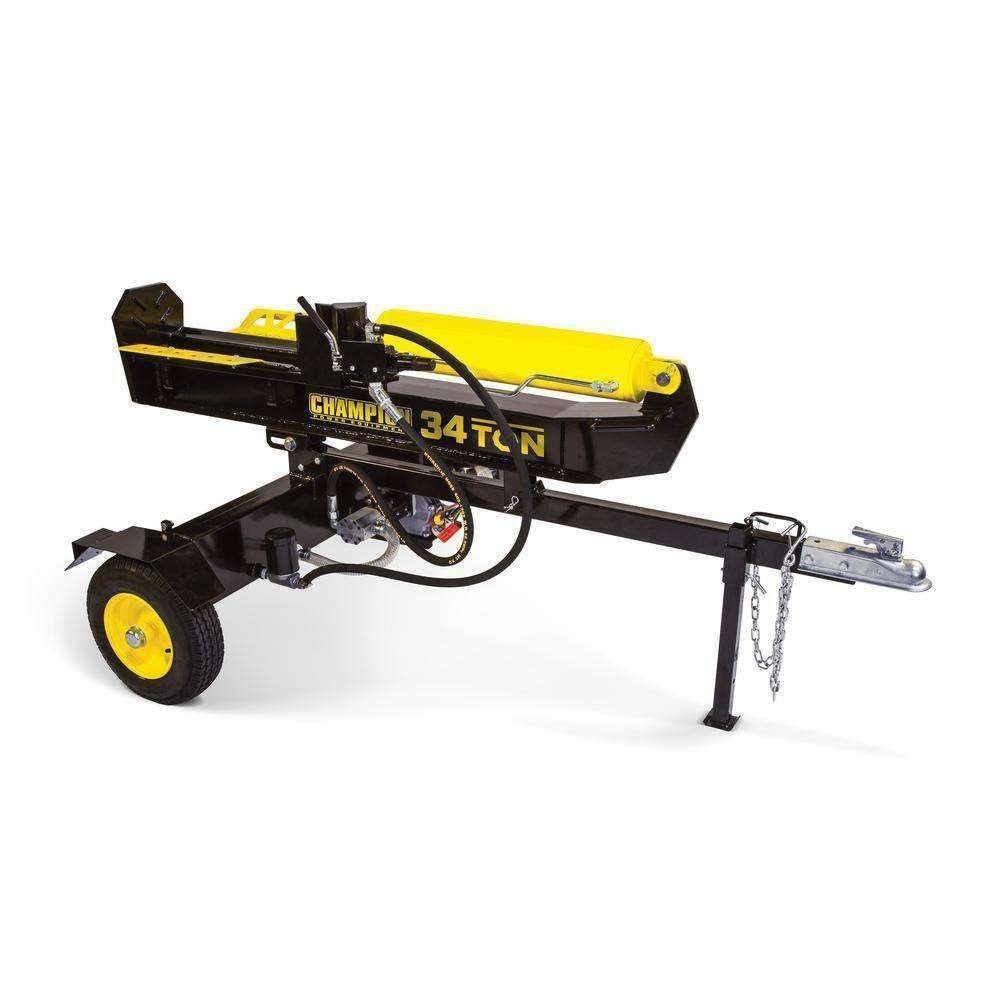

Champion 34 Ton Log Splitter 338cc – Horizontal/Vertical Gas Powered

The Champion 34–35 Ton Gas Log Splitter is engineered for extreme power and efficiency, making it ideal for heavy-duty wood splitting tasks. Powered by a robust 338cc (approx. 11HP) engine, this machine delivers exceptional splitting force to handle even the toughest hardwood logs with ease.

Designed for versatility, the splitter quickly converts between horizontal and vertical operation, allowing you to work comfortably with logs of all sizes while minimizing strain. Its fast cycle time, durable build, and towable design make it a reliable choice for both residential and professional use.

Key Features & Benefits

High-Powered Performance

• 34–35 ton splitting force for demanding workloads
• 338cc Champion engine with cast iron sleeve for durability
• Low oil shut-off protection for added engine safety

Efficient Operation

• Fast 16–20 second cycle time for increased productivity
• Auto-return valve reduces manual effort and speeds up workflow
• 2-stage hydraulic pump (13 GPM) for consistent power delivery

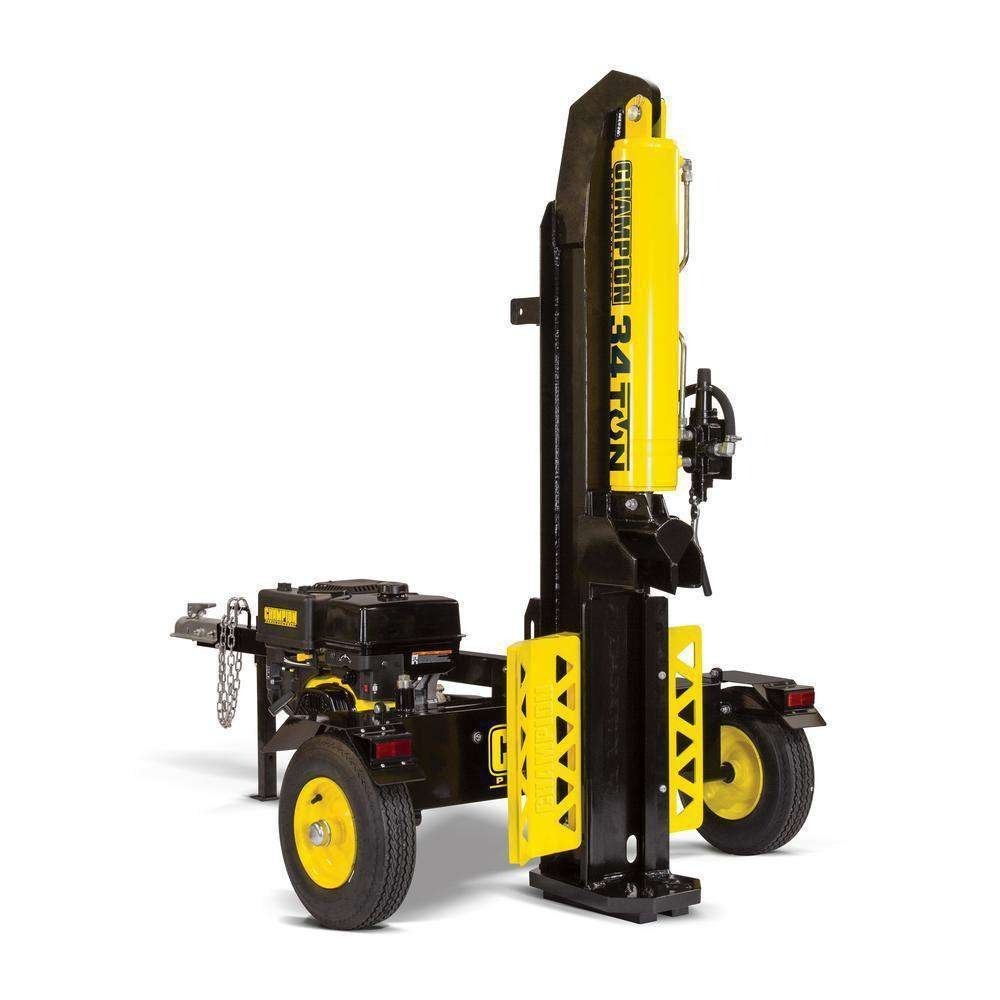

Horizontal & Vertical Functionality

• Easily switch positions by releasing a pin and rotating the beam
• Ideal for handling both small and large logs without heavy lifting

Heavy-Duty Construction

• Durable steel frame designed for long-term use

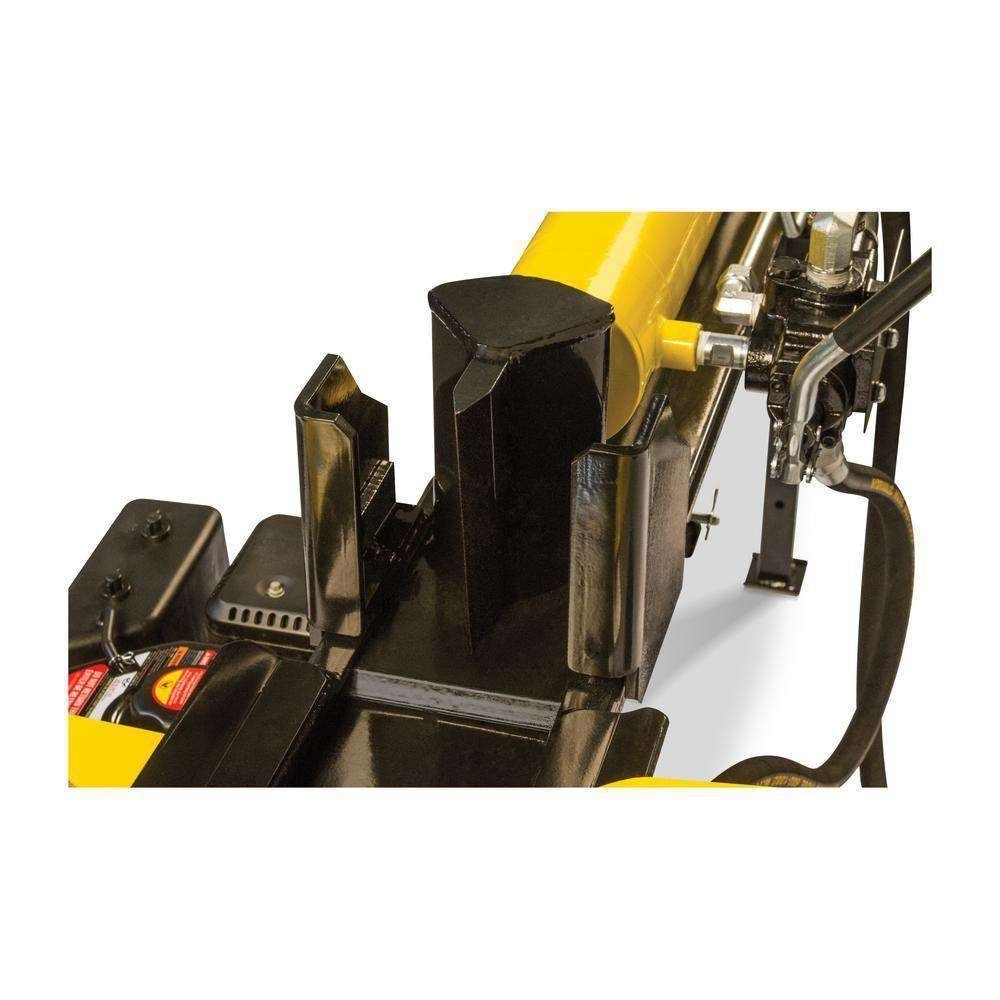

• 7-inch sharpenable wedge for clean, efficient splits
• Includes log cradles and log dislodger for convenience

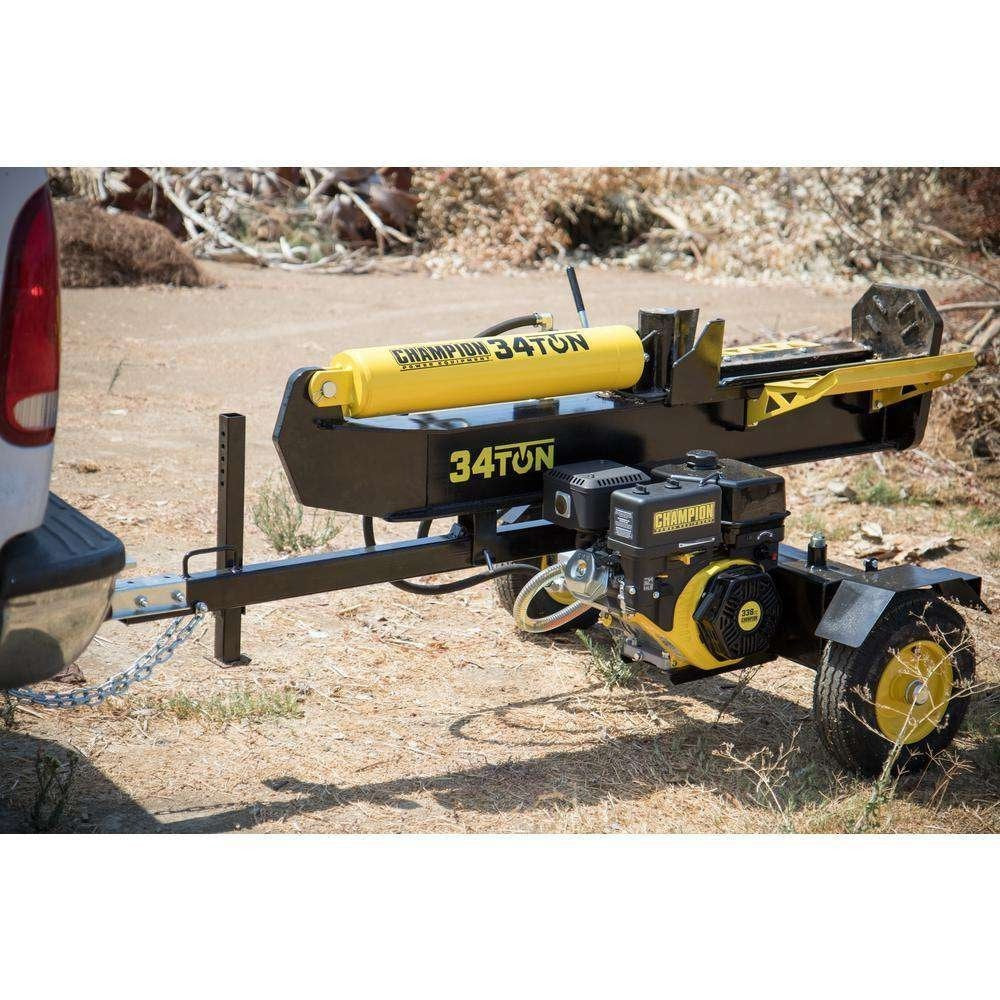

Towable Design

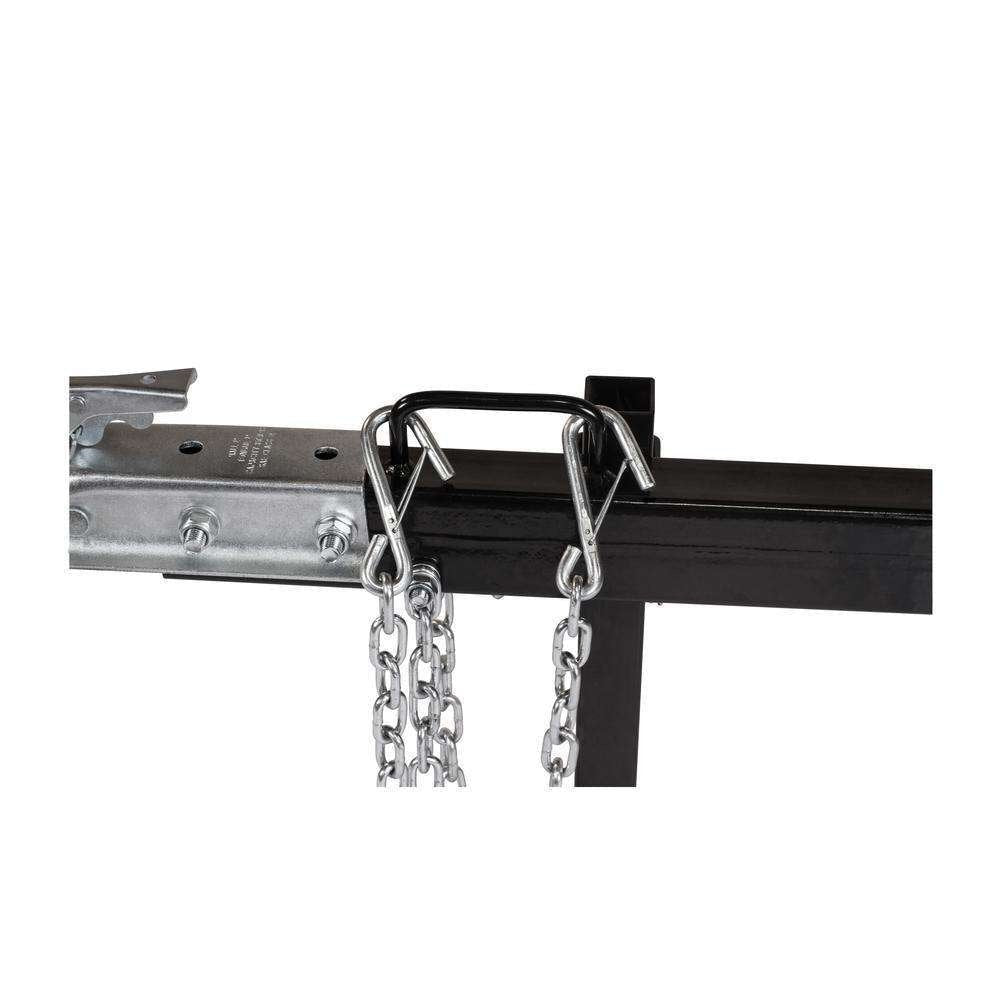

• Equipped with a full tow package
• 2-inch coupler and safety chains for secure transport
• High-speed DOT-approved tires for road towing

Specifications

• Engine: 338cc Champion Gas Engine (Approx. 11HP)
• Splitting Force: 34–35 Ton (Up to 70,000 lbs)
• Cycle Time: 16–20 Seconds (Approx.)
• Operating Positions: Horizontal / Vertical
• Log Capacity: Up to 24 inches

Hydraulic System

• Pump: 2-Stage (13 GPM)
• Hydraulic Capacity: 9 Gallons
• Cylinder Size: 4.7" x 23"
• Filter: Included

Dimensions & Build

• Operating Size: 86" x 41" x 47"
• Crate Size: 55" x 27" x 22"
• Weight: 617 lbs
• Wheels & Tires: 4.80 x 8 High-Speed Tires

Additional Features

• Log cradles included
• Log dislodger included
• Detent control valve with auto return
• Electric start (optional/varies by model)

Assembly & Delivery Notes

• Unit is partially assembled and requires final setup
• Delivered via freight truck; unloading assistance may be limited
• Lift gate service is recommended for easier unloading

Warranty

• 4-Year Limited Consumer Warranty
