- A strong 24 HP Kohler® engine delivers reliable power to tackle your yard
- 50-in. heavy-duty fabricated AeroForce™ deck with FastAttach® cutting system that has been tested and proven to deliver a best-in-class cut, meaning fewer clumps and stragglers, finer clippings and increased evenness
- Tuff Torq Hydrostatic transmission, no shifting, just push the pedal and go
Engine:
- Engine Brand Kohler®
- Engine Model 7000 Series HD
- Engine Model Number KT735
- Engine Displacement 725cc
- Engine Output 24HP
- Starter Type Electric
- Fuel Tank Capacity 3.0 gal. US (11.36 L)
- Cylinders Twin
- Engine Start Ignition Key
- Engine Oil Capacity 2.0 qts. US (1.89 L)
- Lubrication Fully pressurized
- Charging System 12 amp regulated
- Fuel Gauge No
- Governor Mechanical
- Choke Choke-a-matic
- Air Filter Single element
- Oil Filter Yes
- Fuel Delivery Carburetor.
Battery:
- Battery 210 CCA
- Battery Type AGM (Absorbent Glass Mat)
- Battery Voltage 12V.
Drive System:
- Transmission Tuff Torq® K46
- Forward Speed 5.5 MPH / 8.6 km/h
- Reverse Speed 3 MPH / 4.8 km/h
- Rear Axle 1″
- Drive System Hydrostatic
- Transmission Control Foot Pedal
- Transmission Housing Cast aluminum
- Rear Differential Lock No.
Cutting Deck:
- Deck Cutting Width 50 in
- Deck Wash Yes
- Deck Material 11-gauge steel
- Deck Engagement (PTO) Electric
- Deck Construction Fabricated
- Blade(s) 3
- Deck Lift Manual
- Cutting Height Range 1″ – 4″
- Anti-Scalping 4 gauge wheels
- Deck Positions 12.
Warranty:
- Warranty 3-year unlimited hours
- Frame Warranty 5-year limited
- Front Axle Warranty 5-year unlimited hours
- Deck Shell Warranty Lifetime limited
- Commercial Warranty No.
Chassis:
- Frame Robotically welded
- Turning Radius 16″
- Bumper Brush Guard
- Rear Tow Hitch Yes
- Corrosion Protection Yes
- Front Pivot Bar Cast iron.
Controls:
- Cruise Control Yes
- Brakes Disc.
Comfort:
- Seat Type 15″ High-back
- Armrests Yes
- Seat Adjustment Lever
- Floor Mats Rubber.
Wheels:
- Bearing Type Ball Bearing
- Rear Tires 22″x9.5″-12″
- Front Tires 16″x 6.5″-8″
- Tire Tread Turf Master.
Additional Specifications:

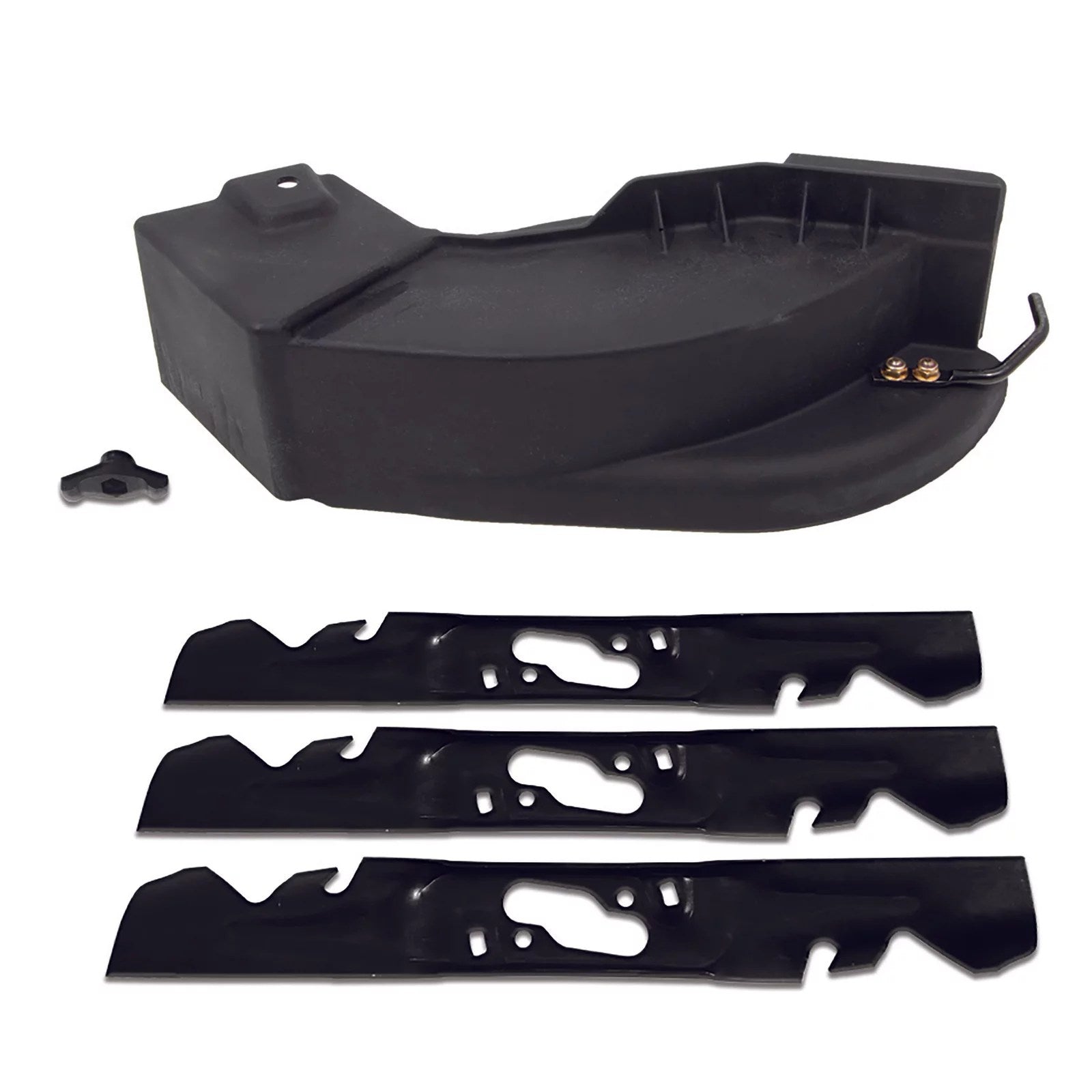

- Mulch Kit Available separately
- Headlight(s) Dual LED
- Cup Holder Yes
- Operator Presence System Yes
Model Number 13A5A2TLA10.
Dimensions
| Assembled Depth (in.) | 72 in | Assembled Height (in.) | 35.5 in |
|---|---|---|---|
| Assembled Width (in.) | 57 in | Cutting Width (in.) | 50 inches |
| Front Wheel Size (in.) | 15 | Mower Deck Width (in.) | 50 in |
| Rear Wheel Size (in.) | 20 | Turning Radius (in.) | 16 |
Details
| Assembly Required | Yes | CA (CARB) Compliant | CARB Compliant |
|---|---|---|---|
| Commercial / Residential | Residential | Cutting Options | Side-Discharge |
| Deck Material | 11 Gauge Steel | Deck Type | Fabricated |
| Drive Type | Rear-wheel Drive | Engine Displacement (cc) | 725 |
| Engine Make | Kohler Engine | Engine Torque (ft.-lb.) | 0 |
| Fuel Tank Capacity (gallons) | 3 gal | Horsepower (HP) | 24 hp |
| Included with Riding Mowers | Battery(s),Engine Oil | Lawn Mower Type | Front Motor Riding |
| Maximum Cutting Height (in.) | 4 | Maximum Forward Speed (mph) | 5.5 |
| Maximum Reverse Speed (mph) | 2.5 | Minimum Cutting Height (in.) | 1.5 |
| Mower Size | Large | Number of Blades | 3 |
| Number of Blades | 3 blades | Number of Cylinders | V-Twin |
| Number of Deck Wheels | 4 | Oil Capacity (oz.) | 64 |
| Power Type | Gas | Product Weight (lb.) | 720 lb |
| Recommended Oil Type | 10W-30 | Refurbished | No |
| Returnable | 30-Day | Riding Mower Features | Adjustable Cutting Height, Adjustable Speed, Assembly Required, Battery level indicator, Built-in Hitch, Cruise Control, Cup Holder, Deck cleanout, Headlights, Hour Meter, Keyed start, Pneumatic Tires, Residential, Reverse Mowing, Rust resistant deck, Single-lever height adjustment, Translucent Fuel Tank |
| Size of Yard | 2 – 4 Acres | Start Type | Electric |
| Terrain Type | Flat with Obstacles, Hilly | Transmission Type | Hydrostatic |
Warranty / Certifications
| Certifications and Listings | CARB Compliant | Manufacturer Warranty | 3-Year Limited Warranty |
|---|
